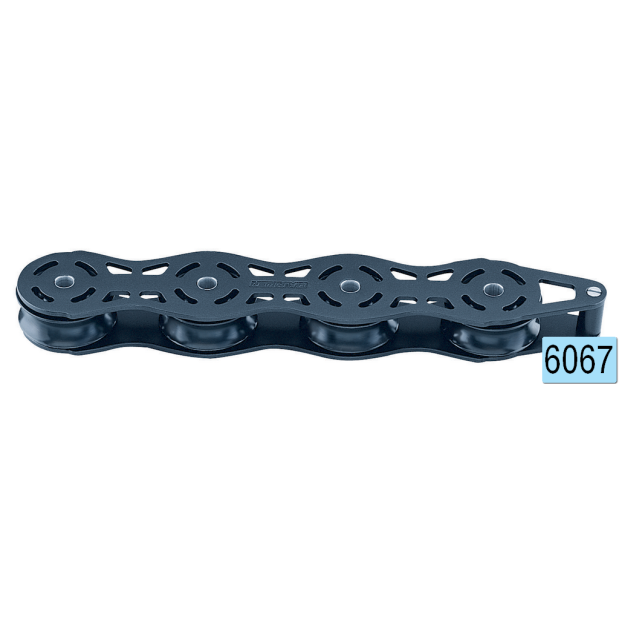

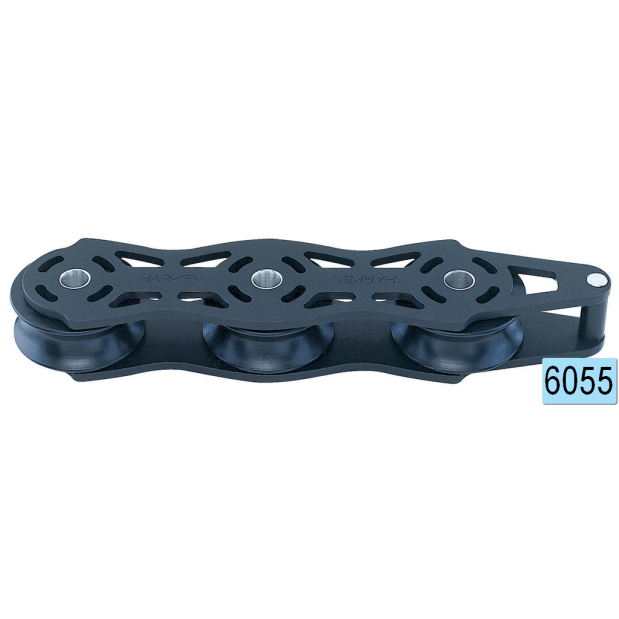

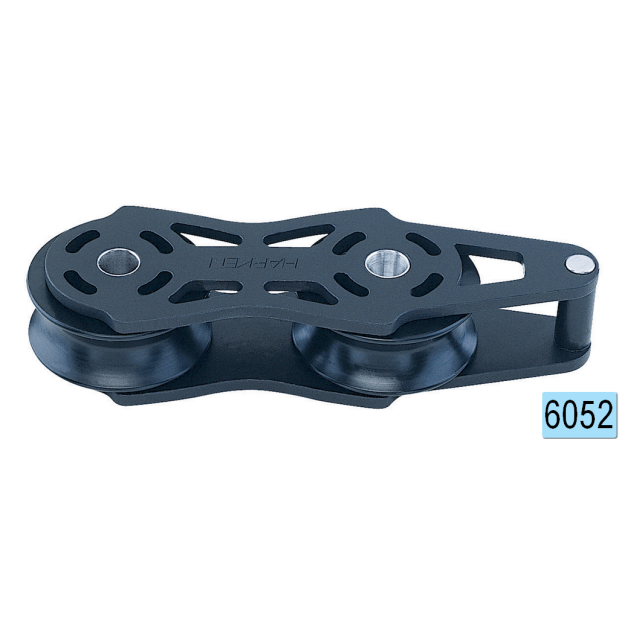

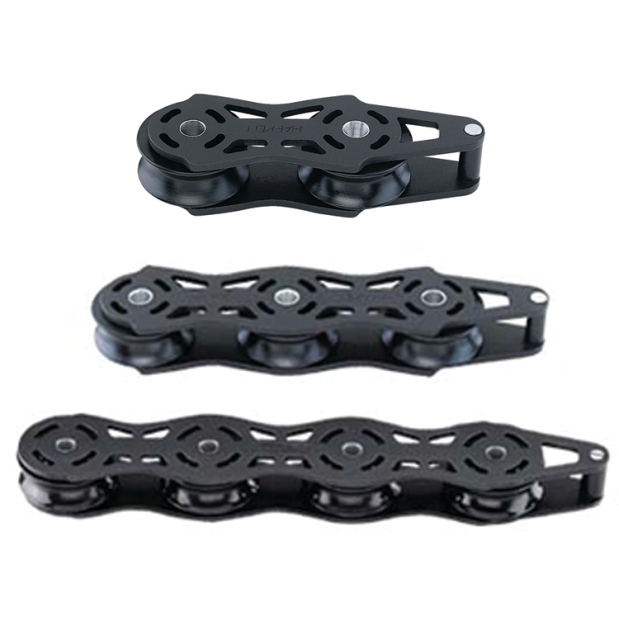

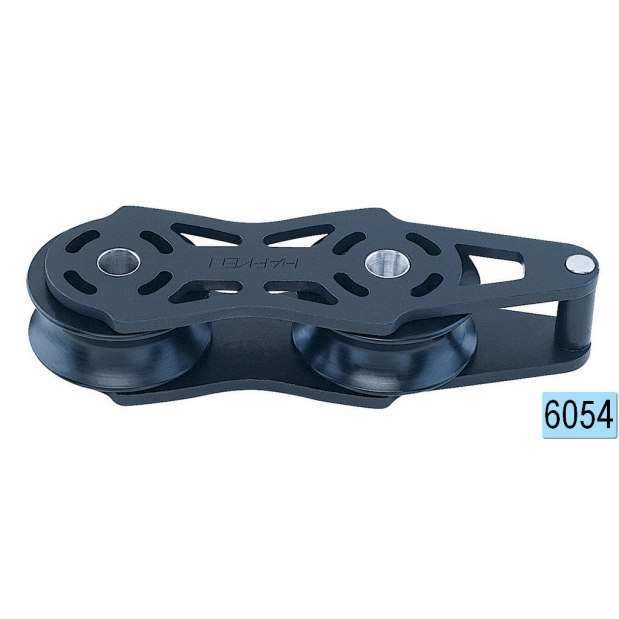

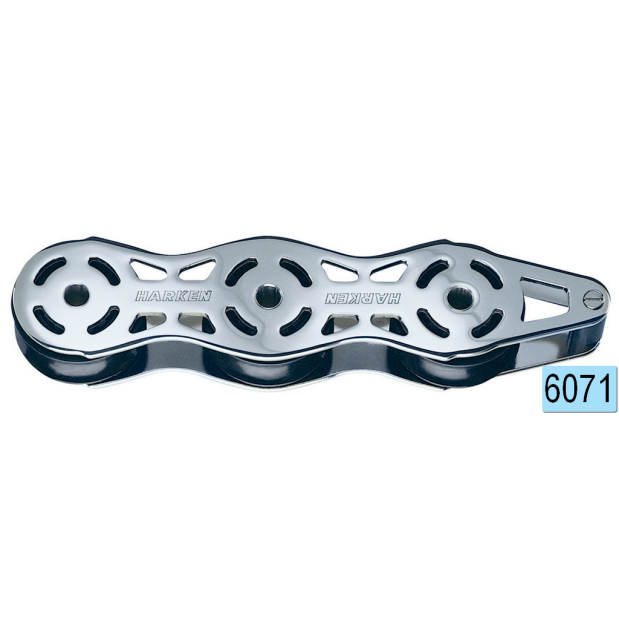

Their unique, asymmetrical design keeps these organizers shorter than others with comparable strength. Sheave spacing is modular, so switching to another size of these organizers allows re-use of previous mounting holes. The modular fastener spacing allows these organziers to be stacked for the ultimate in deck space savings.
• Ideal for high static loads from halyards and reef lines

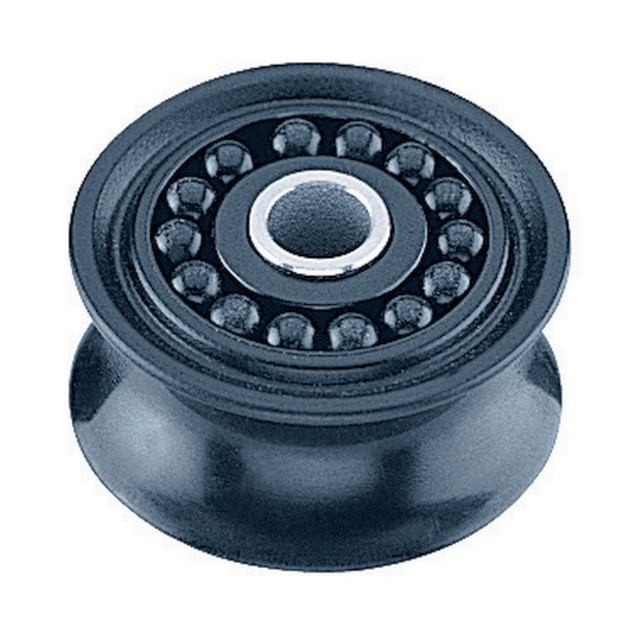

• Carbon black Delrin® sheaves turn on stainless steel spacers
• Contained sideload ball bearings allow sheaves to spin freely
• Fasteners are either 5/16" or 3/8"
• SWL shown is for total load on the organizer
• SWL per sheave: 1-1/2" - 1,250 lbs.; 2-1/4" - 2,500 lbs.
