Allisons Transmission Split Shaft Couplings, 5-3/4" Flange x 1-1/2" Shaft
All things being equal, split couplings are easier to install and remove than solid couplings.
• Order a "No Bore" coupling for machining a custom shaft size
• "No Bore" split couplings come with a 3/4" to 1-1/4" pilot bore

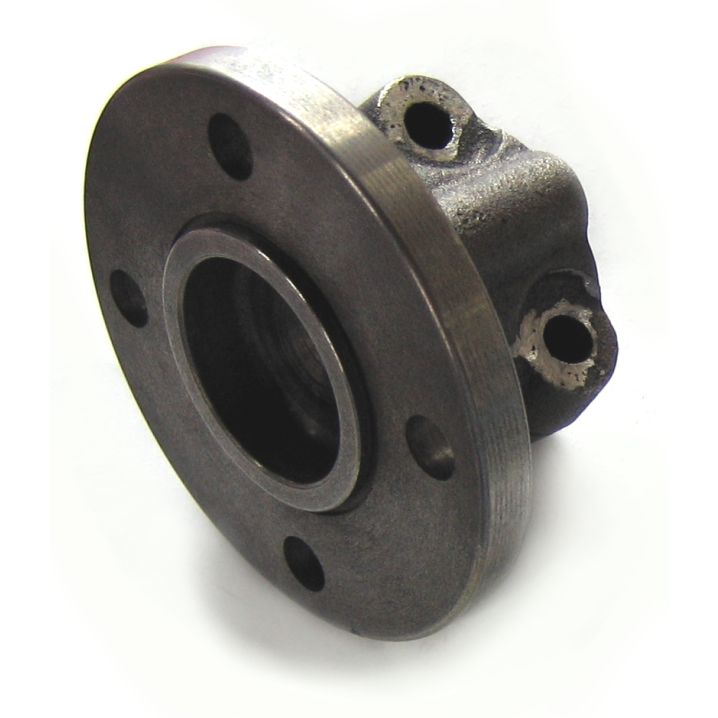

• Shown with a male (M Type) pilot
• In the table below, these are the codes for transmission types: A=Allison, B/W=Borg Warner, C=Capitol, H=Hurth, N=Newage, P=Paragon, TD=Twin Disc, VP=Volvo Penta, Y=Yanmar, ZF=ZF
• Shaft Range indicated is the available range for that model of coupling
• Note: in the table, the easiest way to locate the coupling you need is to start with the flange diameter, then shaft size and pilot, etc.
Selected | SKU # | MFG # | Availability | Size - Flange | Size - Shaft | Price | Quantity | |
---|---|---|---|---|---|---|---|---|
SKU #: 156051 | MFG #: 5057511500 | Special Order Only | 5-3/4" | 1-1/2" | $289.22 | |||
SKU #: 143897 | MFG #: 5057511750 | Special Order Only | 5-3/4" | 1-3/4" | $319.36 | |||
SKU #: 143898 | MFG #: 5057512000 | Special Order Only | 5-3/4" | 2" | $289.22 | |||
SKU #: 143899 | MFG #: 505751NOBO | Special Order Only | 5-3/4" | No Bore | $319.36 | |||
SKU #: 156056 | MFG #: 509001NOBO | Special Order Only | 9" | No Bore | $1,069.78 |
