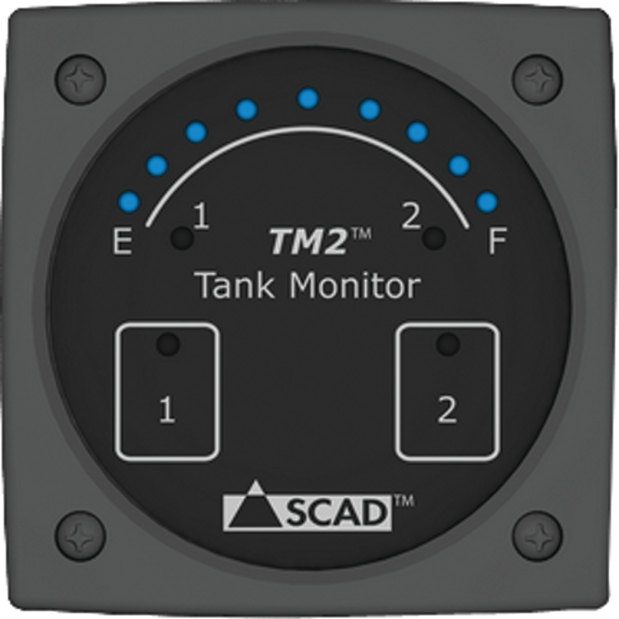

TM2 Tank Monitor 12/24V DC

The SCAD TM2 is easy to install and cost effective solution for monitoring the liquid level in up to two tanks up to 30 inches tall by simply touching a pad. The system uses SCAD's external stick-on level sensors (not included) that cannot get fouled. The monitor automatically checks and alerts when liquid levels are critical and provides external alert power.
• Monitor two tanks: water, grey water or holding tank level
• Easy to install sensors adhere to the outside of plastic and fiberglass tanks and cannot foul (for water and waste)
• Touch controls. No mechanical button to fail
• Compatible with fuel float sensors
• Compact surface mount size (only 1/2" hole required for wires)
• Continuous read function provides handsfree monitoring
• Optional internal sensor available for metal tanks
• Visual alarm that is user selectable on for empty or full
• Extermal alarm control wire
• Accomodates all tank shapes

Benefits
• Easy to install, easy to operate, reliable and cost effective solution for monitoring tank levels
• External sensor eliminates fouling
• Tank level can be continuously viewed while filling or emptying a tank
• Powers external devices during alert conditions
• Small surface mount foot print saves space
• Can be used with a variety of sensors

Specifications
• Power: 12/24V DC
• Size: 2.2" x 2.2" x 0.3" (56 x 56 x 7.6 mm)
• Sensor Type: SCAD external sensor for water and waste provided; SCAD internal sensor avaialbe for metal tanks; Monitor is compatible with 240 to 33 Ohm and 10 to 180 Ohm float sensors for fuel
• Alarm: Visual alarm on empty or full, or no alarm. Power wire that provides 1 Amp at battery voltage can be set to energize on alarm condition.
