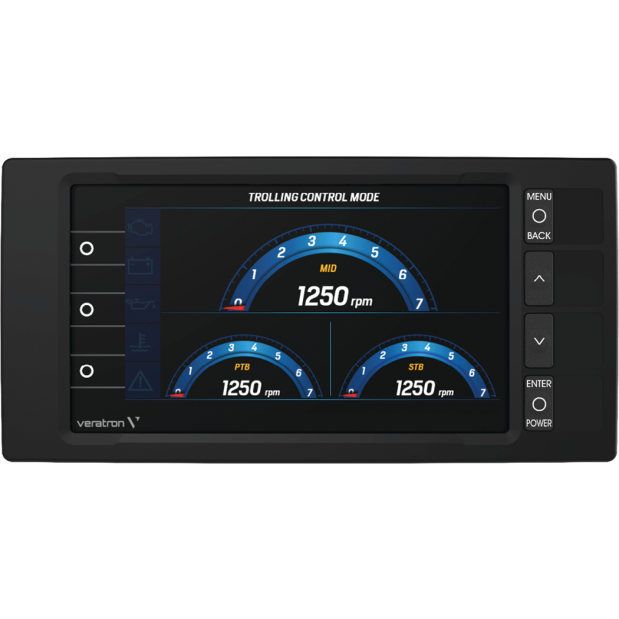

The OceanLink® 7" multifunction TFT Display features a full 24 bit / 16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display receives and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analogue sensors directly connected to the display. Users can customize up to 10 different data pages with single, double, treble or quad grid layouts.
The Display can be linked via NMEA 2000® with other OceanLink® gauges, displays or NavControls using the unique VDO Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.
• Resolution: 800 x 480 (WVGA)
• Nominal Voltage: 12 / 24 V
• Touch screen function
• Optical bonded mineral glass lens
• Front & rear side protection rating IPX76
• 1x NMEA 2000® connector
• 2x J1939
• 6x Analog input
• 2x Frequency input
• 2x 4-20 mA
• 3x Digital input or 0-5 V
• 2x Alarm output
• 2x Video input
• 2x EasyLink data output
• 2x Programmable alarm output 500 mA
• Operating temperature range -20 °C / +70 °C
