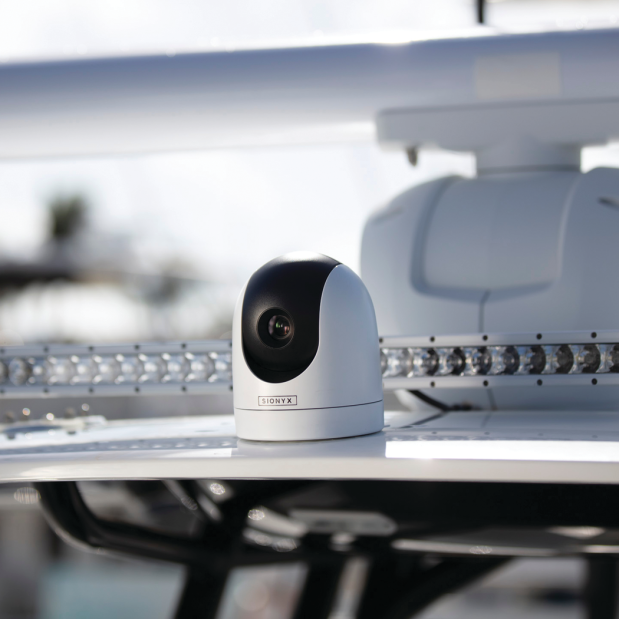

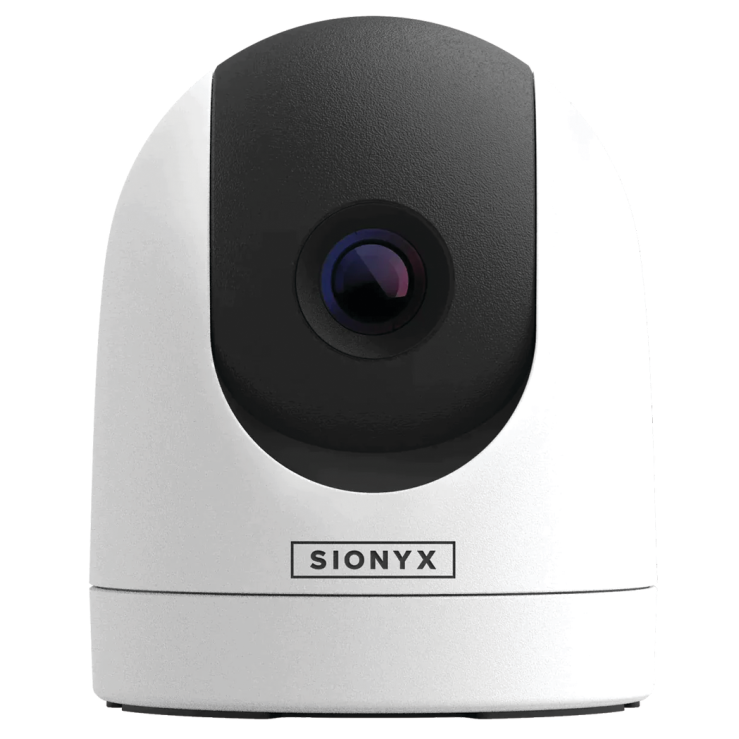

Nightwave Marine Night Vision Camera

Nightwave is an ultra low-light marine navigational camera built around SIONYX’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras – navigating safely, avoiding collisions, and maximizing time on the water. IP67-rated, it’s built to operate in the toughest marine environments.

Nightwave’s flexible mounting and video streaming setups allow both seamless integration with major brand MFDs and the option to view live video on your mobile device – so you can navigate confidently in the dark from any vessel with clear color digital night vision.

CAPABLE - <1 mlx moonless starlight sensitivity allows you to see well beyond human eyesight.
AWARE - Stable 44º field of view increases situational awareness to spot unexpected obstacles, debris, markers, vessels, and more.
RUGGED - IP67 rating protects against water, sand, salt, and dust. Dry nitrogen purged to prevent lens fogging. Safely use Nightwave in inclement weather conditions.

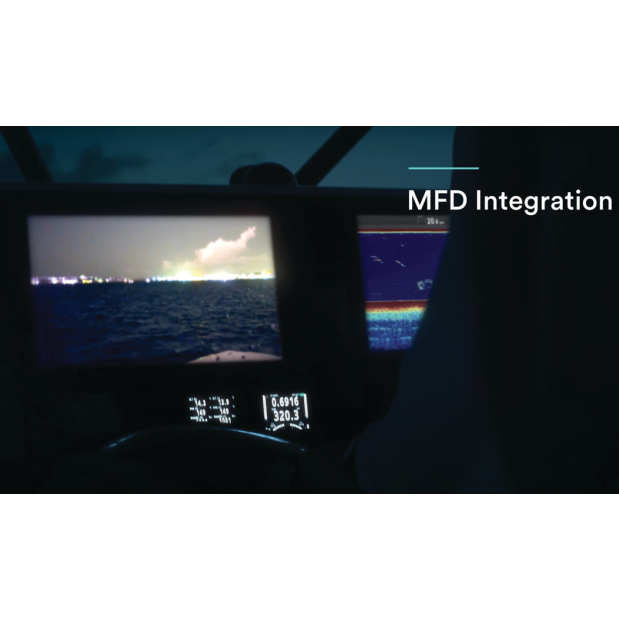

CONNECTED - Flexible installation options allow seamless integration with major brand MFDs and WiFi video streaming to the SIONYX mobile app.

• Moonless starlight night vision is <1 millilux
• Rugged, water resistant, and IP67 rated
• 44° field of view
• Manual vertical tilt adjustment
• NTSC/PAL analog video connection (SMA, BNC, or RCA)
• 12V DC

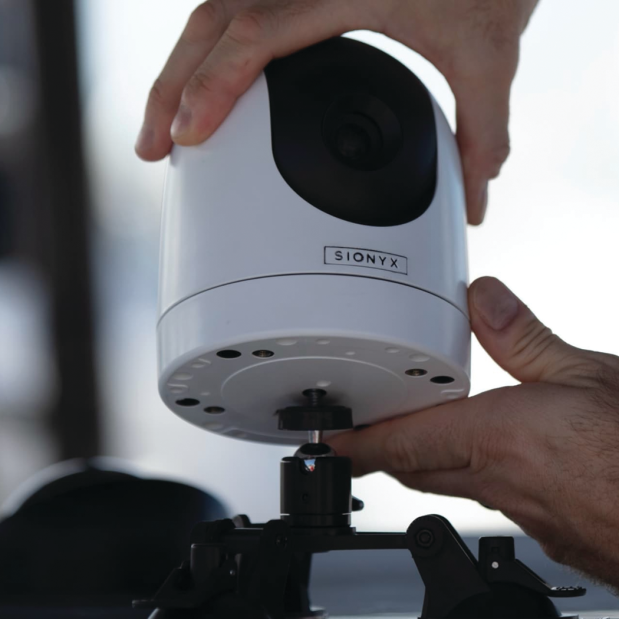

• Temporarily mount with 1/4"-20 interface
• Permanently mount to a flat surface, ball up or down, with the included mounting template and hardware
• Flexible installation
• Connects directly to a major brand MFD

Check The MANUFACTURERS RESOURCES area on this page for the MFD/Chartplotter Compatibility Matrix plus user manual and quick start guide

Specifications
• Sensor Type: XQE1350 BSI CMOS
• Resolution: 1280 x 1024
• Frame Rate: 60 Hz
• Detect: Detect Man-Sized Object: 492.1' / 150 m
• Spectrum System: 400-1200NM
• Focus Range: 32.8' / 10 m to Infinity
• Power Connections: Tinned Copper Wire
• Power: 12 VDC
• Wireless Communication: Wi-Fi and Bluetooth
• Video Connections: SMA / BNC/ RCA
• Video Out: NTSC
• Lens: 16 mm F/1.4
• Field of View: 44°
• Environment: Ingress Protection: IP67 Water/Dust Resistant
• Shock & Vibration: IEC60945 (V15G / H:9G) / IK08
• Operating Temperature: -4-122°F / -20-50°C
• Storage Temperature: -4-176°F / -20-80°C
• Mounting Options: Tripod or Rammount
• Single 1/4"-20 Center Mount
• Bulkhead Mount: 4 x M6 Blind Holes
• Top-Down Mounting Holes
• Dimensions: 5 x 5 x 6" / 12.7 x 12.7 x 15.2 cm
• Weight: 1.9 lb. / 0.9 kg
