8IN COLD SHRINK TUBING 8425
3M™ Cold Shrink Tubing
Share THIS PAGE:

Cold Shrink Tubing

No Tools, No Heat • 6 AWG to 11/0 AWG • 0.3" to 2.67" Potential Shrink Range
By: 3M

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

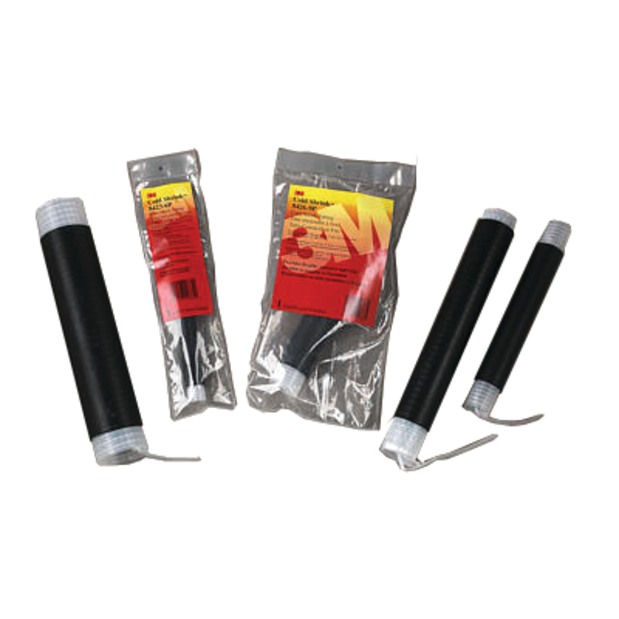

With 3M Cold Shrink Tubing you get a flexible, water-resistant seal without heat, torches or adhesives. To install, simply positon the tubing over the splice, and pull the tab to unwind the spiral wound core. It's that simple; no tools required.

The product consists of open-ended EPDM rubber sleeves which are factory expanded and assembled onto removable plastic cores. The core is removed after the tube has been positioned for installation over an inline connection or terminal lug, allowing the tube to shrink back to its normal size, forming a flexible, water-resistant seal.

• Ideal for insulating and protecting large diameter cable splices
• Can be used on tool handles and tool grips
• Meets water seal requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1KV
• Moderately UV resistant for outdoor applications; extend life under harsh UV conditions by wrapping with Super 33+ Vinyl Tape
• Suitable for direct buried applications
• The diameter of the object to be sealed must be within the diameter range shown in the table to ensure a good seal
• Priced and sold by the each

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item ID3M#AvailabilityDescriptionUOMYour PriceQTY
203414MMM 42146 42146Loading...Cold Shrink Tubing - 6 - 4 AWG (0.31" - 0.56" Range) 6" LengthLoading...
203415MMM 42390 42390Loading...Cold Shrink Tubing - 10 - 1/0 AWG (0.10" - 0.82" Range) 8" LengthLoading...
203416MMM 42391 42391Loading...Cold Shrink Tubing - 2 - 1/0 AWG (0.40" - 0.82" Range) 8" LengthLoading...
203417MMM 34457 34457Loading...Cold Shrink Tubing - 2/0 AWG - 250 kcmil (250 MCM or 5/0 AWG) (0.55" - 1.18" Range) 9" LengthLoading...
203418MMM 34458 34458Loading...Cold Shrink Tubing - 2/0 AWG - 250 kcmil (250 MCM or 5/0 AWG) (0.55" - 1.18" Range) 11" LengthLoading...
203419MMM 9915 9915Loading...Cold Shrink Tubing - 250 - 400 kcmil (250 - 400 MCM or 5/0 - 7/0 AWG) (0.67" - 1.38" Range) 6" LengthLoading...
76532MMM 34459 34459Loading...Cold Shrink Tubing - 250 - 400 kcmil (250 - 400 MCM or 5/0 - 7/0 AWG) (0.67" - 1.38" Range) 12" LengthLoading...
203420MMM 34460 34460Loading...Cold Shrink Tubing - 250 - 400 kcmil (250 - 400 MCM or 5/0 - 7/0 AWG) (0.67" - 1.38" Range) 16" LengthLoading...
76533MMM 34462 34462Loading...Cold Shrink Tubing - 900 - 1000 kcmil (900 - 1,000 MCM or 10/0 - 11/0 AWG) (1.27" - 2.67" Range) 18" LengthLoading...
Add To Cart
