1/4IN X 1/4IN PIN RH T-BOLT & TOGGLE
Threaded T-Bolt Toggles
Share THIS PAGE:

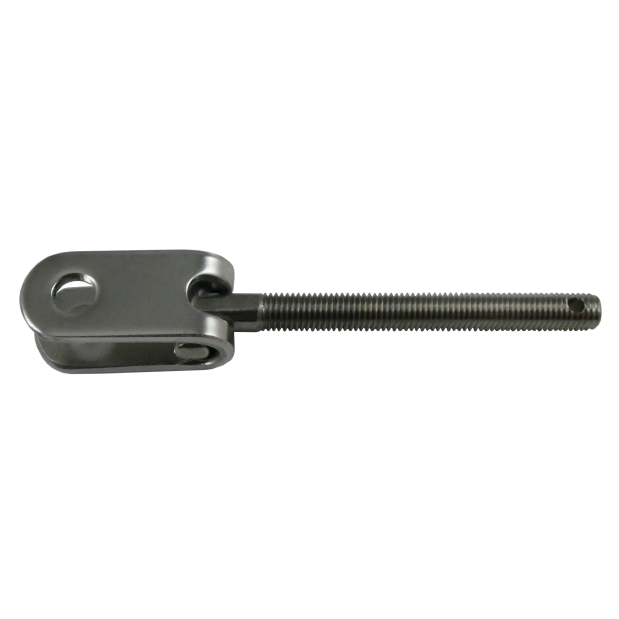

Threaded T-Bolt Toggles

316 Stainless Steel

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The extra degree of motion provided by the use of a toggle jaw on a turnbuckle allows for minor self-alignment, lessening the strain on other rigging components, such as chainplates and swages, especially when subjected to momentary high stresses - like someone falling against a shroud.
According to Master Rigger Brion Toss, while any stay or shroud can benefit from having a toggle at its lower attachment point, they are especially critical to use on both ends of headstays and forestays, which must withstand substantial side loading from sails.

• With Alexander-Roberts threaded toggle jaws, the length in the table is measured from bottom of cotter pin hole to the center of the clevis pin
• Right hand thread in stock; left hand available by special order

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDAlexander Roberts#AvailabilityDescriptionUOMYour PriceQTY
64191ARC TBT-0808 TBT-0808Loading...Threaded T-Bolt Toggles, 1⁄4", 1⁄4"-28 RHLoading...
143035ARC TBT-0808LH TBT-0808LHLoading...Threaded T-Bolt Toggles, 1⁄4", 1⁄4"-28 LHLoading...
64192ARC TBT-1010 TBT-1010Loading...Threaded T-Bolt Toggles, 5⁄16", 5⁄16"-24 RHLoading...
161661ARC TBT-1010LH TBT-1010LHLoading...Threaded T-Bolt Toggles, 5⁄16", 5⁄16"-24 LHLoading...
64193ARC TBT-1212 TBT-1212Loading...Threaded T-Bolt Toggles, 3⁄8", 3⁄8"-24 RHLoading...
133512ARC TBT-1212LH TBT-1212LHLoading...Threaded T-Bolt Toggles, 3⁄8", 3⁄8"-24 LHLoading...
64194ARC TBT-1414 TBT-1414Loading...Threaded T-Bolt Toggles, 7⁄16", 7⁄16"-20 RHLoading...
64195ARC TBT-1616 TBT-1616Loading...Threaded T-Bolt Toggles, 1⁄2", 1⁄2"-20 RHLoading...
131420ARC TBT-1616LH TBT-1616LHLoading...Threaded T-Bolt Toggles, 1⁄2", 1⁄2"-20 LHLoading...
64196ARC TBT-2020 TBT-2020Loading...Threaded T-Bolt Toggles, 5⁄8", 5⁄8"-18 RHLoading...
131178ARC TBT-2020LH TBT-2020LHLoading...Threaded T-Bolt Toggles, 5⁄8", 5⁄8"-16 LHLoading...
156733ARC TBT-2424RH TBT-2424RHLoading...Threaded T-Bolt Toggles, 3⁄4", 3⁄4"-16 RHLoading...
156732ARC TBT-2424LH TBT-2424LHLoading...Threaded T-Bolt Toggles, 3⁄4", 3⁄4"-16 LHLoading...
Add To Cart
