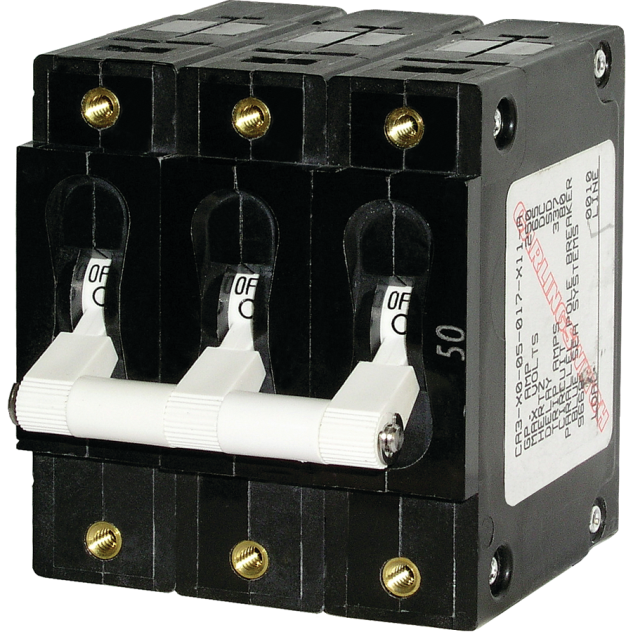

AC C-Series Triple Pole Circuit Breakers
AC C-Series Triple Pole Circuit Breakers
AC C-Series Triple Pole Circuit Breakers, 50A AC
SKU: 140838 Item ID: B/S 7287
Description
• 5,000 ampere interrupt capacity to meet ABYC requirements for 120/240 volt 50 ampere main circuit protection
• Triple pole can be used as a 240 volt AC main circuit breaker to switch both lines (hots) and the neutral
• All poles will trip if any one pole trips
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• "Trip free" design cannot be held "ON" during fault current condition
• Maximum voltage: 250 volts AC
• Note: Double and triple pole C-Series circuit breakers for AC and DC are not interchangeable
• C-Series triple pole circuit breaker case bodies measure 2.250"W x 2.50"H
Specifications
MFG #:7287
| Amperage50A AC
Amps
50A AC
Color
White
Poles
3
