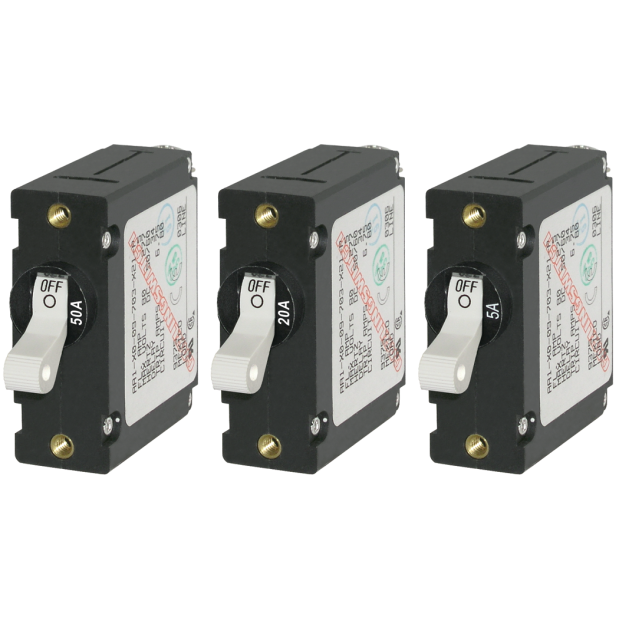

AC/DC A-Series Single Pole Circuit Breakers - White Toggle

"World" (A-Series) White Toggle Circuit Breakers

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
"World" circuit breakers were developed in recognition of the trend toward increased international trade.
They have the same case size as traditional A-Series circuit breakers, but have improved ratings to meet the requirements of foreign markets.

Among other features, they have an improved interrupt rating — which is a measure of the current a breaker can interrupt without catastrophic failure.

World circuit breakers meet ABYC standards, are UL 1077 recognized, TUV certified, CE marked for Europe, and CSA certified for Canada

• Replaces A-series breakers as the industry standard circuit breaker for Blue Sea Systems' electrical panels
• Combines switching and circuit protection into a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• "Trip-Free" design cannot be held "ON" during a fault current condition
• Maximum voltage: 277 VAC/65 VDC

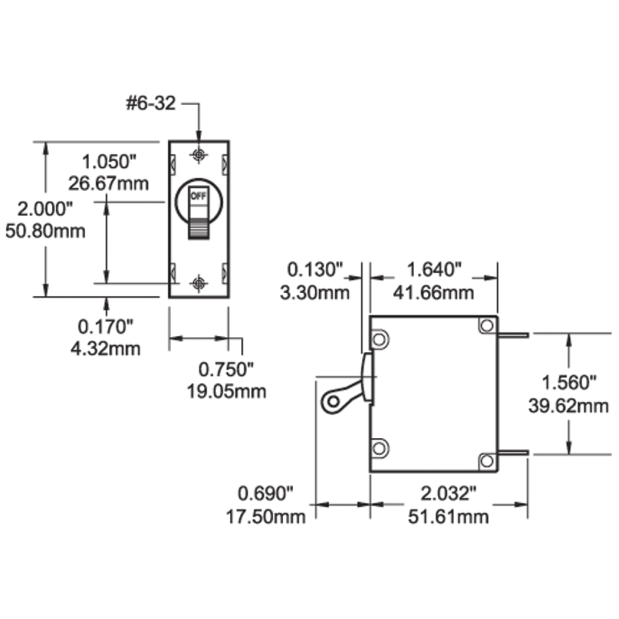

• Series A circuit breakers are available up to a maximum rating of 50 amps; case bodies measure 0.75"W x 2.00"H

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
456822B/S 7197 7197Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 2.5ALoading...
71851B/S 7202 7202Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 5ALoading...
168860B/S 7299 7299Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 8ALoading...
71855B/S 7206 7206Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 10ALoading...
71859B/S 7210 7210Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 15ALoading...
71863B/S 7214 7214Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 20ALoading...

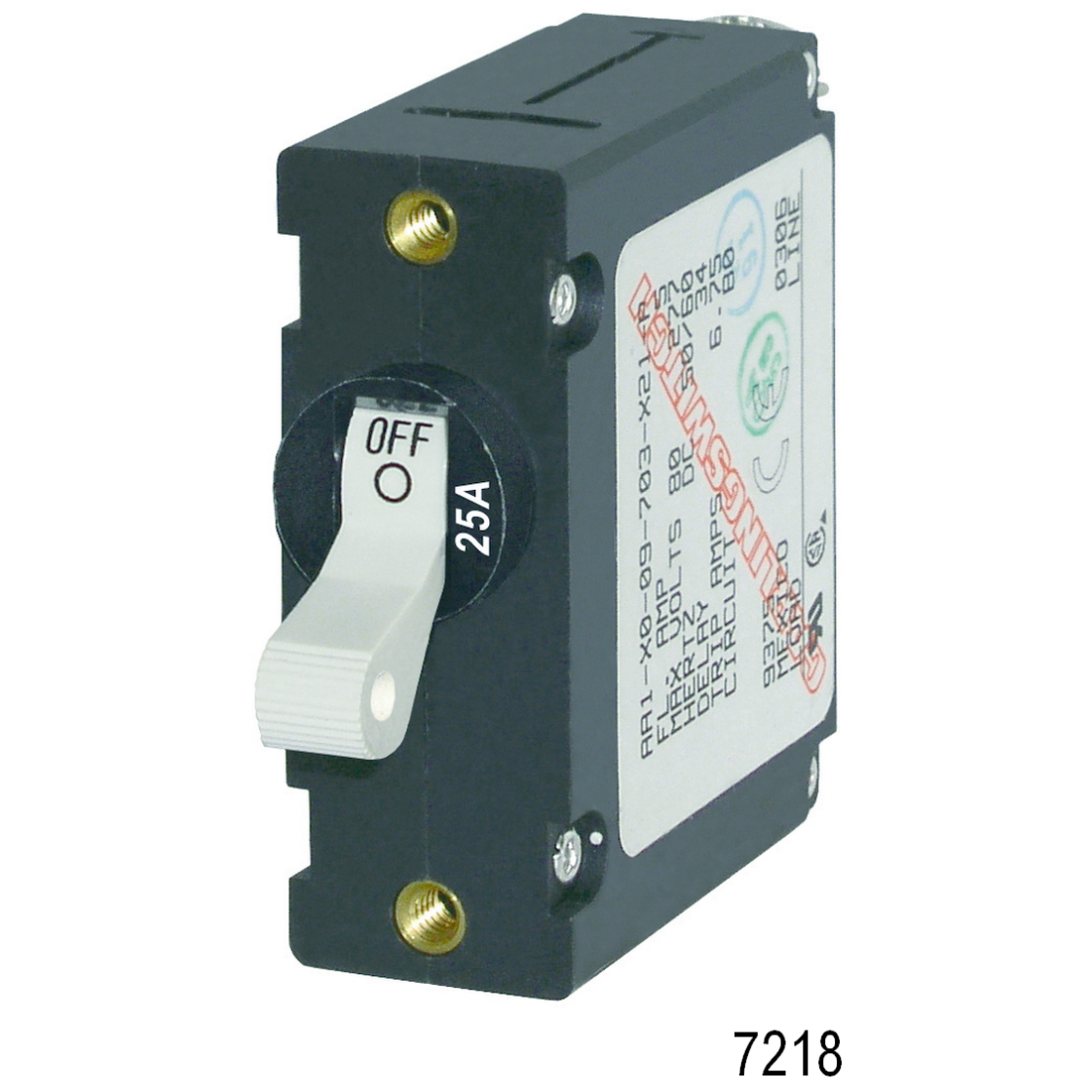

71867B/S 7218 7218Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 25ALoading...
71871B/S 7222 7222Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 30ALoading...
71875B/S 7226 7226Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 40ALoading...
71879B/S 7230 7230Loading...AC/DC A-Series Single Pole Circuit Breaker - White Toggle, 50ALoading...
