AC/DC C-Series Flat Rocker Single Pole Circuit Breakers

High Load

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
A range of 5 to 300 amperes provides over-current protection previously only available in fuses for inverters, bow thrusters, and windlasses. These breakers have a 5,000 ampere interrupt capacity to meet ABYC requirements for 120/240 volt main circuit protection, (interrupt capacity is a measure of the ability to interrupt currents without catastrophic failure).
• Flat actuator protects against accidental switching
• White color visible on actuator indicates "OFF" position
• Combines switching and circuit protection in a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• "Trip-Free" - cannot be held closed after trip
• Maximum voltage: 32 VDC/240 VAC
• C-Series rocker circuit breakers are available up to a maximum rating of 100 amps (single pole); case bodies measure 0.75"H x 2.55"W

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY

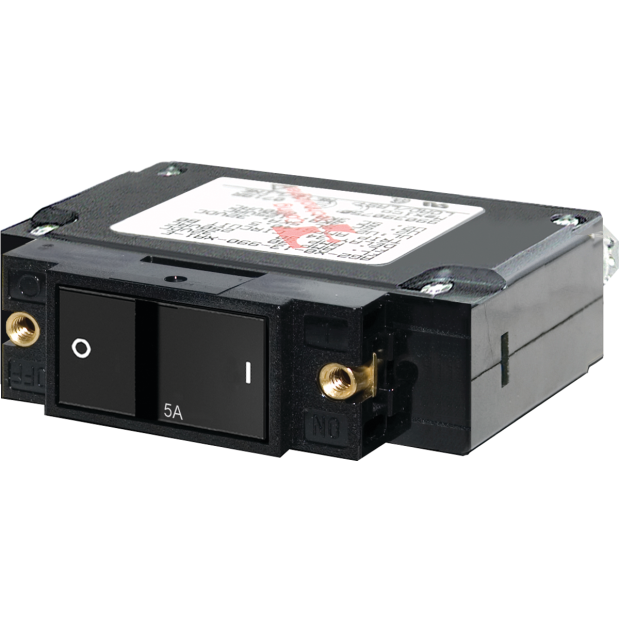

218654B/S 7540 7540Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 5A AC⁄DCLoading...
199331B/S 7542 7542Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 15A AC⁄DCLoading...
369222B/S 7543 7543Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 20A AC⁄DCLoading...
212601B/S 7544 7544Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 25A AC⁄DCLoading...
201799B/S 7545 7545Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 30A AC⁄DCLoading...
207504B/S 7546 7546Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 50A AC⁄DCLoading...
205398B/S 7547 7547Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 60A AC⁄DCLoading...
366797B/S 7548 7548Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 80A AC⁄DCLoading...

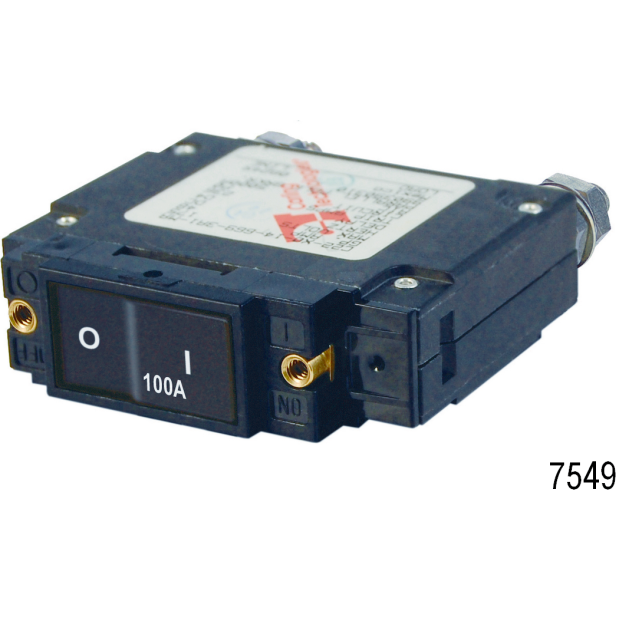

199329B/S 7549 7549Loading...AC/DC C-Series Flat Rocker Single Pole Circuit Breakers, 100A AC⁄DCLoading...
Add To Cart
