Battery Terminal Fuse Blocks

For Mounting MRBFs (Marine Rated Battery Fuses) • High Amperage Protection At the Battery • Satisfies ABYC 7 Inch Rule

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
An ingenious and convenient way to achieve protection for high amperage wires directly off the battery.
You can easily and economically satisfy the ABYC 7" circuit protection rule by mounting this MRBF fuse block on a 3/8" battery post stud, battery switch, or busbar.

An isolated 1/4" stud is integral to the fuse, and permits stacking of cable terminals without interference.
Suitable for open-cockpit boats, and other harsh environments.

NOTE — This product is the Fuse Block only; the square terminal mounted fuses shown are sold separately.
See Related Products, below, for details.

• Uses compact, high-amp fuses appropriate for DC main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight spaces
• Weatherproof
• Insulating cap prevents accidental shorts
• Accepts 1/4" ring terminals

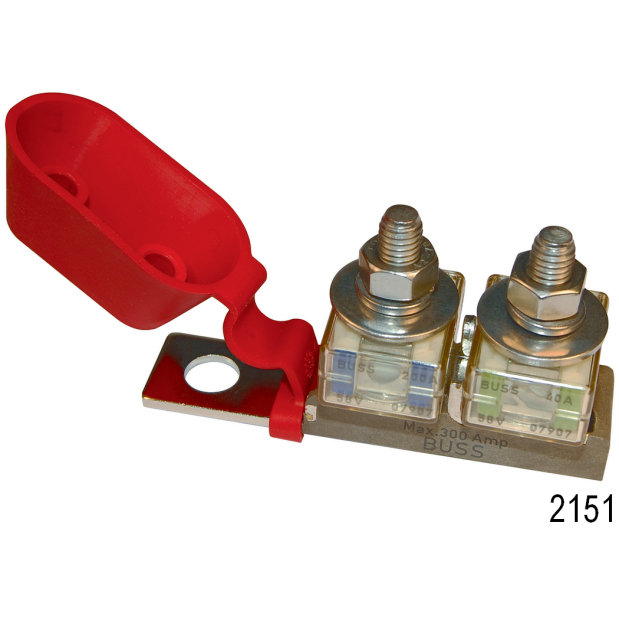

• Note: shown with square Terminal Fuses (sold separately)

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart

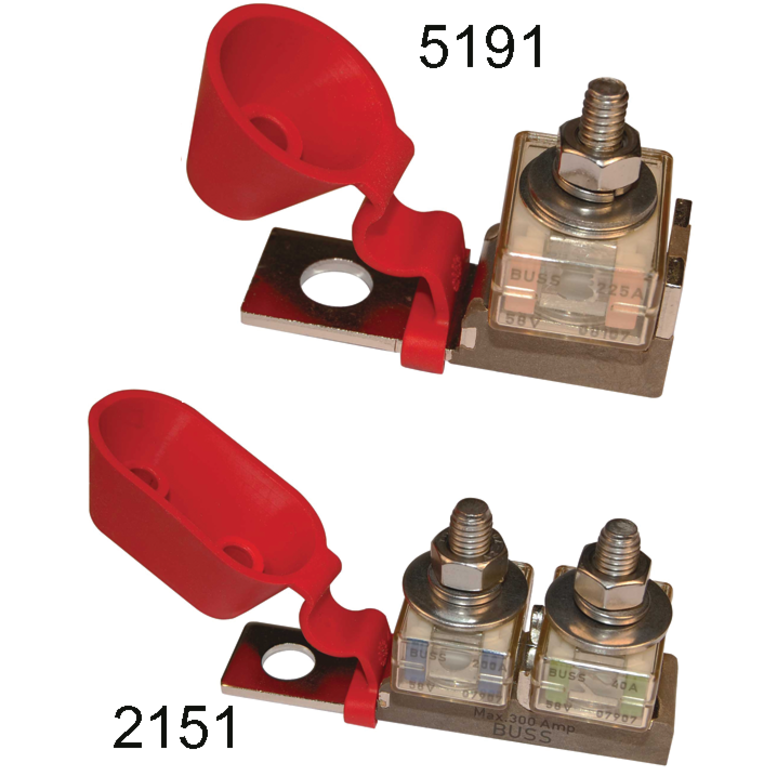

Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY

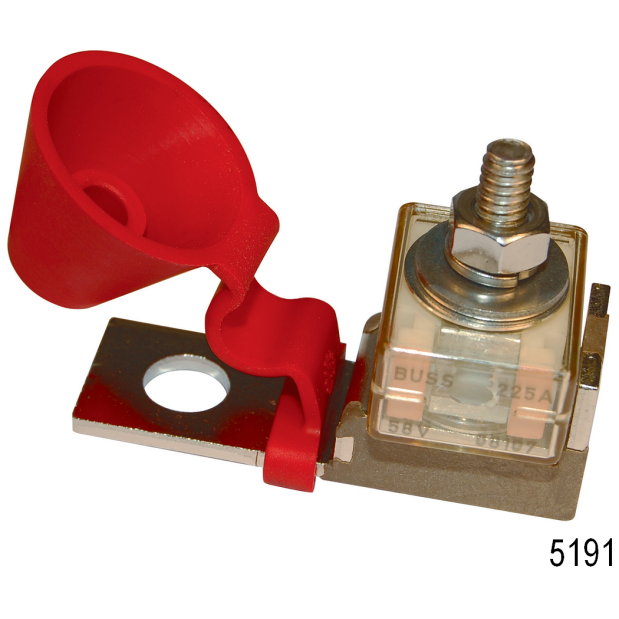

197311B/S 5191 5191Loading...Battery Terminal Fuse Blocks, 1 Terminal StudLoading...
207834B/S 2151 2151Loading...Battery Terminal Fuse Blocks, 2 Terminal StudsLoading...
Add To Cart
