DC Micro Analog Ammeters

2" Face for Limited Space Locations

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
• Simple 2-wire connection
• Meter senses and is powered from the same connection
• Shunt included (#8038 ammeter has internal shunt)
• Meter operating amperage: 1 milliampere at full scale
• Meter has integral backlight for low-light readability
• Dimensions: 2" x 2"
• Mounting Hole: 1.875" diameter

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
79924B/S 8038 8038Loading...DC Micro Analog Ammeters, 0-15 amps DC on a 1.0 amp scaleLoading...

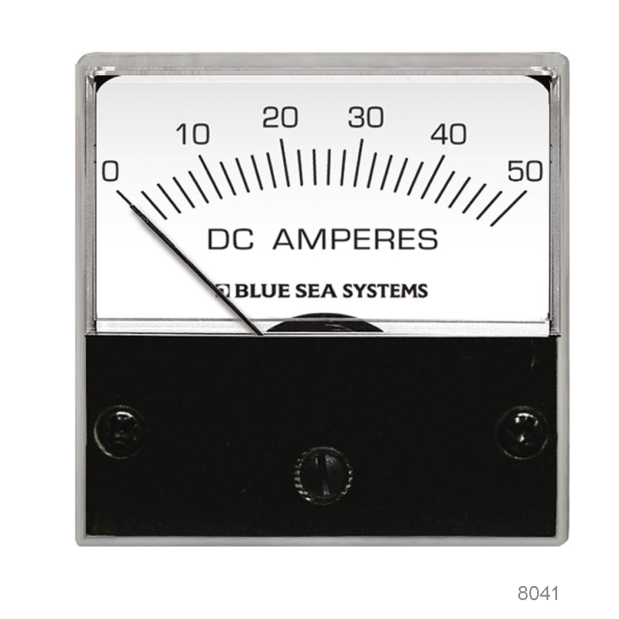

79925B/S 8041 8041Loading...DC Micro Analog Ammeters, 0-50 amps DC on a 2.0 amp scaleLoading...

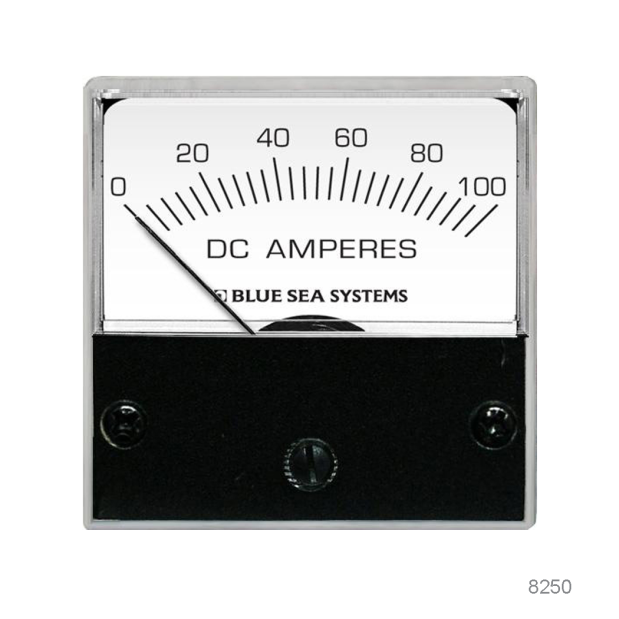

160918B/S 8250 8250Loading...DC Micro Analog Ammeters, 0-100 amp DC on a 2.0 amp scaleLoading...
