AC 2-Source Selector Rotary Switch & Panels - 30A

This switch, and the panels it is used in, lets you select between two 120V AC input sources to power your 120V AC onboard electrical loads. The #9009 switch is the 30 amp version of the Blue Sea #9011 65 amp switch which has the same function.

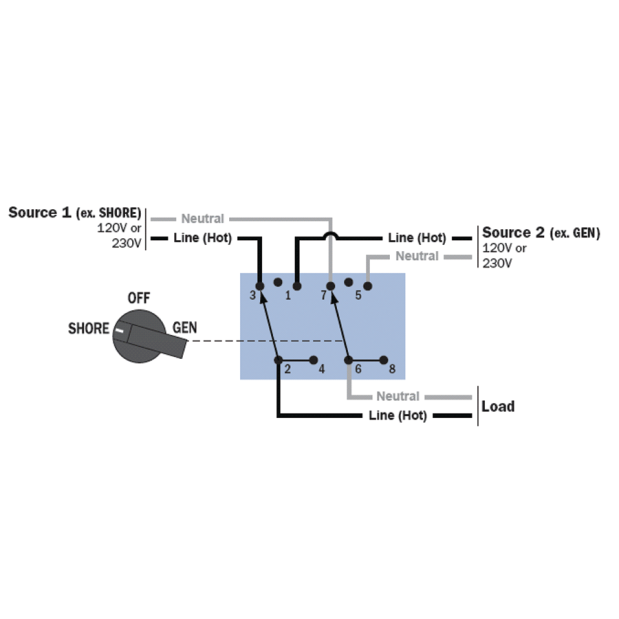

• Wired for input sources with 1 Hot wire and 1 Neutral wire
• Use for both North American (120V) and European (230V) line voltage
• Typical sources are dockside shore power and an onboard generator (genset)
• 360 Panel System modular panels are available labeled for either 120 or 230 volts

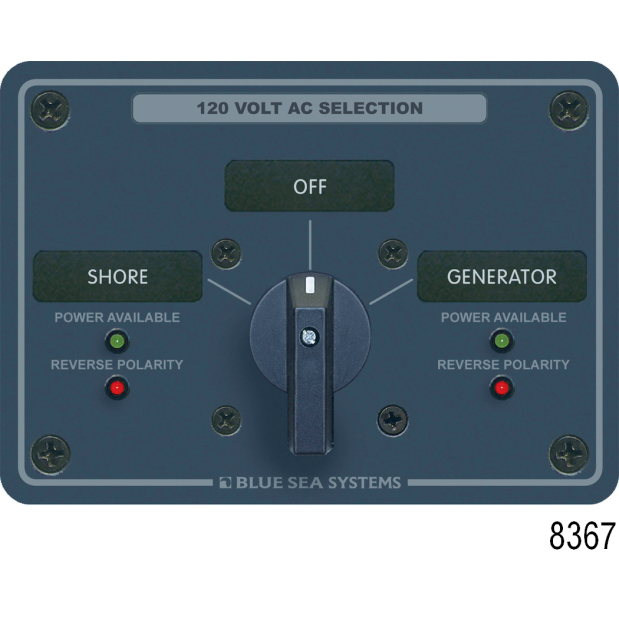

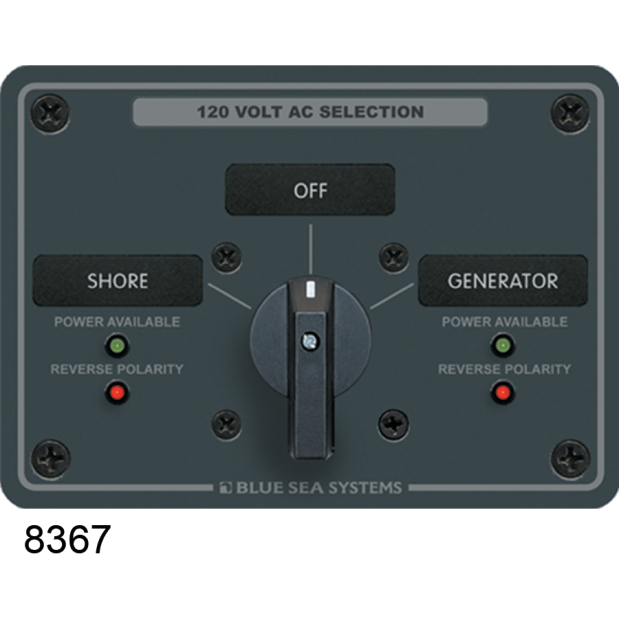

• Traditional aluminum panels are available labeled for either 120 or 230 volts

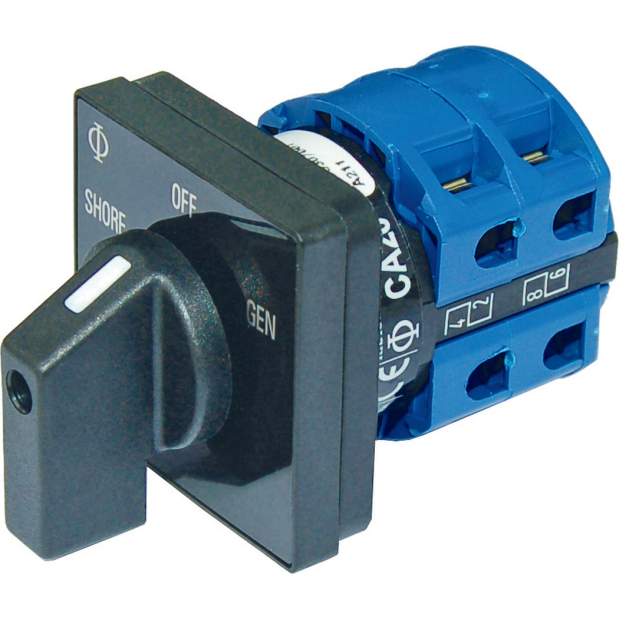

• Switch specifications: max 30A, max 600V AC, 2 source positions + Off position, 2 poles; accepts 14-10 AWG wire
• Panel max voltage is 120 or 230V AC depending on model, see Table

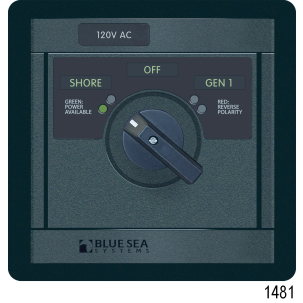

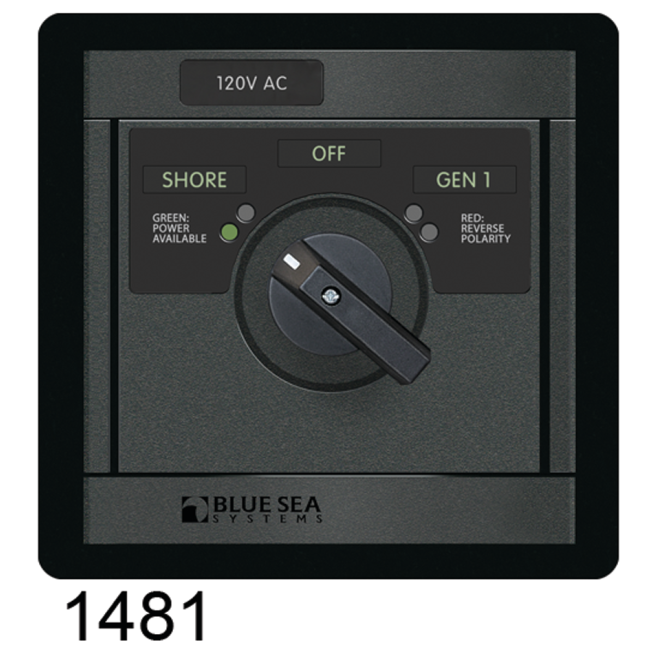

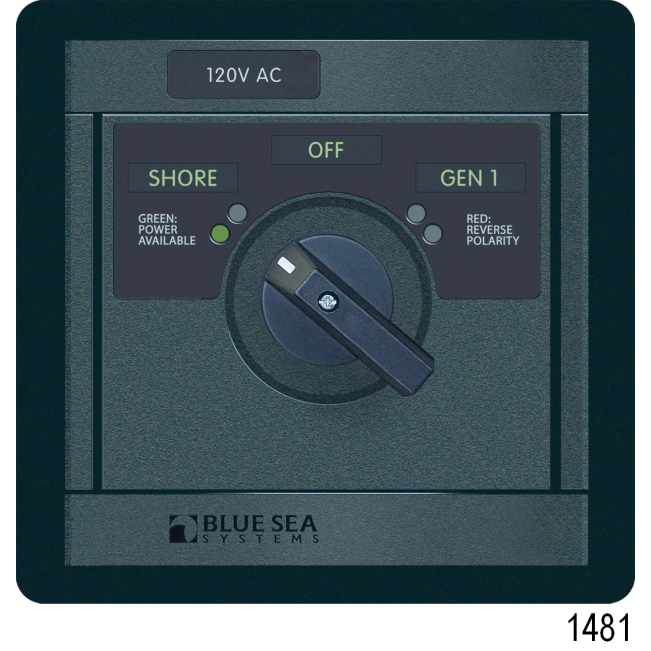

• Panels have “power available” and “reverse polarity” indicating LEDs, and include a set of 30 labels, instructions & template
• UL listed; CE marked
