Surface Mount Switchable Circuit Breaker

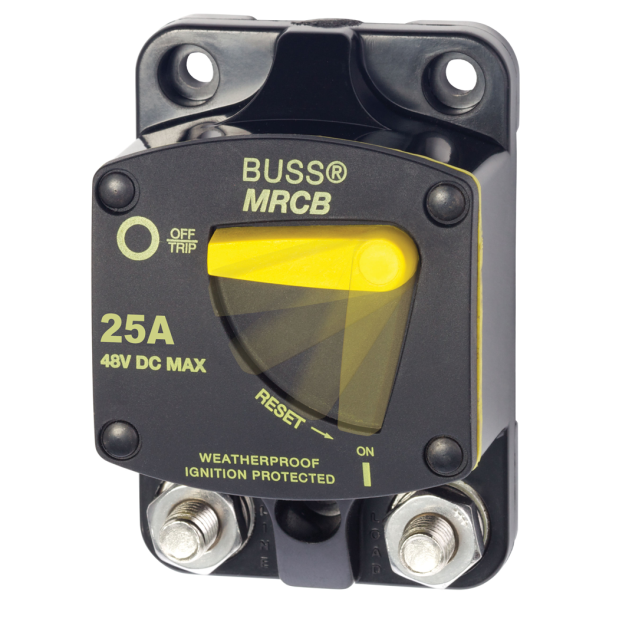

Series 187 Surface Mount Thermal Circuit Breaker, 25A
- Vaporproof & waterproof
Description
This thermal circuit breaker combines switching functions and circuit protection into a single device.
• Clear, single lever operation & mdash; vertical/horizontal orientation provides indication of trip status
• "Trip Free" design cannot be held "ON" during fault current condition
• Ignition protected — safe for installation aboard gasoline powered boats
• Vaporproof & waterproof (IP66 - power jetting/heavy seas)
• Recessed mounting holes for clean appearance
• Self-trimming case eliminates the need for mounting panels or trim bezels
• Large clearance around terminal studs accepts heavy gauge wire lugs
• Robust 5/16" terminals provide high torque connections
• Interrupt rating — 5000A @ 12V DC, 3000A @ 24V DC, 1500A @ 42V DC
• 48V DC maximum
• CE marked; meets SAE J1171 external ignition protection requirements
Specifications
50632085071351
7135
632085071356
Product Options
| Selected | SKU # | MFG # | Availability | Amperage | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 167479 | MFG #: 7135 | 11 In Stock Ships immediately | 25A | $84.27 Each | |||
| SKU #: 167817 | MFG #: 7136 | Out of Stock | 30A | $84.27 Each | |||
| SKU #: 167821 | MFG #: 7138 | Out of Stock | 40A | $84.27 Each | |||
| SKU #: 167822 | MFG #: 7139 | 2 In Stock Ships immediately | 50A | $84.27 Each | |||
| SKU #: 167823 | MFG #: 7140 | Out of Stock | 60A | $84.27 Each | |||
| SKU #: 167824 | MFG #: 7141 | 12 In Stock Ships immediately | 70A | $84.27 Each | |||
| SKU #: 167480 | MFG #: 7142 | Out of Stock | 80A | $84.27 Each | |||
| SKU #: 204816 | MFG #: 7143 | 8 In Stock Ships immediately | 90A | $84.27 Each | |||

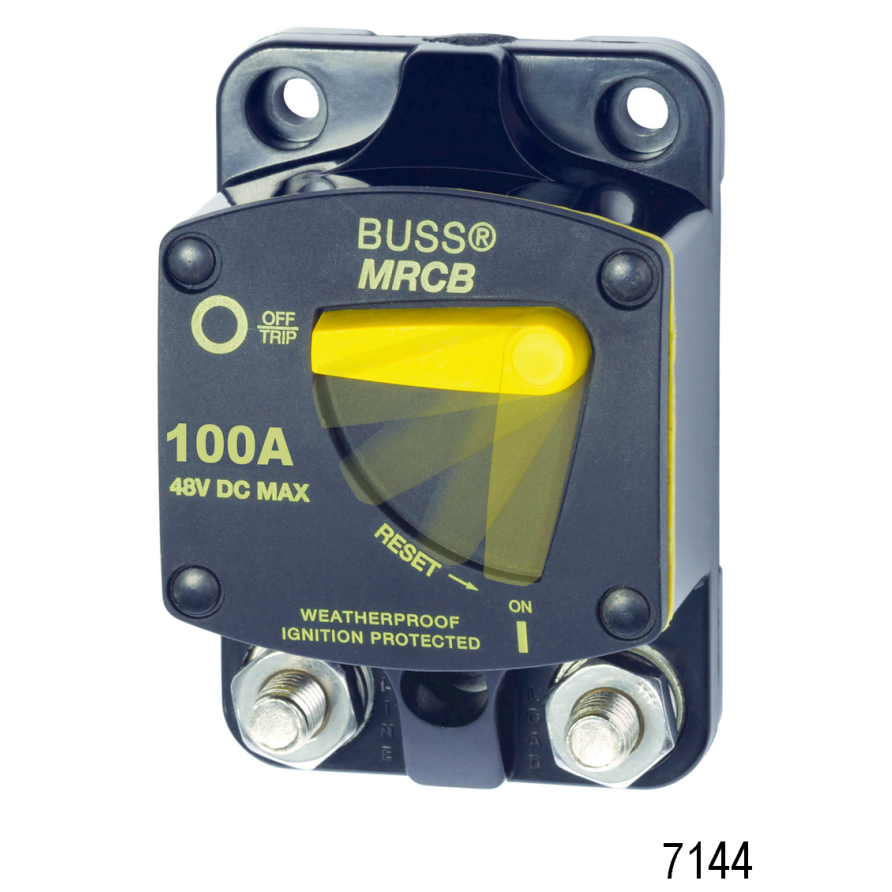

| SKU #: 167481 | MFG #: 7144 | Out of Stock | 100A | $84.27 Each | |||
| SKU #: 167827 | MFG #: 7146 | 14 In Stock Ships immediately | 120A | $84.27 Each | |||

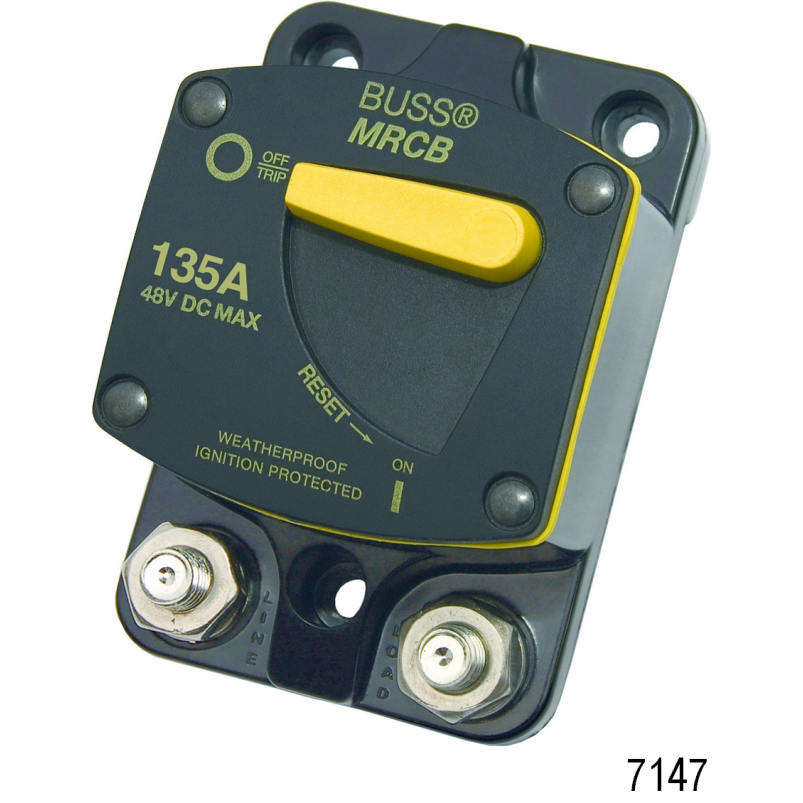

| SKU #: 167828 | MFG #: 7147 | 8 In Stock Ships immediately | 135A | $84.37 Each | |||
| SKU #: 167829 | MFG #: 7148 | 8 In Stock Ships immediately | 150A | $84.27 Each | |||
| SKU #: 374416 | MFG #: 7149 | 4 In Stock Ships immediately | 200A | $109.90 Each |
