Y VALVE TAPPED 1/2IN NPT BASE MOUNT
Model 94 Sea-Lect Y-Valves
Share THIS PAGE:

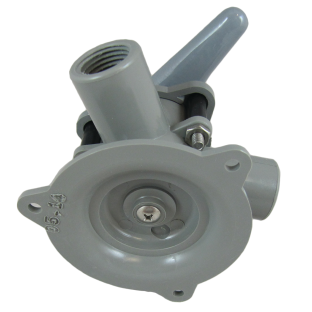

Model BM-94-A Base Mount Sea-Lect Y-Valve - with Tapped Ports

Base Mount Model • Internally Threaded Smooth Ports • Easiest Turning Y-Valve

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
loading image
Checking for Price and Availability
Overview
This "Base Mount" valve has a convenient 3-hole base mount plate for securing the valve to a deck, floor, or wall.

Re-designed for ease of turning and to resist valve freeze-up, the "BM-94" Y-valve comes standard with a rugged acetal handle and smooth hose ports which are internally tapped to accept user supplied threaded hose barbs.
This all-acetal Y-valve eliminates any risk of corroding metal parts.

The easiest-turning Y-valve you’ll ever use, the internal rubber seat eliminates the risk of Y-valve "freeze-up" which can occur after periods of non-use, and reduces turning friction — while still making a tight seal.
Bosworth’s classic, trademark "V"-shaped handle is made of tough, injection-molded acetal resin, the same acetal resin used to mold the Y-valve body. Unlike aluminum handles, these handles will never corrode.

An easily removable stop ring converts all Sea-Lect Y-valves from a "2-Flow-Path" position mode to a "3-Flow-Path" position mode.

• Arrows on handle indicate flow path
• Durable, lightweight acetal plastic
• Fastener flange at bottom for base-mounted installation
• Smooth external ports accommodate 1" hose
• Tapped internal port is for 1/2" pipe for user supplied hose adapters
• Full port opening
• Locking tab on handle
• Supports either 2 or 3 flow-path mode
• Maximum pressure 40 psi
• 5 year warranty
