Yanmar Split Shaft Couplings
Yanmar Split Shaft Couplings

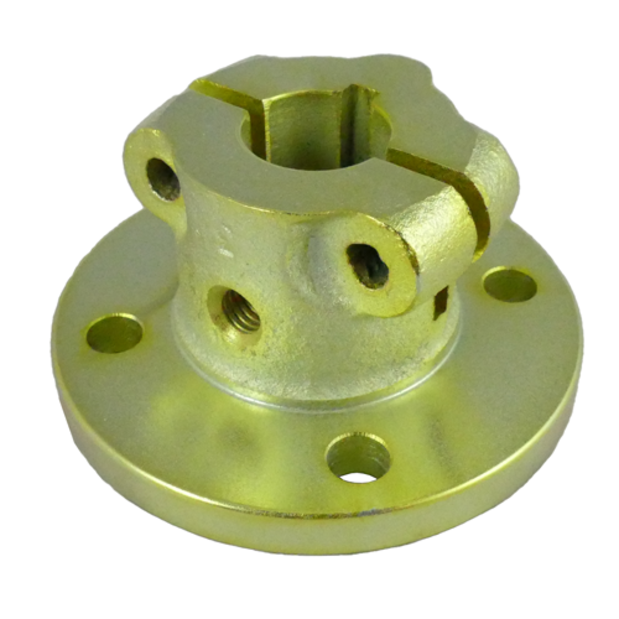

Yanmar Split Shaft Couplings - 4" Flange x 1" Shaft
SKU: 95058 Item ID: B/A 50400YS100
- Easy to install
Description
All things being equal, split couplings are easier to install and remove than solid couplings.
• Order a "No Bore" coupling for machining a custom shaft size
• "No Bore" split couplings come with a 3/4" to 1-1/4" pilot bore
• Shown with a male (M Type) pilot
• In the table below, these are the codes for transmission types: A=Allison, B/W=Borg Warner, C=Capitol, H=Hurth, N=Newage, P=Paragon, TD=Twin Disc, VP=Volvo Penta, Y=Yanmar, ZF=ZF
• Shaft Range indicated is the available range for that model of coupling
• Note: in the table, the easiest way to locate the coupling you need is to start with the flange diameter, then shaft size and pilot, etc.
Specifications
MFG #:50400YS100
| Flange4" Flange
| Shaft Size1"
Size
1"
Bolt Size
10mm
Pilot
1.966" x 3/32"M
Shaft Range
3/4" - 1-1/4"
Flange
4"
Length
2"
Type
Y
# Bolts
4
Bolt Circle
3.070"
Keyway
1/4"
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
]C150400YS100
50400YS100
50400YS100
Product Options
| Selected | SKU # | MFG # | Availability | Flange | Shaft Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 143886 | MFG #: 50400YS075 | Special Order Only | 4" Flange | 3/4" | $151.60 | |||
| SKU #: 143888 | MFG #: 50400YS087 | Special Order Only | 4" Flange | 7/8" | $151.60 | |||
| SKU #: 95058 | MFG #: 50400YS100 | 1 Remaining In Stock Ships immediately | 4" Flange | 1" | $151.60 | |||
| SKU #: 133727 | MFG #: 50400YS112 | Special Order Only | 4" Flange | 1-1/8" | $151.60 | |||
| SKU #: 133728 | MFG #: 50400YS125 | 2 In Stock Ships immediately | 4" Flange | 1-1/4" | $151.60 | |||
| SKU #: 143889 | MFG #: 50400YSNOB | Special Order Only | 4" Flange | No Bore | $151.60 | |||
| SKU #: 156048 | MFG #: 50500YS100 | Special Order Only | 4-3/4" Flange | 1" | $189.77 | |||
| SKU #: 156049 | MFG #: 50500YS137 | Special Order Only | 4-3/4" Flange | 1-3/8" | $189.77 | |||
| SKU #: 156050 | MFG #: 50500YS150 | Special Order Only | 4-3/4" Flange | 1-1/2" | $189.77 |
