12VDC 4IN DIA FAN BLOWER IGN PRO
DC Centrifugal Blowers - Ignition Protected
Share THIS PAGE:

DC Centrifugal Blowers - Ignition Protected

Bracket Mount - For 4" Vent Hose

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

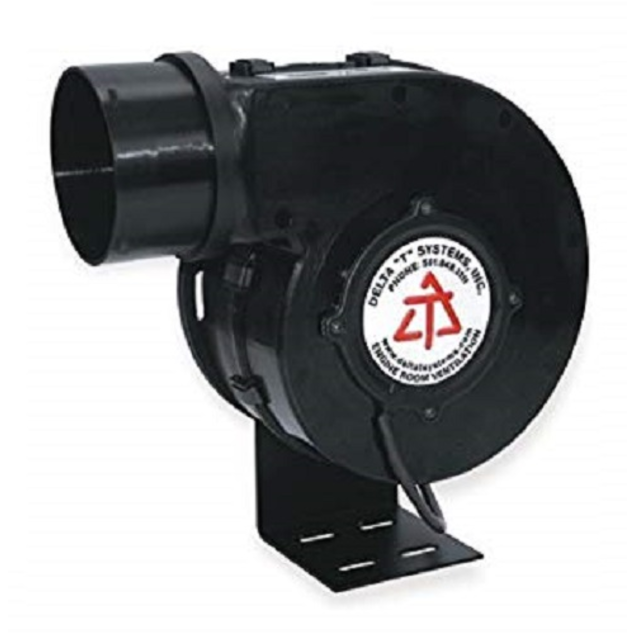

This powerful 4-inch blower is ideal for small vessel engine compartments. It is also an exellent choice for installations involving long or convoluted vent hose runs as this design provides a significantly higher percent of its stated (open) flow rate when pushing against high static pressures (resistance). These fans are especially compact. Unlike other centrifugal blowers, the motor is completely contained within the shroud, and does not protrude to the side. An optional 4-inch intake adapter plate (shown) may be used for securing a hose or pipe to the intake side of the blower. Air flows in Table are maximal.
• Rated for continuous duty; CE marked
• Ignition protected, conforms to SAE J1171, ISO 8846/9097
• Purpose-built marinized, ball bearing, direct drive DC motor is sealed against corrosion
• Included universal mounting bracket (shown attached to fan) allows for a wide variety of installation options
• Dynamically balanced armatures for quiet vibration-free operation
• Dimensions of fan body with outflow at top, as shown: 10"H x 11.5"W x 4.5"Thick

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDDelta T Systems#AvailabilityDescriptionUOMYour PriceQTY
214987DLT 500-304121IP 500-304121IPLoading...DC Centrifugal Blowers - Ignition Protected, Blower 12 VDC 4"Loading...
214984DLT 500-304242IP 500-304242IPLoading...DC Centrifugal Blowers - Ignition Protected, Blower 24 VDC 4"Loading...
214989DLT 505-201251 505-201251Loading...DC Centrifugal Blowers - Ignition Protected, 4" Intake Adapter Ring -- 4"Loading...
Add To Cart
