WHITE VINYL WIRE 1/8INX7/32IN 316SS

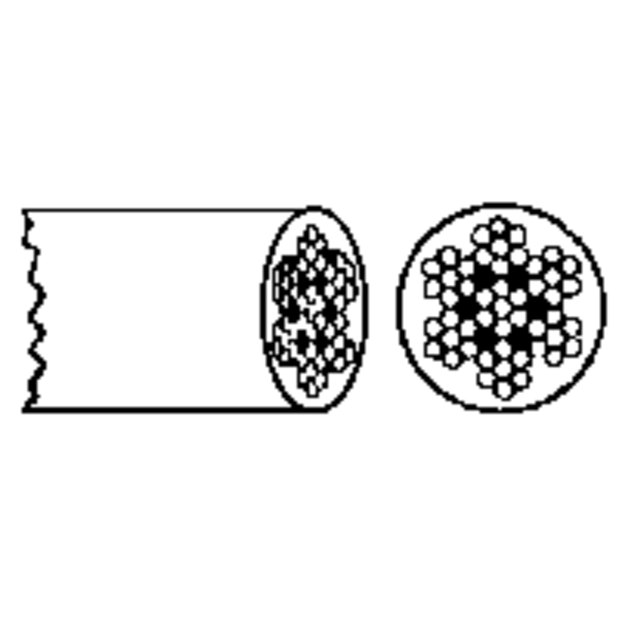

7x7 White Vinyl-Coated Wire
Share THIS PAGE:

7x7 White Vinyl-Coated SS Wire - 316 Alloy

Popular for Lifelines

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Traditionally used for lifelines, spinnaker pole trip lines, and toppling lifts on sailboats.
Vinyl-coated wire provides all the same qualities of regular 7 x 7 wire, but its smooth exterior will not catch or be abrasive to lines.

• 316 stainless steel
• Price is per foot; full spools are 500 ft
• Note: BL (nominal breaking strength) and weight (lb/100 ft) are approximate


Heavy on the technical side...

Which alloy to choose?
If you have a choice between the most common marine stainless steel alloys — 304 and 316 — which should you choose?

304* is the stronger (by about 15%) and more economical of the two alloys commonly used for rigging. In the middle range of corrosion resistance provided by stainless steels, it is often used for rigging on boats in cooler climates, like the Pacific Northwest of the United States.
316 stainless steel alloy provides increased corrosion resistance at the cost of some strength. It is the alloy of choice for rigging — especially in tropical climates where higher temperatures and saltwater combine to make corrosion a significant concern.

*304 stainless steel is also referred to as "18/8", denoting its 18% chromium and 8% nickel components.
316 alloy adds 2 -3% molybdenum to the basic 304 formulation to increase resistance to pitting caused by chlorides.
Reference: ASM Specialty Handbook - Stainless Steels; ASM International, 1994

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDFisheries Items#AvailabilityDescriptionUOMYour PriceQTY
169358W/R 1/16-VINYL-316 1/16-VINYL-316Loading...316 SS 7 x 7 White Vinyl-Coated Wire Rope - 1⁄16" Wire Coated to 1/8" OD (360 lb Min. BL)Loading...
169355W/R 1/8-VINYL-316 1/8-VINYL-316Loading...316 SS 7 x 7 White Vinyl-Coated Wire Rope - 1⁄8" Wire Coated to 7/32" OD (1360 lb Min. BL)Loading...
189335W/R 5/32VINYL316 5/32VINYL316Loading...316 SS 7 x 7 White Vinyl-Coated Wire Rope - 5⁄32" Wire Coated to 1/4" OD (2211 lb Min. BL)Loading...
169357W/R 3/16-VINYL-316 3/16-VINYL-316Loading...316 SS 7 x 7 White Vinyl-Coated Wire Rope - 3⁄16" Wire Coated to 5/16" OD (3200 lb Min. BL)Loading...
169603W/R 1/4-VINYL-316 1/4-VINYL-316Loading...316 SS 7 x 7 White Vinyl-Coated Wire Rope - 1⁄4" Wire Coated to 3/8" OD (5728 lb Min. BL)Loading...
Add To Cart
