16-14 NYL INS BUTT SPLCE W/INS GRP
Double Crimp Butt Splices
Butt Splices - with Insulation Grip
Share THIS PAGE:

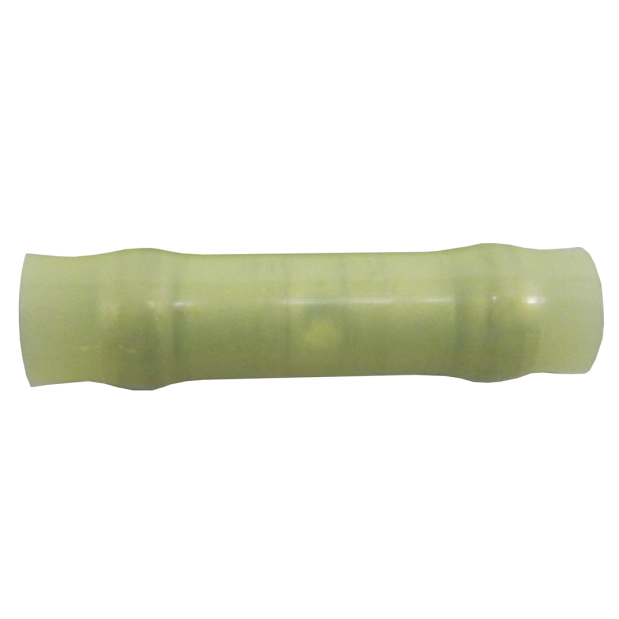

Double Crimp Butt Splices - With Insulation Grip

Nylon Insulated, Double Crimp

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Although they are not gas and water tight like the FTZ Crimp 'N Seal heat shrink connectors, these Insulation Grip Terminals do provide an additional level of connection strength over standard, single crimp, butt connectors.

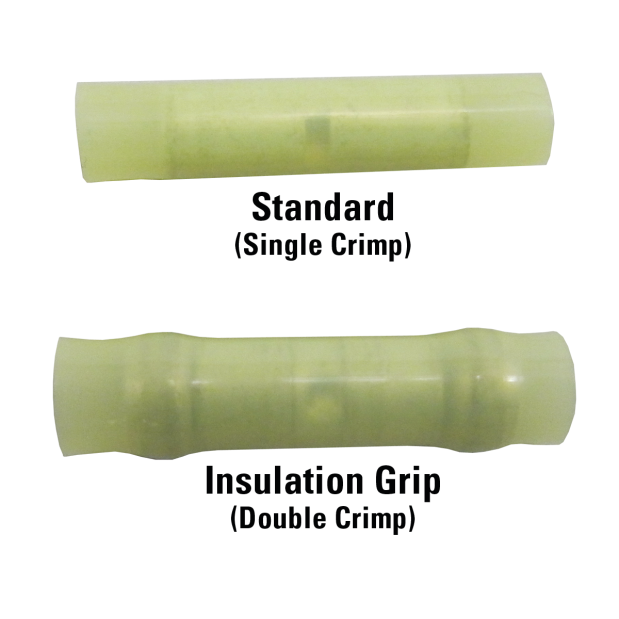

These connectors incorporate a brass ring in the end of the terminal, allowing for a second crimp to be made on top of the wire insulation.
While not adding any electrical benefit, this second crimp provides added strain relief and mechanical strength over standard butt connectors in high vibration or mechanically stressed installations.

• Higher mechanical strength than standard, single crimp connectors
• These high temperature terminals are nickel-plated steel for operating temperatures up to 900°F
• Sold by the package

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDFTZ Industries#AvailabilityDescriptionUOMYour PriceQTY
214737FTZ 45133N-P100 45133N-P100Loading...Butt Splices - With Insulation Grip, 22-18 GA (Qty 100)Loading...
214784FTZ 45333N-P100 45333N-P100Loading...Butt Splices - With Insulation Grip, 16-14 GA (Qty 100)Loading...
214860FTZ 45433N-P50 45433N-P50Loading...Butt Splices - With Insulation Grip, 12-10 GA (Qty 50)Loading...
Add To Cart
