Cablemaster - Pipe Extension Kits

Use these kits for routing your power cordset within the vessel from the hawse pipe entry to the storage area.

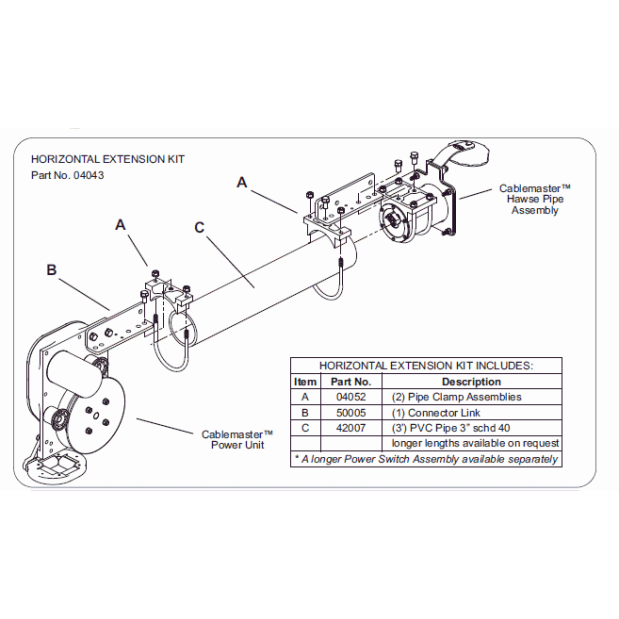

Horizontal Extension Kit
• Use this when there is insufficient storage space immediately below the Hawse Pipe, and you need to run the cable farther inboard to store it.
This accessory allows the Power Unit to be installed farther inboard from the Hawse Pipe Assembly cable entrance.
• Includes — (1) 36" section of 3" Sched 40 PVC pipe, (2) U-Clamps, (1) aluminum Connector Link for connecting to the next system component - such as the Power Unit.

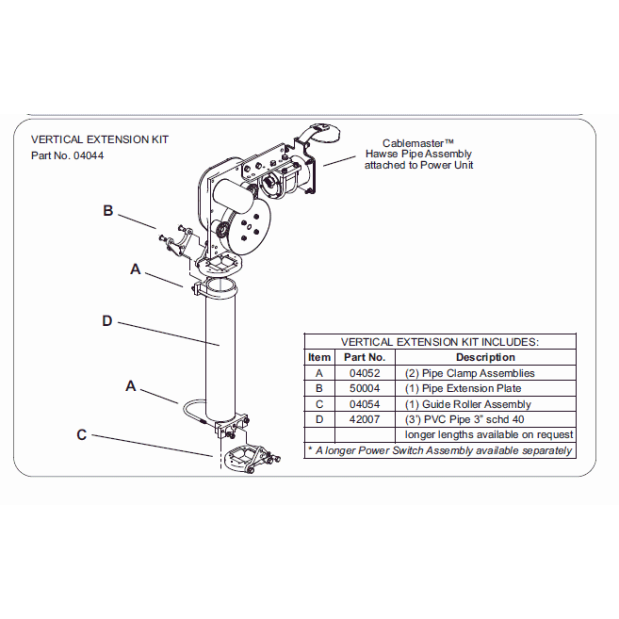

Vertical Extension Kit
• Use this when the vertical distance between the Power Unit and the top of the storage space (or container) is too great to control the direction of the cable.
This kit helps prevent the power cable from spilling out of the storage space.

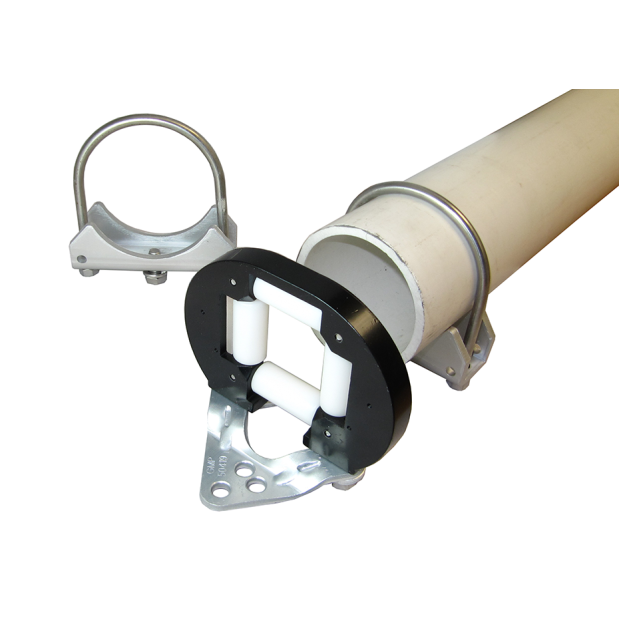

• Includes — (1) 36" section of 3" Sched 40 PVC pipe, (2) U-Clamps, (1) Guide Roller Assembly, and (1) Pipe Extension Plate for attaching the pipe to the previous component - such as the Power Unit.
