1IN NPT BRZ 90DEG TO 1-1/4IN BARB
90 Degree Pipe to Hose Adapters  -  Bronze
Share THIS PAGE:

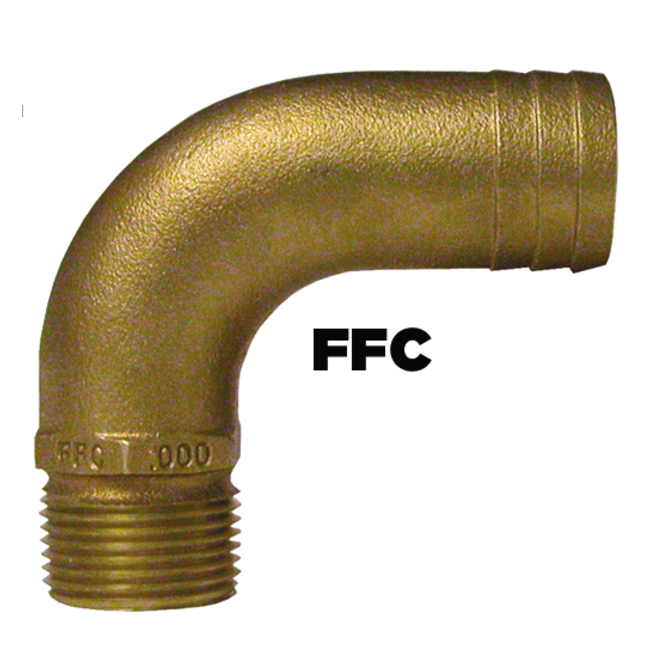

90 Degree Pipe to Hose Adapters - Bronze

Full-Flow - FFC Series
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
For plumbing applications where unrestricted flow through a given pipe size is a priority, and hose size is adaptable. While a standard 1" x 1" pipe to hose adapter only has a 3/4" internal diameter in the 1" barb section; a Full Flow 1" x 1" pipe to hose adapter has the full 1" internal diameter all the way through. As a result, however, it requires that the next larger hose size be used - which may or may not be appropriate in every application. • FFC fittings are Full Flow Curved, and have a “sweep” 90° design to provide a no-restriction flow capacity • Fittings are cast bronze • A generous hex nut is cast-in to allow for secure tightening • Sufficient hose seating area is provided for double-clamping

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
57908GRO FFC-500 FFC-500Loading...90 Degree Pipe to Hose Adapters - Bronze, 3/4" Hose x 1/2" PipeLoading...
61138GRO FFC-750 FFC-750Loading...90 Degree Pipe to Hose Adapters - Bronze, 1" Hose x 3/4" PipeLoading...
57430GRO FFC-1000 FFC-1000Loading...90 Degree Pipe to Hose Adapters - Bronze, 1-1/4" Hose x 1" PipeLoading...
57431GRO FFC-1250 FFC-1250Loading...90 Degree Pipe to Hose Adapters - Bronze, 1-1/2" Hose x 1-1/4" PipeLoading...
57432GRO FFC-1500 FFC-1500Loading...90 Degree Pipe to Hose Adapters - Bronze, 1-3/4" Hose x 1-1/2" PipeLoading...
66308GRO FFC-2000 FFC-2000Loading...90 Degree Pipe to Hose Adapters - Bronze, 2-1/4" Hose x 2" PipeLoading...
76215GRO FFC-2500 FFC-2500Loading...90 Degree Pipe to Hose Adapters - Bronze, 2-3/4" Hose x 2-1/2" PipeLoading...
Add To Cart
