1IN FNPS BRZ 90DEG TO 1IN BARB
Tail Piece TP and TPC Series  -  Bronze
Share THIS PAGE:

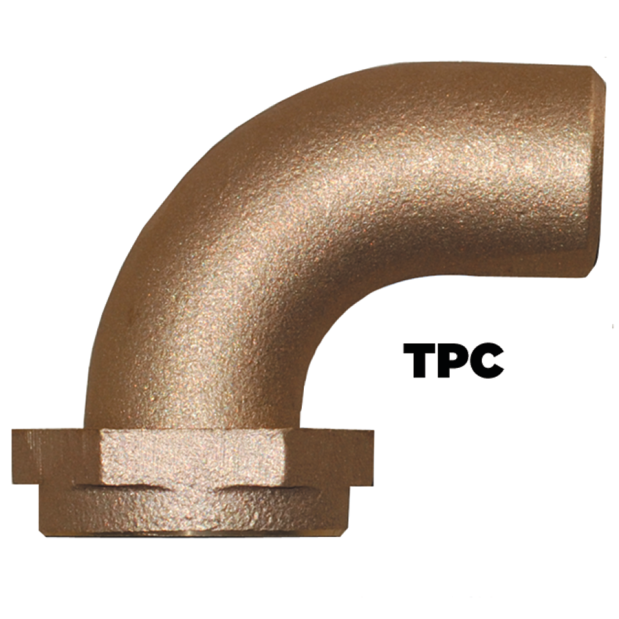

90 Degree Tail Piece TPC Series - Bronze

90° Elbow w/Female Threads
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Tail pieces are threaded with NPS (straight) female pipe threads, and are for use with Groco SV Series seacocks, or any product with straight male pipe threads. The use of these tail pieces on tapered (NPT) pipe thread is acceptable only for low pressure applications, and then only with generous use of pipe sealant or thread tape.

TPC (Tail Piece Curved) Series 90° tail pieces are comprised of two pieces. The swivel may be rotated in any direction to facilitate ease of hook-up; then the nut is tightened.

Unlike tapered pipe threads which seal by exerting pressure on the threads themselves, straight threaded pipe fittings effect sealing by the compression of a soft material onto the external thread, or with the use of a flat gasket - as used with garden hose.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
06846GRO TPC-750 TPC-750Loading...90 Deg Tail Piece TPC Series - Bronze, 3/4" Hose x 3/4" PipeLoading...
06851GRO TPC-1000 TPC-1000Loading...90 Deg Tail Piece TPC Series - Bronze, 1" Hose x 1" PipeLoading...
06852GRO TPC-1250 TPC-1250Loading...90 Deg Tail Piece TPC Series - Bronze, 1-1/4" Hose x 1-1/4" PipeLoading...
06853GRO TPC-1500 TPC-1500Loading...90 Deg Tail Piece TPC Series - Bronze, 1-1/2" Hose x 1-1/2" PipeLoading...
06854GRO TPC-2000 TPC-2000Loading...90 Deg Tail Piece TPC Series - Bronze, 2" Hose x 2" PipeLoading...
06855GRO TPC-2500 TPC-2500Loading...90 Deg Tail Piece TPC Series - Bronze, 2-1/2" Hose x 2-1/2" PipeLoading...
Add To Cart
