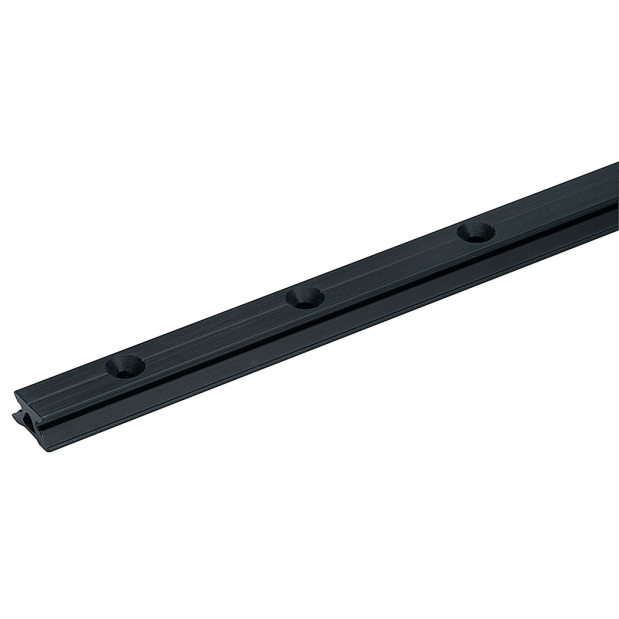

LOW-BEAM MICRO CB TRACK
13 mm Micro CB Track - Low Beam
13 mm Micro CB Track
13 mm Micro CB Track
Share THIS PAGE:

13 mm Micro CB Track - Low Beam

Series 2707 • Suitable for Dinghies, Light Daysailers, and Small Catamarans
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The Micro CB track is fully-saturated, Hardkote-anodized for maximum durability and scratch-resistance. The proportionately wide track base protects cored decks and adds stability to the track. An indent on the bottom profile makes the track easy to install on curved surfaces (such as booms) without rocking. Fastener holes fit both 4 mm metric and #8 imperial screw sizes.

Use low-beam track when it can be supported at each fastener hole; high-beam track is appropriate when spanning a cockpit or other unsupported area. Can be bent to your specifications, please call for details.

• Maximum mainsail area for mono-hulls: 110 ft² (end boom sheeting); 85 ft² (mid-boom sheeting)
• Maximum mainsail area for multi-hulls: 85 ft² (end boom sheeting); 70 ft² (mid-boom sheeting)

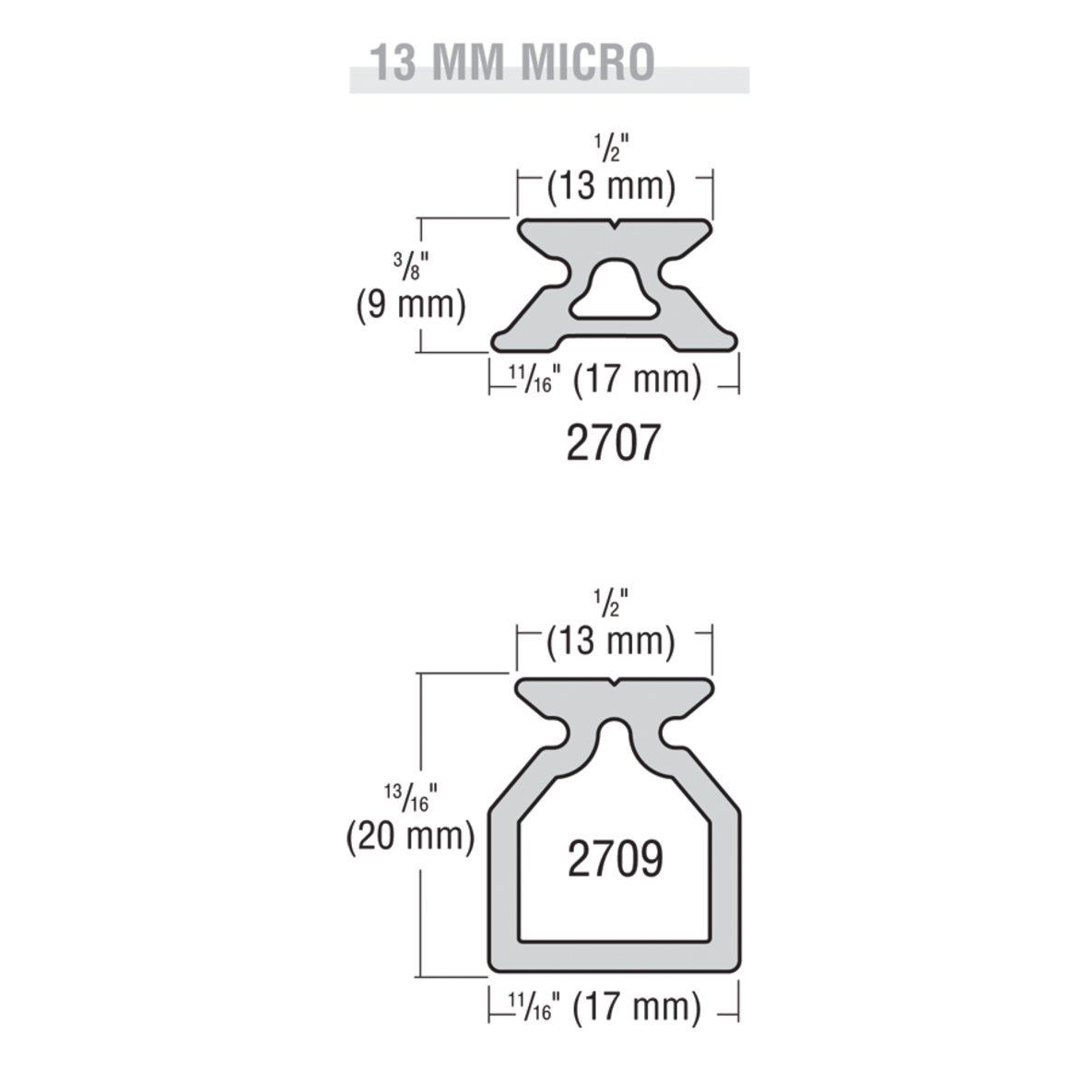

• Min. bend radius 2707 Low-Beam Track: 1.07m (42"); first fastener hole is 25mm (1") from the end of the track
• Splice link is used to align low-beam track during installation of multiple sections

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
155901HAR 2707.600MM 2707.600MMLoading...13 mm Low Beam Micro CB Track - Low Beam, 0.6 m (1.97 ft)Loading...
127322HAR 2707.1M 2707.1MLoading...13 mm Low Beam Micro CB Track - Low Beam, 1 m (3.28 ft)Loading...
173803HAR 2707.1.2M 2707.1.2MLoading...13 mm Low Beam Micro CB Track - Low Beam, 1.2 m (3.93 ft)Loading...
127321HAR 2707.2M 2707.2MLoading...13 mm Low Beam Micro CB Track - Low Beam, 2 m (6.56 ft)Loading...
192956HAR 2707.2.5M 2707.2.5MLoading...13 mm Low Beam Micro CB Track - Low Beam, 2.5 m (8.20 ft)Loading...
Add To Cart
