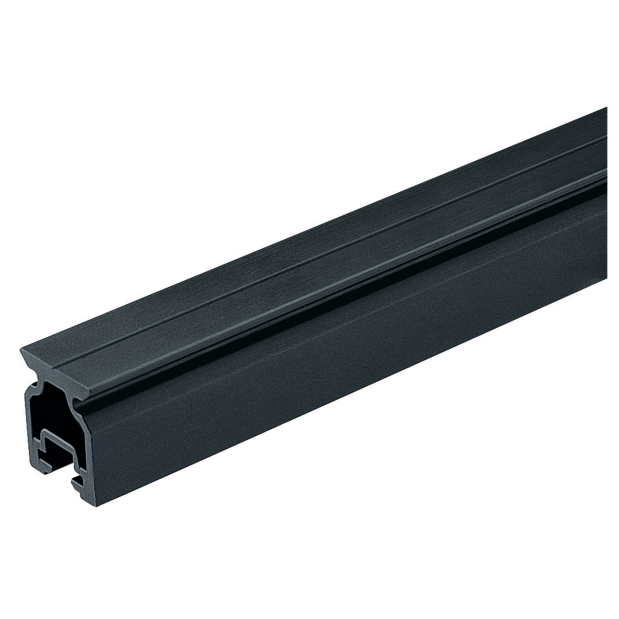

22 mm Small Boat CB Track - High Beam with Variable Hole Spacing

Series 2721 • Suitable for Large Dinghies and Keelboats to 25 ft
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

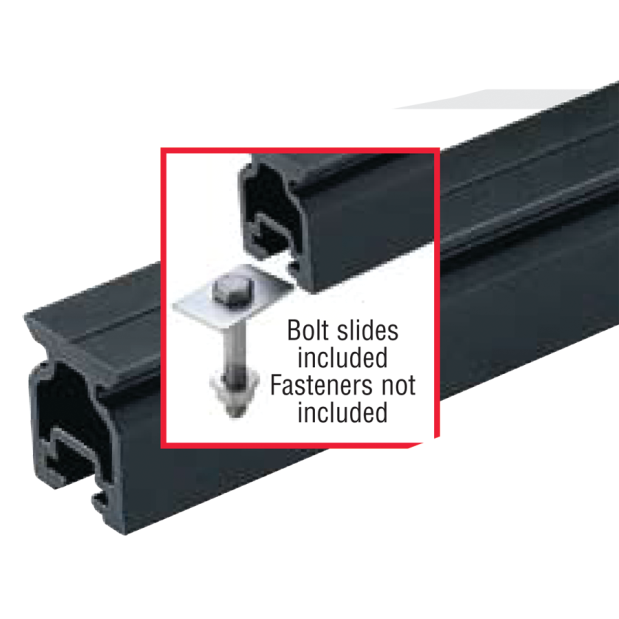

This is Harken's 22 mm high beam track with an internal channel for mounting using pre-existing holes which have unusual spacing, or need variable spacing due to obstructions, etc. The track is secured with bolt slides (included) which slide in the channel, and have a hole for the fastener (not included).

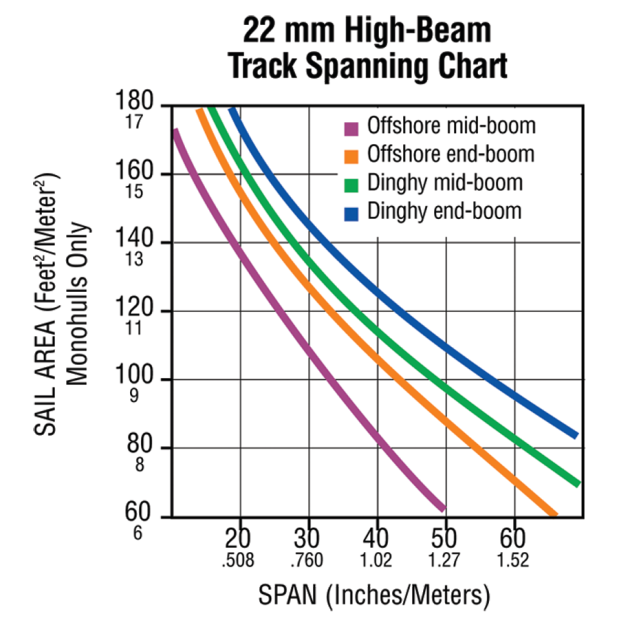

22 mm Small Boat Captive Bearing (CB) Track is used on travelers, adjustable genoa leads and as mainsail mast track. It comes in low-beam or high-beam configurations. Use low-beam track when it can be supported at each fastener hole; high-beam track is appropriate when spanning a cockpit or other unsupported area. Refer to the 22 mm High Beam Track Spanning Chart on our website for details.

High-beam track is also available with pre-drilled (fixed) holes at 100mm (3-15/16") intervals; however Retrofit Track with 4" hole spacing is available for replacing pre-existing travelers with 4" fastener spacing (eg Nicro Fico, etc.).

• Maximum mainsail area for 22 mm track ranges from 7.5 m² (80 ft²) for multi-hulls with mid-boom sheeting and standard cars, to 18.6 m² (200 ft²) for mono-hulls with end boom sheeting and high load cars
• Hard anodized aluminum construction
• Fasteners: 5 mm Hex Head
• Can be bent to your specifications, please call for details
• Min. bend radius for 2-7/8" cars: 1.07 m (42"); for 4-1/8" cars: 2.03 m (80")
• Note: due to its length, track over 8 ft long must be shipped via truck or air freight

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
137009HAR 2721.1.2M 2721.1.2MLoading...22 mm Small Boat CB Track - High Beam with Variable Hole Spacing, 1.2m (3' 11-1/4")Loading...
137010HAR 2721.1.5M 2721.1.5MLoading...22 mm Small Boat CB Track - High Beam with Variable Hole Spacing, 1.5m (4' 11-1/16")Loading...
137011HAR 2721.1.8M 2721.1.8MLoading...22 mm Small Boat CB Track - High Beam with Variable Hole Spacing, 1.8m (5' 10-13/16")Loading...
137012HAR 2721.3.6M 2721.3.6MLoading...22 mm Small Boat CB Track - High Beam with Variable Hole Spacing, 3.6m (11' 9-3/4")Loading...
