Winch- 80.3 Hydraulic Chrome
Hydraulic Radial® Self-Tailing Winches
Share THIS PAGE:

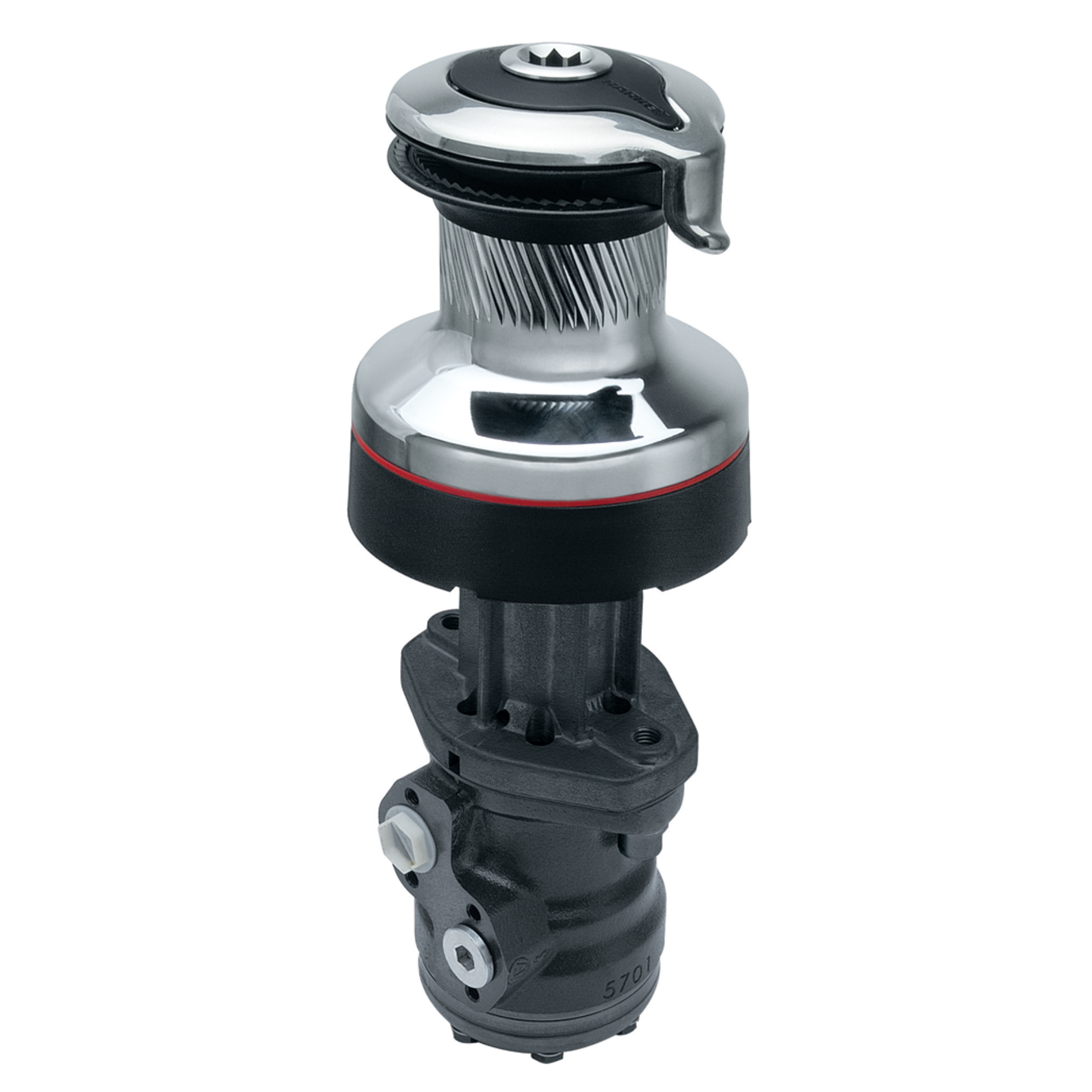

Chrome Hydraulic Radial Self-Tailing Winches

Diagonal Ribs Increase Grip, Minimize Line Wear
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Hydraulic Radial winches let you trim any size sail with the push of a button. Winches mount vertically and operate using waterproof switches located near the winch. A locking handle inserted into an unloaded winch automatically disconnects the motor gear for manual operation. Manual Radial winches easily convert to power - they have identical hole patterns and don’t require an adapter plate. Harken hydraulic motors attach to the central driveshaft and drive through the winch transmission gears for multi-speed mechanical advantage - the low power first gear for fast trimming, the higher power second (or third) gear for fine-tuning loaded sheets. This allows use of a smaller, more efficient motor that saves weight and cost. • Available with chromed bronze winch drums • Each winch requires 2-3 windlass-style control switches (1st gear/2nd gear/3rd gear; sold separately), which can be used to control both the hydraulic pump and/or the valve to the winch - depending on the type of hydraulic power source • All hydraulic fittings are industry standard for ease of installation and service • Composite roller bearings reduce friction under load and don't require lubrication • Load-carrying gears and pins are 17-4PH stainless steel for strength and durability • Maximum hydraulic pressure is 120 bar (1740 psi); winch speed will vary with flow rate, optimal is 15 lpm (4 gpm) • Table: Height and Line Entry are height above deck; Depth is extension below deck

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
363389HAR 50.2STHC 50.2STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 50ST - Two SpeedLoading...
363401HAR 60.2STHC 60.2STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 60ST - Two SpeedLoading...
363413HAR 60.3STHC 60.3STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 60ST - Three SpeedLoading...
363425HAR 70.2STHC 70.2STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 70ST - Two SpeedLoading...
363437HAR 70.3STHC 70.3STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 70ST - Three SpeedLoading...
363449HAR 80.2STHC 80.2STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 80ST - Two SpeedLoading...
363461HAR 80.3STHC 80.3STHCLoading...Chrome Hydraulic Radial Self-Tailing Winches, 80ST - Three SpeedLoading...
Add To Cart
