External Acess System - Track, Cars & Endstops

For Hull Topside Maintenance Operations
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The unobtrusive, permanently installed, External Access System provides mega yacht crews with a secure system for working outboard along the hull.

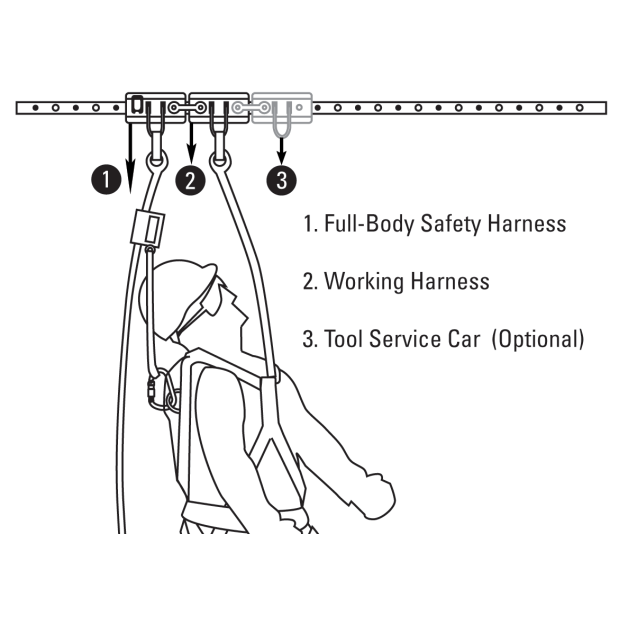

The system is made up of joined cars that allow the attachment of a personal suspension chair or harness to one, and a required fall-arrest safety harness to the other. A third car may be linked for attaching a tool carrier. The system's CE certification is among the most respected marks in the world and is unique in the marine market.

Cars are constructed of solid aluminum, with captive Torlon® bearings to handle high loads and reduce friction, as you smoothly move the pinstop car and lock it to another position on the track.
Cars and track come in black Hardkote-anodized or clear-anodized finishes for corrosion protection, durability, and to match the esthetics of your yacht. Track can be slightly bent to match the contour of the hull, within car radius limitations.
Track and car assemblies mount and slide in multiple positions: cars face outward when mounted on a vertical surface, downward when mounted under a horizontal surface.

• Ideal for window washing, hull topsides cleaning, etc.
• Provides freedom of movement with the ability to lock into position
• Suggested support systems include a full-body safety harness, plus a working harness or support platform
• 8mm (5/16") countersunk fastener holes at 100 mm (3-15/16") spacing
• Single locking car can be used as an independent tool carrier
• Contact us to special order stainless steel systems
• CE certified for human suspension

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY

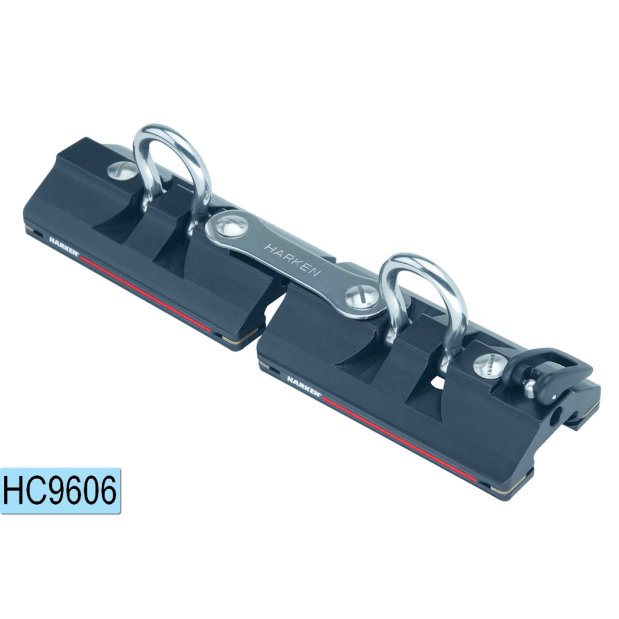

373783HAR HC9606 HC9606Loading...External Acess System - Track, Cars & Endstops, 27mm 2-Car External Access Car Assembly With Coupler - Black 10-3⁄4"Loading...

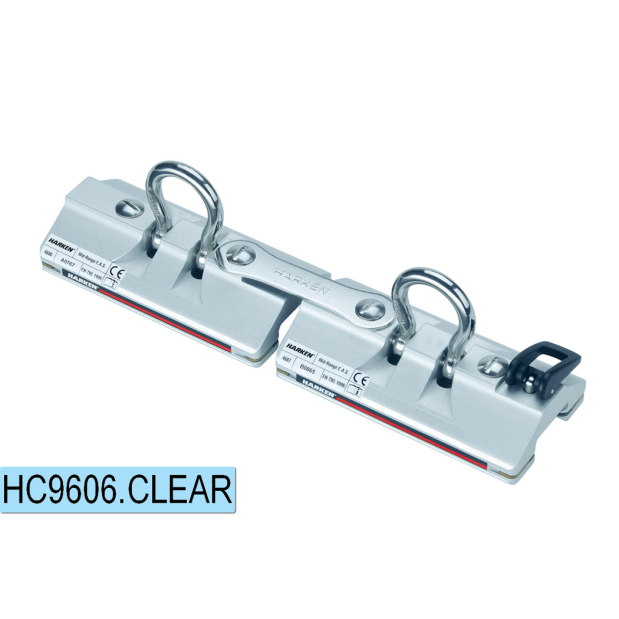

373784HAR IN9606.CLEAR IN9606.CLEARLoading...External Acess System - Track, Cars & Endstops, 27mm 2-Car External Access Car Assembly With Coupler - Clear 10-3⁄4"Loading...
381153HAR IN9608 IN9608Loading...External Acess System - Track, Cars & Endstops, 27mm Single External Access Car - Black 5-5⁄16"Loading...
368353HAR IN9565 IN9565Loading...External Acess System - Track, Cars & Endstops, 27mm Single External Access Car w⁄Pinstop - Black 5-3⁄16"Loading...
373785HAR IN1643.3M IN1643.3MLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Black 9.84 ftLoading...
373786HAR IN1643.3M.CLR IN1643.3M.CLRLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Clear 9.84 ftLoading...
373787HAR IN1643.3.6M IN1643.3.6MLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Black 11.81 ftLoading...
373788HAR IN1643.3.6M.CLR IN1643.3.6M.CLRLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Clear 11.81 ftLoading...
373789HAR IN1643.6M IN1643.6MLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Black 19.69 ftLoading...
373790HAR IN1643.6M.CLR IN1643.6M.CLRLoading...External Acess System - Track, Cars & Endstops, 27mm High Load Pinstop Track - Clear 19.69 ftLoading...
373791HAR IN9561 IN9561Loading...External Acess System - Track, Cars & Endstops, 27mm Aluminum Endstops (Pair) - Black 2-1⁄4"Loading...

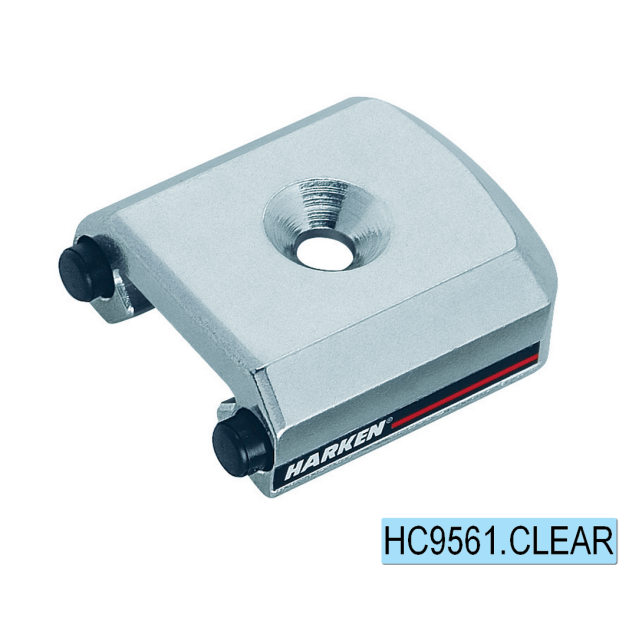

373792HAR IN9561.CLEAR IN9561.CLEARLoading...External Acess System - Track, Cars & Endstops, 27mm Aluminum Endstops (Pair) - Clear 2-1⁄4"Loading...

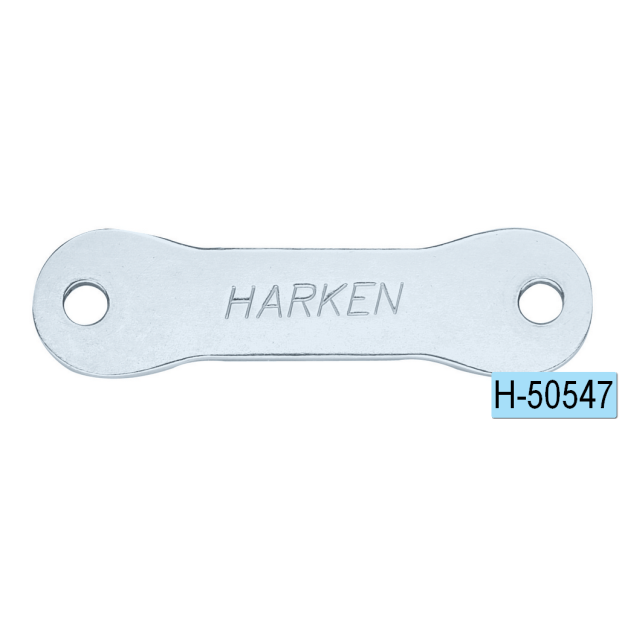

381156HAR H-50547 H-50547Loading...External Acess System - Track, Cars & Endstops, Car Coupler Plate w⁄Fasteners ---Loading...
