Winch- 40ST Aluminum
Radial® Design Self-Tailing Winches  -  Aluminum & Chrome
Two Speed Aluminum Radial Design Self-Tailing Winches
Two Speed Aluminum Radial Design Self-Tailing Winches
Two Speed Aluminum Radial Design Self-Tailing Winches
Share THIS PAGE:

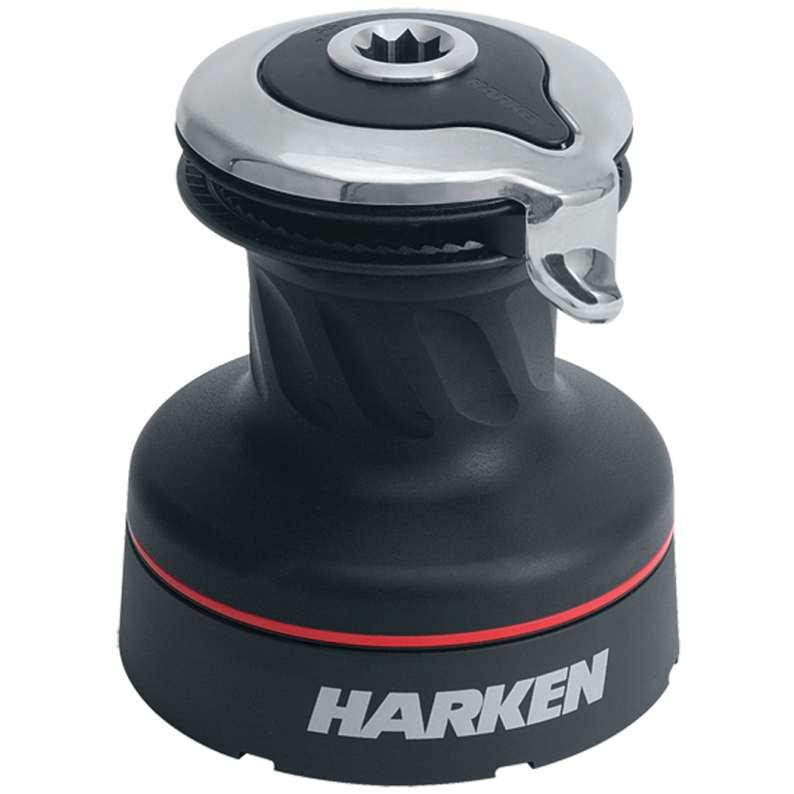

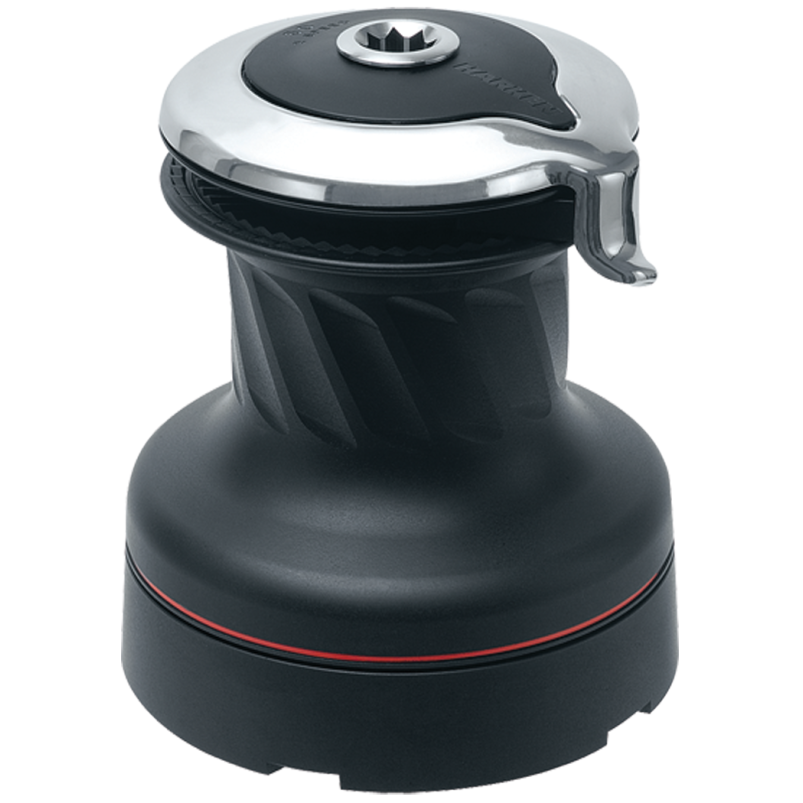

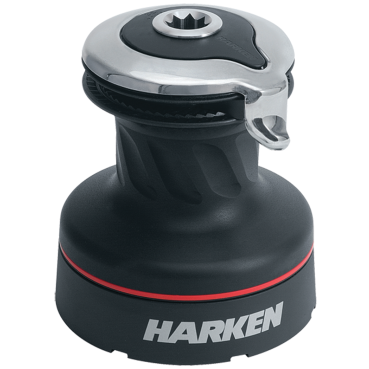

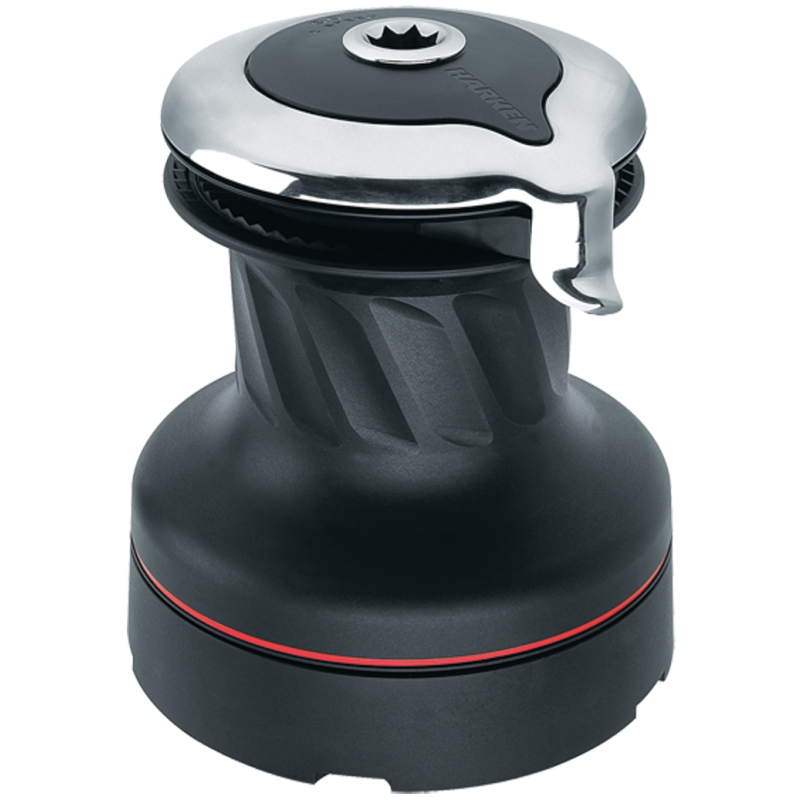

Radial Aluminum Two-Speed Self-Tailing Winches

Diagonal Ribs Increase Grip, Minimize Line Wear
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
A complete re-design from the deck up, Radial winch gripping surfaces are specifically engineered for each winch size and drum material. They feature diagonal ribs to maximize gripping power, while greatly reducing line wear. When easing a line, the angle of the ribs stops the line from rising, thus preventing overrides and providing a smooth, controlled release as the line exits the winch.

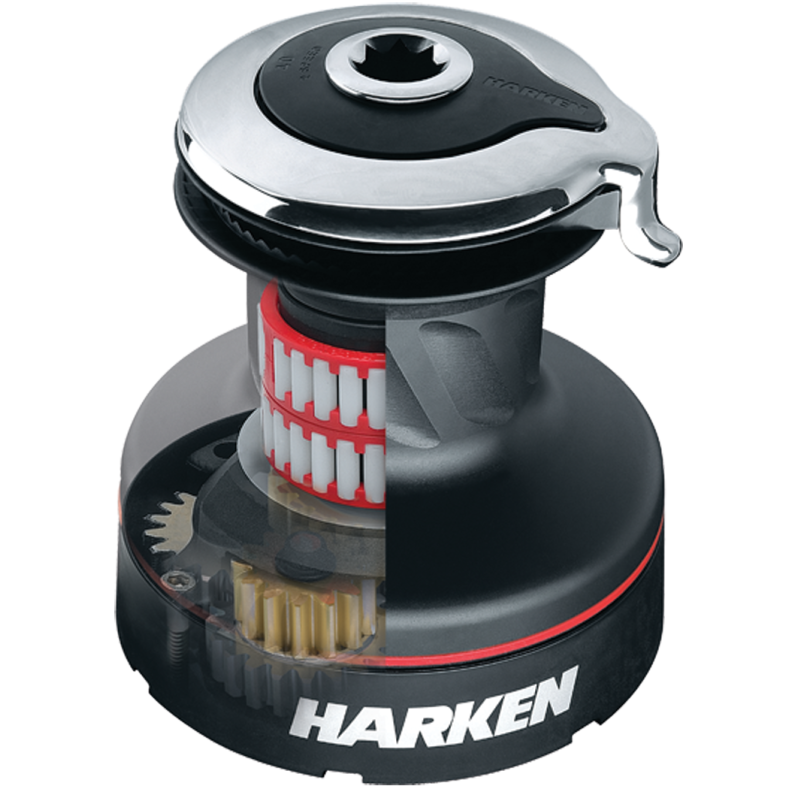

Seasonal maintenance is now exceptionally easy - the top lifts out as a single unit, making reassembly quick and mistake-free. Composite roller bearings reduce friction under load and don’t require lubrication.

• Radial drum pattern performs as well with high tech line as with older cordage
• Lightweight/high strength/corrosion-resistant materials - composite self-tailing jaws, skirt, roller bearings, and bushings
• Aluminum drum models provide additional, substantial, weight savings
• Load-carrying gears and pins are 17-4PH stainless steel for strength and durability
• Snap-fit design of roller bearings keeps bearings captive in a Delrin® cage when drum is removed for maintenance
• Winch tops are completely covered, so fingers and clothing don't get caught in moving parts
• Snap-on/off base skirt allows for easy one-person installation, without having to remove the drum

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
363375HAR 35.2STA 35.2STALoading...35ST 2 Speed Aluminum Radial Winch - 5⁄16" - 1⁄2" Line SizeLoading...
363378HAR 40.2STA 40.2STALoading...40ST 2 Speed Aluminum Radial Winch - 5⁄16" - 1⁄2" Line SizeLoading...
363382HAR 46.2STA 46.2STALoading...46ST 2 Speed Aluminum Radial Winch - 5⁄16" - 9⁄16" Line SizeLoading...
363386HAR 50.2STA 50.2STALoading...50ST 2 Speed Aluminum Radial Winch - 5⁄16" - 9⁄16" Line SizeLoading...
363390HAR 60.2STA 60.2STALoading...60ST 2 Speed Aluminum Radial Winch - 5⁄16" - 5⁄8" Line SizeLoading...
363414HAR 70.2STA 70.2STALoading...70ST 2 Speed Aluminum Radial Winch - 3⁄8" - 11⁄16" Line SizeLoading...
363438HAR 80.2STA 80.2STALoading...80ST 2 Speed Aluminum Radial Winch - 3⁄8" - 13⁄16" Line SizeLoading...
Add To Cart
