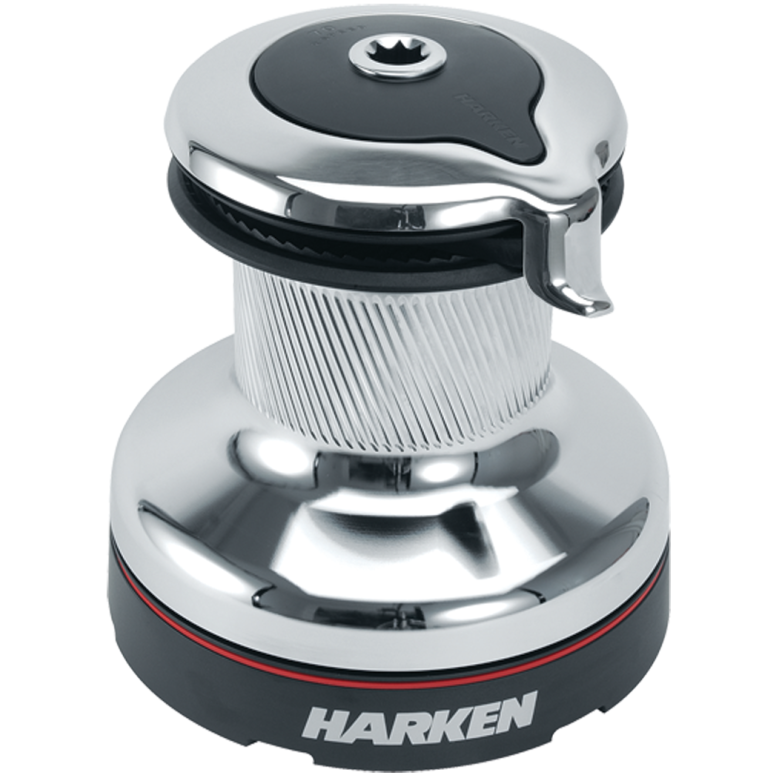

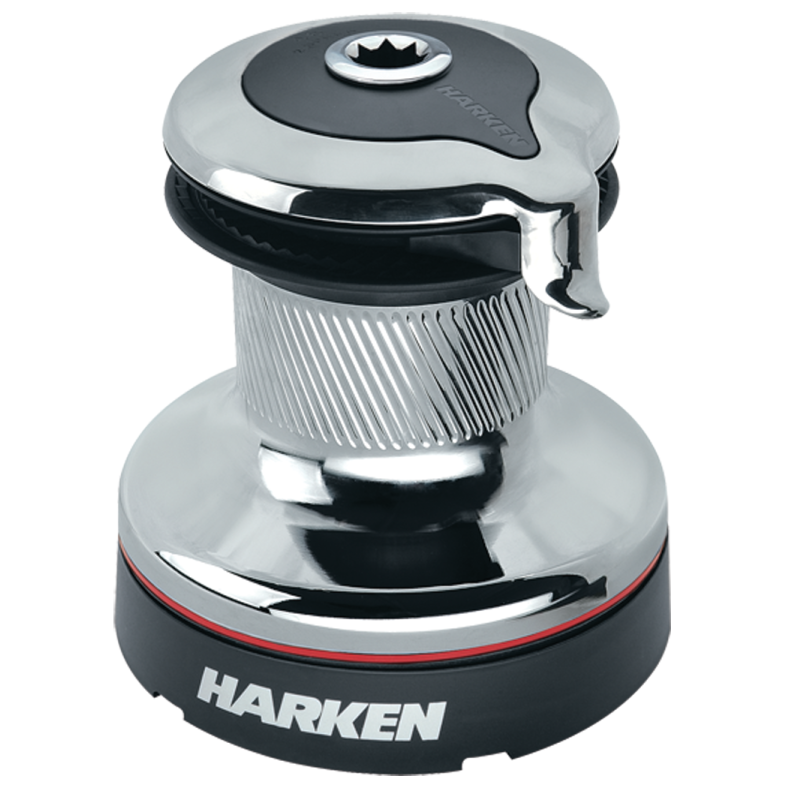

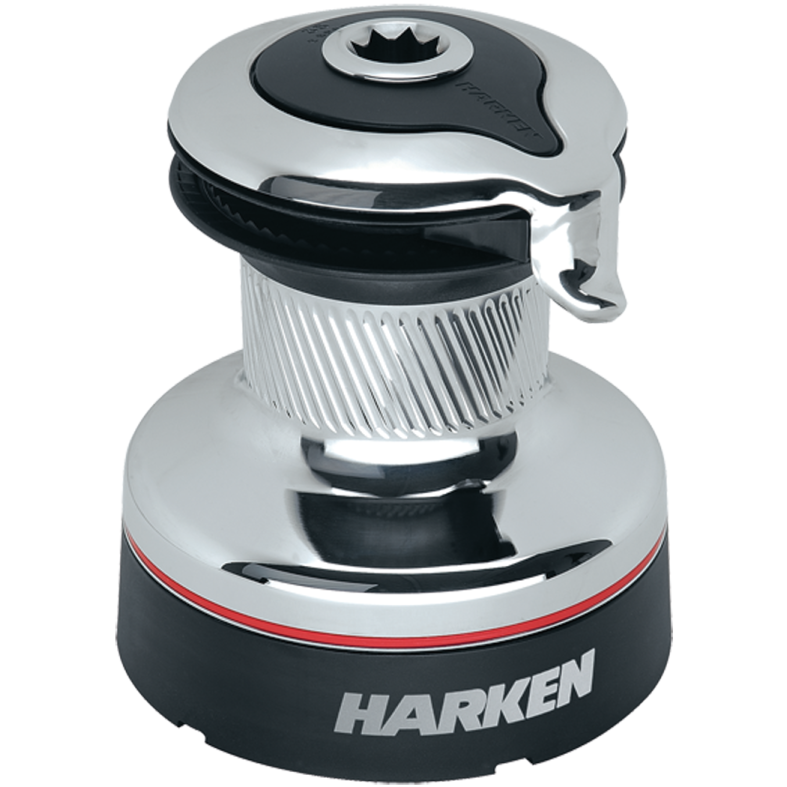

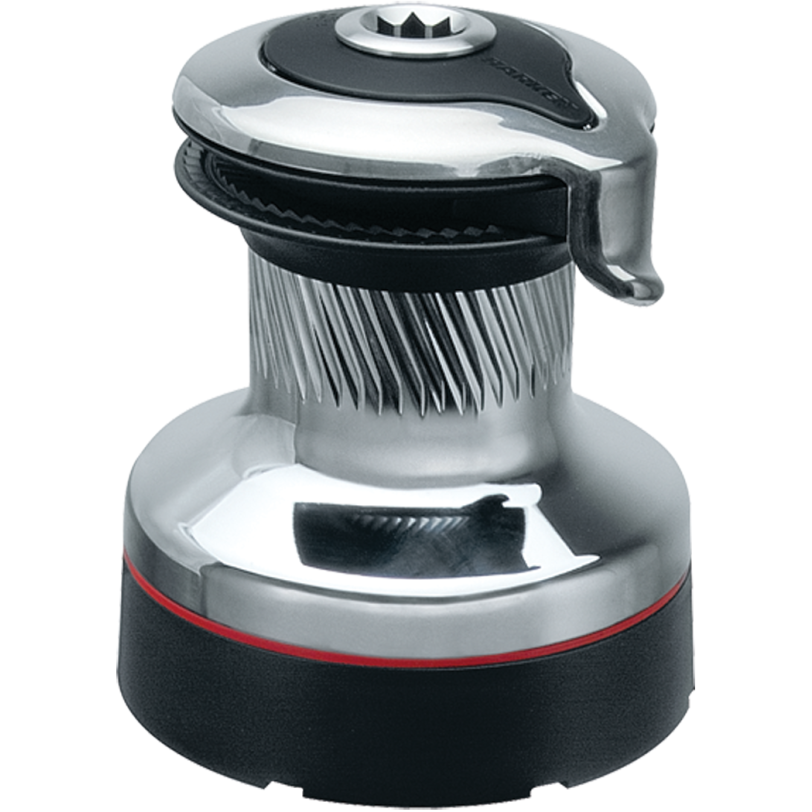

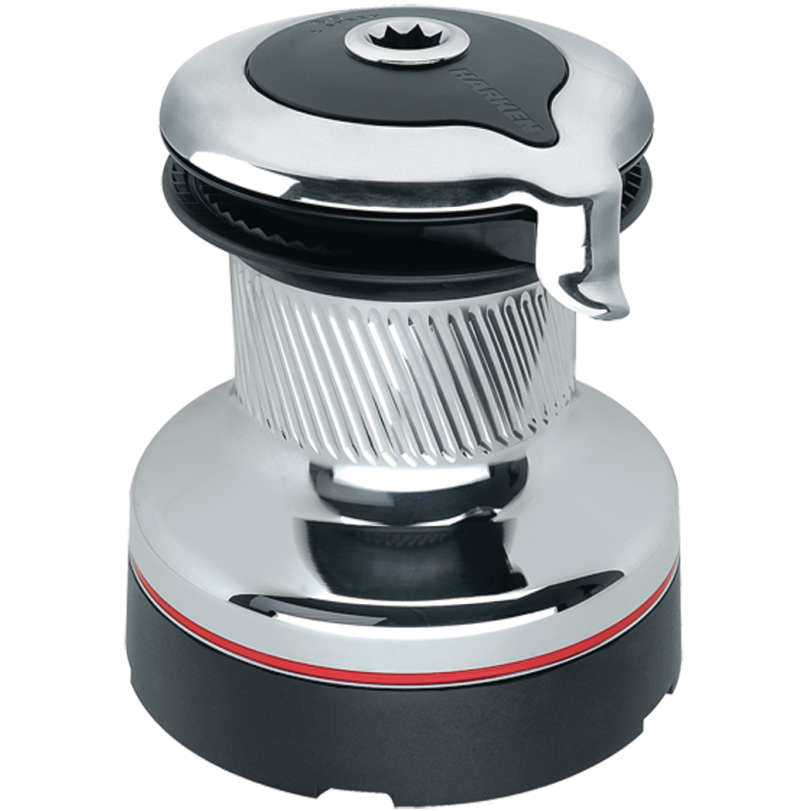

Winch- 70ST Chrome
Two Speed Chrome Radial Design Self-Tailing Winches

Radial Chrome Two-Speed Self-Tailing Winches

Diagonal Ribs Increase Grip, Minimize Line Wear
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).
A complete re-design from the deck up, Radial winch gripping surfaces are specifically engineered for each winch size and drum material. They feature diagonal ribs to maximize gripping power, while greatly reducing line wear. When easing a line, the angle of the ribs stops the line from rising, thus preventing overrides and providing a smooth, controlled release as the line exits the winch. Because chrome is more slippery than aluminum, the ribs on chrome radial winches are spaced closer together to increase friction.
Seasonal maintenance is now exceptionally easy - the top lifts out as a single unit, making reassembly quick and mistake-free. Composite roller bearings reduce friction under load and don’t require lubrication.

• Radial drum pattern performs as well with high tech line as with older cordage
• Lightweight/high strength/corrosion-resistant materials - composite self-tailing jaws, skirt, roller bearings, and bushings
• Aluminum drum models provide additional, substantial, weight savings
• Load-carrying gears and pins are 17-4PH stainless steel for strength and durability
• Snap-fit design of roller bearings keeps bearings captive in a Delrin® cage when drum is removed for maintenance
• Winch tops are completely covered, so fingers and clothing don't get caught in moving parts
• Snap-on/off base skirt allows for easy one-person installation, without having to remove the drum
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
363376HAR 35.2STC 35.2STCLoading...35STC 2 Speed Chrome Radial Winch - 5⁄16" - 1⁄2" Line SizeLoading...
363379HAR 40.2STC 40.2STCLoading...40STC 2 Speed Chrome Radial Winch - 5⁄16" - 1⁄2" Line SizeLoading...
363383HAR 46.2STC 46.2STCLoading...46STC 2 Speed Chrome Radial Winch - 5⁄16" - 9⁄16" Line SizeLoading...
363387HAR 50.2STC 50.2STCLoading...50STC 2 Speed Chrome Radial Winch - 5⁄16" - 9⁄16" Line SizeLoading...
363391HAR 60.2STC 60.2STCLoading...60STC 2 Speed Chrome Radial Winch - 5⁄16" - 5⁄8" Line SizeLoading...
363415HAR 70.2STC 70.2STCLoading...70STC 2 Speed Chrome Radial Winch - 3⁄8" - 11⁄16" Line SizeLoading...
363439HAR 80.2STC 80.2STCLoading...80STC 2 Speed Chrome Radial Winch - 3⁄8" - 13⁄16" Line SizeLoading...
