TS-2000B Tank Sentry - with High and Low Level Alarms

Suited for Water or Diesel Fuel Tanks

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The TS-2000B programmable monitor provides reliable and accurate tank fluid levels for applications where both high and low level alarms are required - such as diesel tanks, where fill-without-spill is desired. It features remote alarm capability for the helm station or cockpit.
The sensor is a tube filled with pressurized air - there are no moving parts to foul, or electrical components inside the tank. It is unaffected by floating solids or stray current.
Comes complete with a monitor panel, 30 ft of shielded 18/3 wire, (1) SYM-2Q air pump/sensor module, 10 ft of urethane tubing, (1) TPA-1250 1-1/4" tank penetration assembly, and 3 heat shrink wire connectors.
Although designed for fuel or drinking water tanks, this panel can be used with any fluid, EXCEPT gasoline.

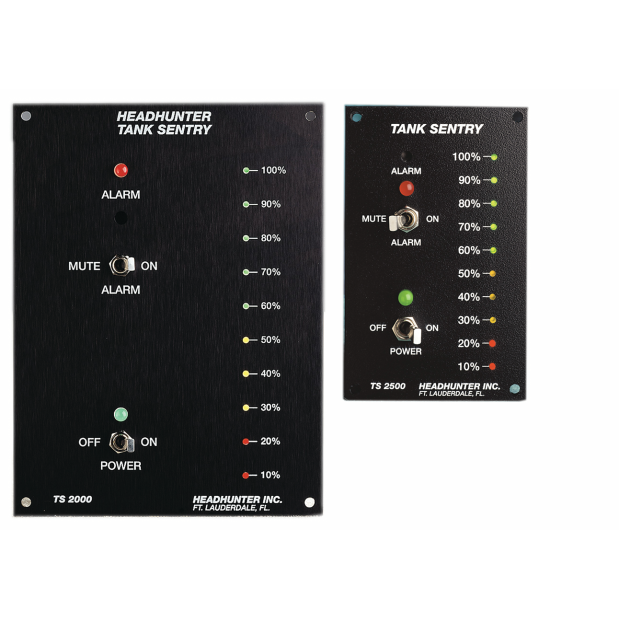

• LED display shows tank fluid level in 10% increments
• Constant tank status information - no need to flip switches
• Operates on 12V to 32V DC power
• Capable of monitoring tanks from 6" to 6 ft deep, right out of the box - with options to 11 ft deep
• Programmable visual and audible alarms with mute switch
• Panel dimensions: 4-5/8"W x 6-1/8"H (118mm x 156mm)
• Repeater panels are available for a second display location
• DO NOT use with gasoline

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHeadhunter#AvailabilityDescriptionUOMYour PriceQTY
201497HDH TS2000B TS2000BLoading...TS-2000B Tank Sentry - with High and Low Level Alarms, Tank Sentry Panel - High & Low Level Alarm & PVC Tank SenderLoading...
180949HDH TS2000B-SST TS2000B-SSTLoading...TS-2000B Tank Sentry - with High and Low Level Alarms, Tank Sentry Panel - High & Low Level Alarm & Stainless Steel Tank Sender (SST)Loading...
177728HDH EL250 EL250Loading...TS-2000B Tank Sentry - with High and Low Level Alarms, 90 Elbow Fitting for 1/4" OD TubingLoading...
