Backstay and Inner Forestay Open Body Adjusters
Backstay and Inner Forestay Open Body Adjusters

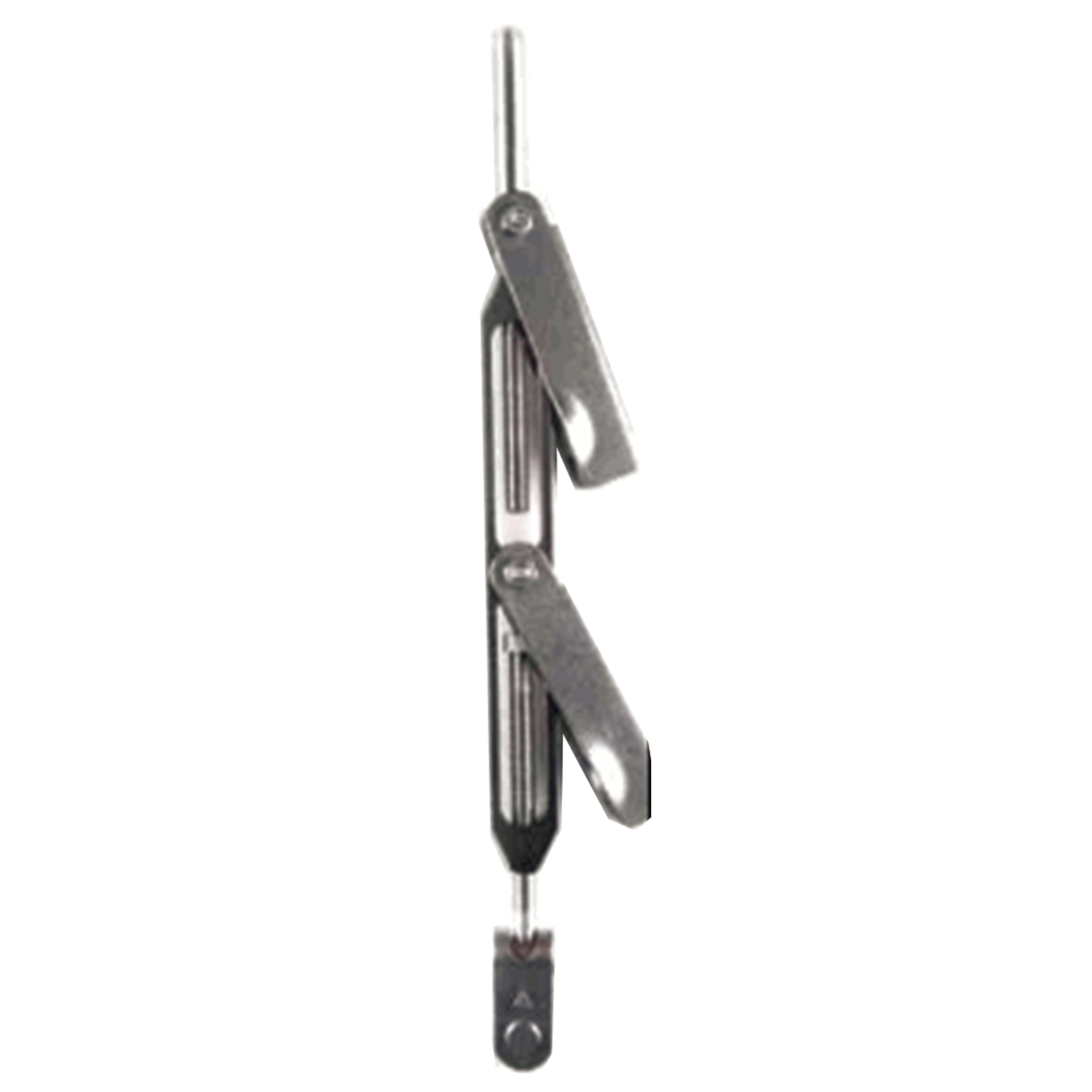

Backstay and Inner Forestay Open Body Adjusters, 3/16" Wire; Jaw to Swage
SKU: 157107 Item ID: JOH 02-106
Description
The 02 series is a long body backstay turnbuckle for larger boats. Designed with two handles to allow for quick mast bending, even under strain.
• Positive locking without cotter pins or check nuts
• No sharp corners to tear sails, threads fully protected
• Adjustment is quick and requires no tools, just turn handles from lock position to adjust
• Breaking strength: 7,000 lbs. and safe working load: 2,800 lbs.
• Pin Diameter: 3/8", Thread size: 3/8-24
• Calibrated turnbuckles can be special ordered
Specifications
MFG #:02-106
| Adjuster3/16" Jaw to Swage
Style
Jaw to Swage
Adj. Length
6"
Type
Jaw to Swage
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Wire Dia.
3/16"
Pin Dia.
3/8"
Thread
3/8-24
Barcode
762799021061
