CPX Vertical Windlasses

1430 lb Max. Pull • Typical Boat Length 33 to 42 ft • SS Top Works with Weight-Saving Aluminum Base
By: Lewmar

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Originating from customer feedback asking for a lighter windlass, Lewmar developed the CPX range of lightweight vertical windlasses to complement their popular all stainless steel V-Series.
CPX windlasses feature the tried and tested V-Series worm-wheel gearbox architecture and use quality materials throughout - hard anodized aluminum for the base and strong cast stainless steel for the gypsy top cap and chain pipe cover.

• Suitable for most boats from 33 to 42 ft in length
• 15% lighter than comparable all-stainless windlasses
• For rope, chain, or combination rodes (3-strand or 8-plait rope required)
• Available in low profile gypsy only or gypsy/capstan models
• Modern architecture with fewer parts for increased reliability
• Motor can be rotated to any of seven positions for easier installation
• Designed for easier servicing
• Stainless steel top cap, gypsy and chain pipe with alloy base
• Worm-gear driven for ultimate reliability and safety
• Typical deck thickness is 1-1/2" to 2" supplement thinner decks with a suitable backing plate, if necessary; an optional extended shaft version is available for thicker decks by special order; please inquire at 800-426-6930
• IP68 motor gearbox (suitable for continuous immersion) is available by special order
• Optional Manual Recovery Adapter is sold separately (#66840054 for gypsy only model; #66840056 for gypsy/drum model)
• 12 volt motor is standard; 24 volt models available by special order
• Note that G4, G40, G43, and High Test (HT) chains are equivalent for sizing purposes

What's in the box: windlass, mounting gasket and studs, up/down rocker switch, a dual direction solenoid (contactor), and a circuit breaker

Is one of these windlasses a good choice for your boat? You can use the recommended typical boat lengths provided or, for a more rigorous determination, take the total weight of your ground tackle (anchor + rode) and multiply by 4. The maximum pull capability of the windlass should be at least as large as the resulting number.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLewmar#AvailabilityDescriptionUOMYour PriceQTY

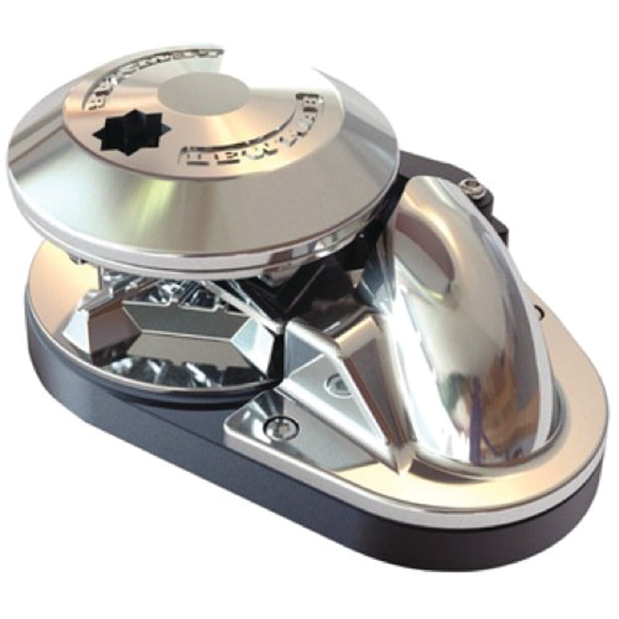

448684LEW 6672011000 6672011000Loading...CPX2 Low Profile Vertical Windlass Kit - 1433 lb Max Pull for Boats ∼33 - 42 ft, 1/4" HT/BBB Chain, 1/2" 3-Strand or 8-Plait Line, 12V - with Switch PackageLoading...
430478LEW 6672011001 6672011001Loading...CPX2 Low Profile Vertical Windlass Kit - 1433 lb Max Pull for Boats ∼33 - 42 ft, 5/16" HT (Only) Chain, 1/2 - 5/8" 3-Strand or 5/8" 8-Plait Line, 12V - with Switch PackageLoading...
