H2 GYPSY 12V RC10MM 700W WINDLASS
H2 Horizontal Windlasses
Lewmar H Series Windlass
Share THIS PAGE:

H2 Horizontal Windlasses

1450 lb Max. Pull • Typical Boat Length 34 - 43 Feet
By: Lewmar

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The Lewmar H-series windlasses use the same reliable worm gearbox technology that Lewmar developed for the Concept and V-Series windlass ranges. The integral solenoid pack simplifies wiring and is protected by the durable maincase. These windlasses feature full power up/down functionality right out of the box. Easy, one-piece, above deck installation.

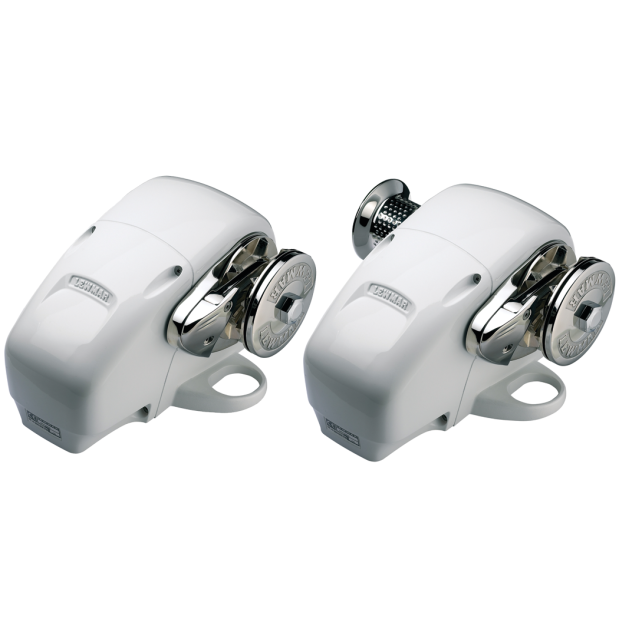

Note that the H2 and H3 Series of windlasses share the same housing. The difference between them is in the power of the series wound motors — 700W vs. 1000W.

• Suitable for most boats from 34 - 43 ft in length
• Dual direction operation gives total control when both retrieving or lowering the anchor
• Sealed waterproof unit requires minimum maintenance - even works under water
• Aluminium & composite main case for reduced weight
• Stainless steel warping drum with unique "wear & abrasion reduction pattern," can be operated independently of the gypsy
• Manual Recovery System (LEW#66840045) can be installed as an option
• All gypsies are designed for 5/8" 3-strand line
• Note that G4, G40, G43, and High Test (HT) chains are equivalent for sizing purposes
• 3-year warranty

What's in the box — Complete with windlass, deck gasket, mounting bolts, guarded rocker switch, breaker, and integral dual-direction solenoid.

Is one of these windlasses a good choice for your boat? You can use the recommended typical boat lengths provided or, for a more rigorous determination, take the total weight of your ground tackle (anchor + rode) and multiply by 4. The maximum pull capability of the windlass should be at least as large as the resulting number.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLewmar#AvailabilityDescriptionUOMYour PriceQTY
145906LEW 69600533 69600533Loading...H2 Gypsy Only Windlass - Max Pull 1450 lb for Boats ∼34 - 43 ft, 5/16" HT (Only) Chain, 9/16" or 5/8" 3-Strand or 8-Plait Line, 12VLoading...
145907LEW 69600534 69600534Loading...H2 Gypsy Only Windlass - Max Pull 1450 lb for Boats ∼34 - 43 ft, 3/8" BBB (Only) Chain, 5/8" (Only) 3-Strand or 8-Plait Line, 12VLoading...
145908LEW 69600537 69600537Loading...H2 Gypsy Drum Windlass - Max Pull 1450 lb for Boats ∼34 - 43 ft, 5/16" HT (Only) Chain, 9/16" or 5/8" 3-Strand or 8-Plait Line, 12VLoading...
145909LEW 69600538 69600538Loading...H2 Gypsy Drum Windlass - Max Pull 1450 lb for Boats ∼34 - 43 ft, 3/8" BBB (Only) Chain, 5/8" (Only) 3-Strand or 8-Plait Line, 12VLoading...
165864LEW 69600535 69600535Loading...H2 Gypsy Only Windlass - Max Pull 1575 lb for Boats ∼34 - 43 ft, 5/16" HT (Only) Chain, 9/16" or 5/8" 3-Strand or 8-Plait Line, 24VLoading...
Add To Cart
