V4 201 GYPSY 12V VERTICAL WINDLASS
Lewmar V-Series Windlasses
Share THIS PAGE:

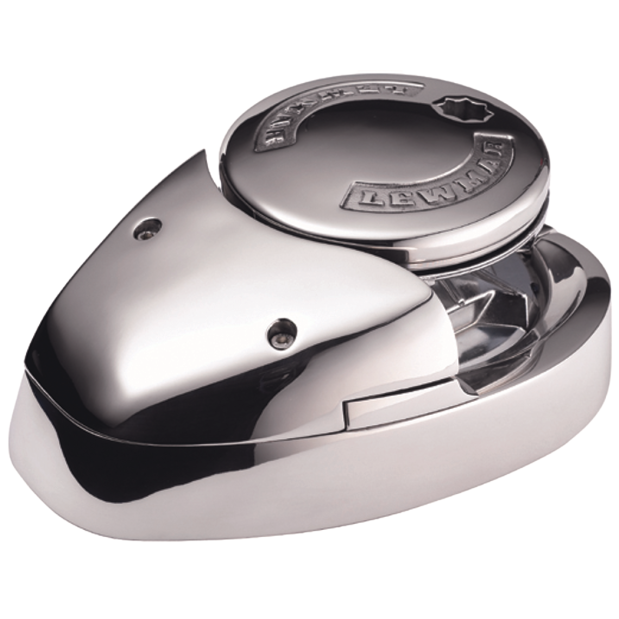

V4 & V5 Vertical Windlasses

2750 to 3300 lb Max. Pull • Typical Boat Length - 44 to 66 ft
By: Lewmar

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Striking, polished stainless steel, the Lewmar V-Series windlasses utilize a reliable worm drive gearbox, and accept rope-chain or all chain rodes.

• Suitable for most boats from 44 to 66 ft in length; see Spec Table for details
• Sleek windlass for power or sailboats
• For rope, chain, or combination rodes (3-strand or 8-plait rope required)
• Automatic rope/chain transition
• Power up/power down, with manual free-fall feature
• Cone clutches provide large braking surface for precise control when lowering in free-fall mode
• Manual recovery system is available as a separate option by special order; please inquire at 800-426-6930
• Standard 12 volts, 24 volts is available • Typical deck thickness is 1" to 2-1/2"
• Note that G4, G40, G43, and High Test (HT) chains are equivalent for sizing purposes
• 3-year warranty

What's in the box — windlass, mounting studs and base gasket, up/down rocker switch, dual-direction solenoid, and circuit breaker

Is one of these windlasses a good choice for your boat? You can use the recommended typical boat lengths provided or, for a more rigorous determination, take the total weight of your ground tackle (anchor + rode) and multiply by 3. The maximum pull capability of the windlass should be at least as large as the resulting number.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLewmar#AvailabilityDescriptionUOMYour PriceQTY
171463LEW 66910078-143 66910078-143Loading...V4 Gypsy Only Windlass - Max Pull 2750 lb for Boats ∼44 - 56 ft, 5⁄16" HT Chain, 1/2" 3-Strand Rope, 12VLoading...
171461LEW 66910080-143 66910080-143Loading...V4 Gypsy Only Windlass - Max Pull 2750 lb for Boats ∼44 - 56 ft, 3⁄8" HT Chain, 5/8" 3-Strand Rope, 12VLoading...
171460LEW 66910086-143 66910086-143Loading...V4 Gypsy/Drum Windlass - Max Pull 2750 lb for Boats ∼44 - 56 ft, 5⁄16" HT Chain, 1/2" 3-Strand Rope, 12VLoading...
171458LEW 66910088-143 66910088-143Loading...V4 Gypsy/Drum Windlass - Max Pull 2750 lb for Boats ∼44 - 56 ft, 3⁄8" HT Chain, 5/8" 3-Strand Rope, 12VLoading...
171464LEW 66910094-145 66910094-145Loading...V5 Gypsy Only Windlass - Max Pull 3190 lb for Boats ∼48 - 66 ft, 56 ft, 5⁄16" HT Chain, 1/2" 3-Strand Rope, 12VLoading...
171466LEW 66910096-145 66910096-145Loading...V5 Gypsy Only Windlass - Max Pull 3190 lb for Boats ∼48 - 66 ft, 3⁄8" HT Chain, 5/8" 3-Strand Rope, 12VLoading...
171468LEW 66910102-145 66910102-145Loading...V5 Gypsy/Drum Windlass - Max Pull 3190 lb for Boats ∼48 - 66 ft, 56 ft, 5⁄16" HT Chain, 1/2" 3-Strand Rope, 12VLoading...
171471LEW 66910104-145 66910104-145Loading...V5 Gypsy/Drum Windlass - Max Pull 3190 lb for Boats ∼48 - 66 ft, 3⁄8" HT Chain, 5/8" 3-Strand Rope, 12VLoading...
192542LEW 66910092-144 66910092-144Loading...V4 Gypsy Only Windlass - Max Pull 3300 lb for Boats ∼46 - 60 ft, 3⁄8" HT Chain, 5/8" 3-Strand Rope, 24VLoading...
