1/4IN NPT BRS SPRING LOADED VALVE
Brass Spring Check Valve
Share THIS PAGE:

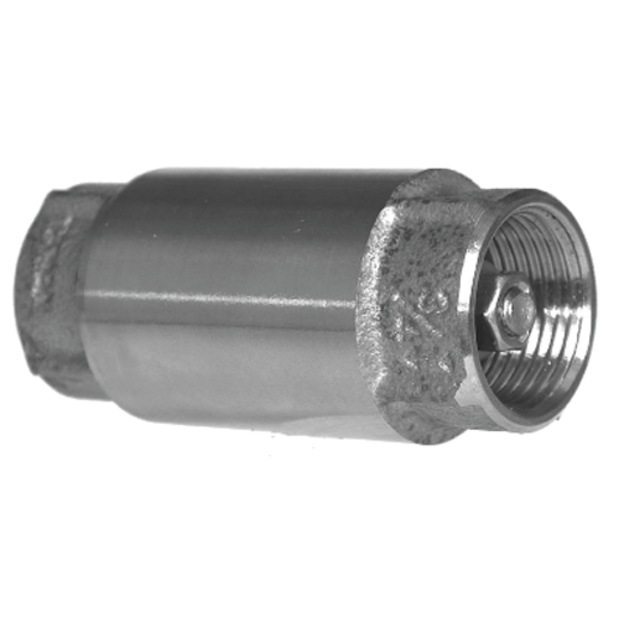

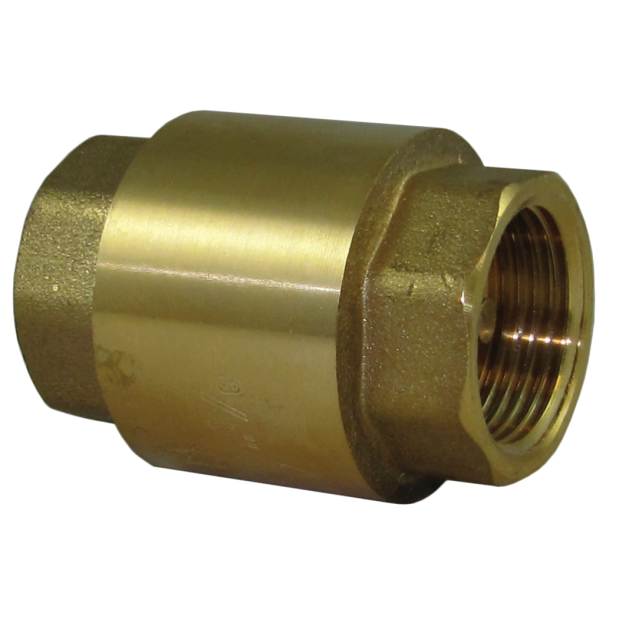

Brass Spring Check Valve

Stainless Steel Spring Loaded Bronze Poppet

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

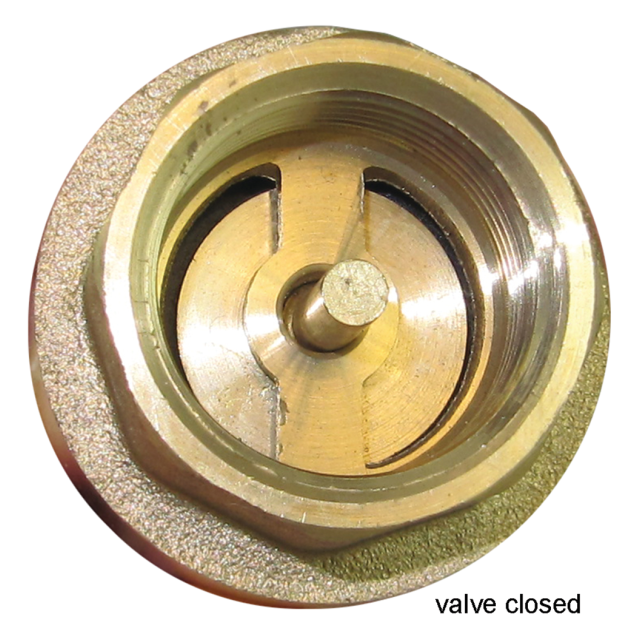

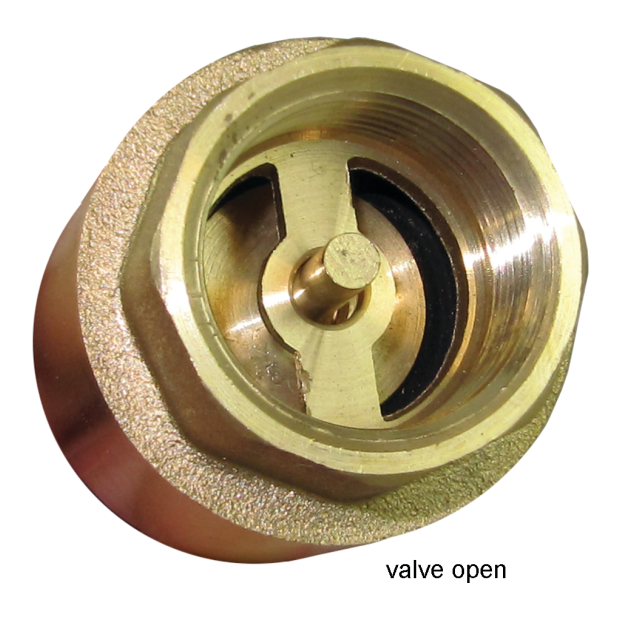

These valves have a moderately loaded spring that moves a brass disc along the longitudinal axis.
The sealing mechanism is a neoprene O-ring mounted on the outer edge of the disc.

• Positive seal ensures against leakage
• Self cleaning
• W.O.G. rated at 200 psi
• Corrosion resistant material
• Cast red brass body
• Neoprene O-ring seal
• Can be used vertically or horizontally

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDMidland Metals#AvailabilityDescriptionUOMYour PriceQTY
142089VLV 944428 944428Loading...Brass Spring Check Valve, 1/4"Loading...
142093VLV 944429 944429Loading...Brass Spring Check Valve, 3/8"Loading...
142094VLV 944430 944430Loading...Brass Spring Check Valve, 1/2"Loading...
142095VLV 944431 944431Loading...Brass Spring Check Valve, 3/4"Loading...
142096VLV 944432 944432Loading...Brass Spring Check Valve, 1"Loading...
142097VLV 944433 944433Loading...Brass Spring Check Valve, 1"-1/4"Loading...
142098VLV 944434 944434Loading...Brass Spring Check Valve, 1-1/2"Loading...
142100VLV 944435 944435Loading...Brass Spring Check Valve, 2"Loading...
Add To Cart
