Fold Down Combination Masthead / All-Round Lights
Description
A three wire system allows these single fixtures to function as a masthead light while under power, or an all-round light while at anchor. When wired correctly, the rear light cannot be activated independently.
Tops are black plastic and chrome-plated zinc alloy. Base is black plastic.
• Designed for windshield mounting
• Height: 12-3/4"; 3/4"anodized aluminum tube
• Plastic adapters for flat or V-type mount with notch for through-base wiring
• Fold-down adjustable angle

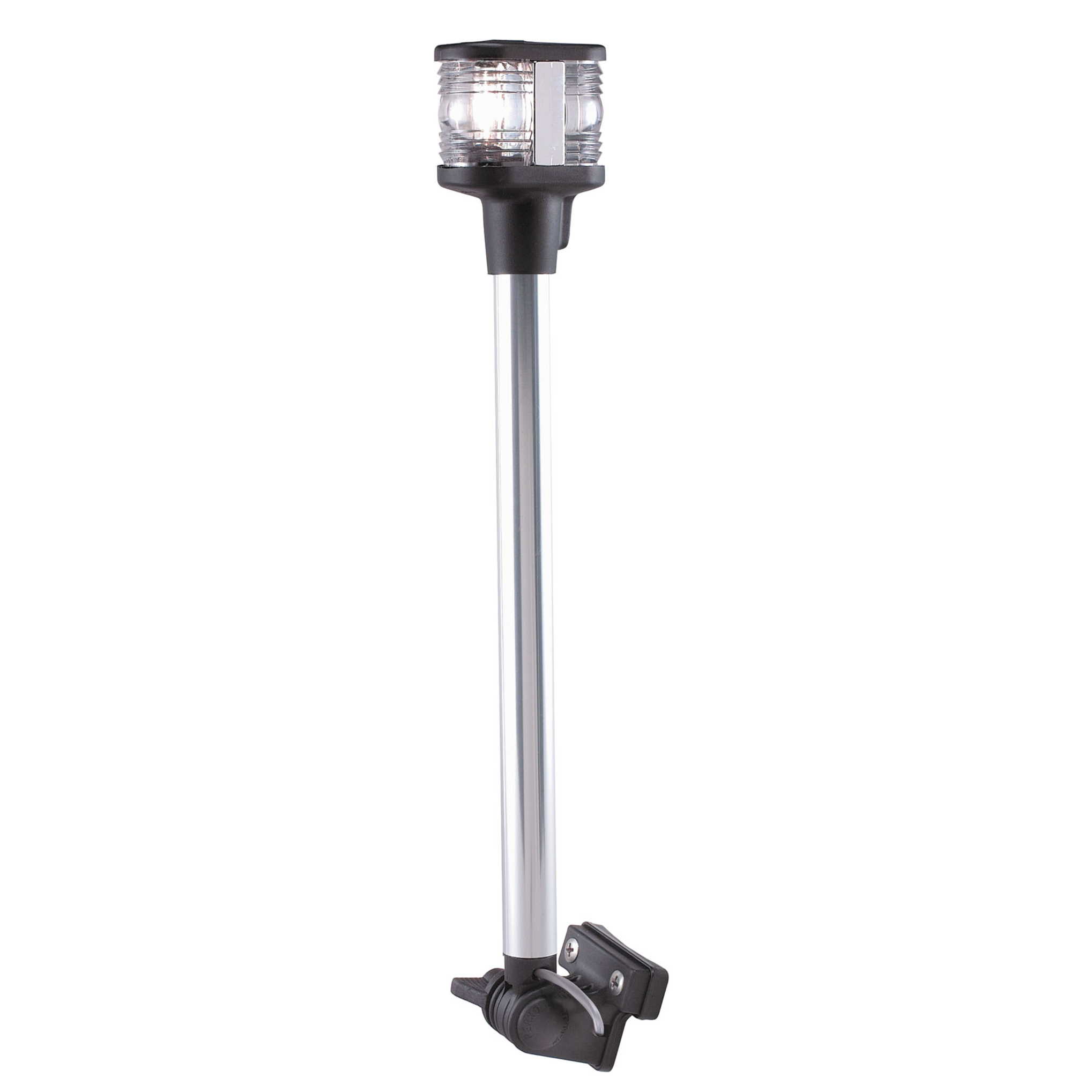

• Horizontal mount (Fig. 1181): light folds perpendicular to the long axis of the base

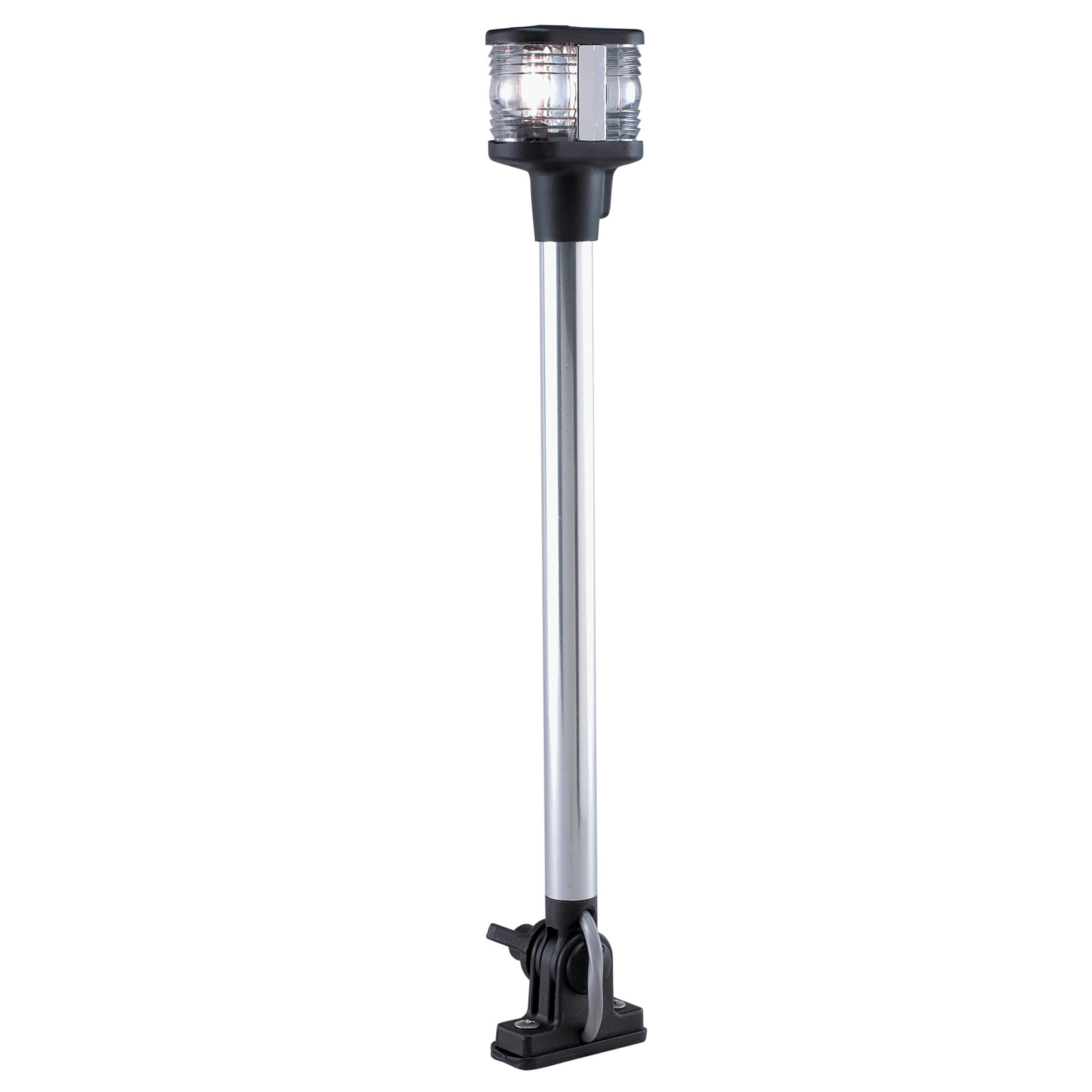

• Vertical mount (Fig. 1184): light folds parallel to the long axis of the base
• 12 volt bulb included; 24 volt option available
• USCG certified
Specifications
MFG #:1181DP0CHR
| MountHorizontal
Type
Masthead/All-Round
Base Size
2" x 1-1/2" (51 x 38 mm)
Mount
Horizontal
Volts
12V
Height
12-13/16" (325.5 mm)
Vis. Miles
3 nm
Housing
Black
Vessel Size
< 65 ft (20 m)
Vis. Arc
225°/360°
Pole Diameter
3/4" (19 mm)
Screw Size
#8
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
085226018817
085226012860
085226012860
Product Options
| Selected | SKU # | MFG # | Availability | Mount | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 25454 | MFG #: 1181DP0CHR | 6 In Stock Ships immediately | Horizontal | $85.62 Each | |||
| SKU #: 47906 | MFG #: 1184DP0CHR | 4 In Stock Ships immediately | Vertical | $85.62 Each |
