Combination Masthead / All-Round Lights
Description
A three wire system allows these single fixtures to function as a masthead light while under power, or an all-round light while at anchor. When wired correctly, the rear light cannot be activated independently. Tops are black plastic and chrome-plated zinc alloy.
• Fixed mount and hardwired

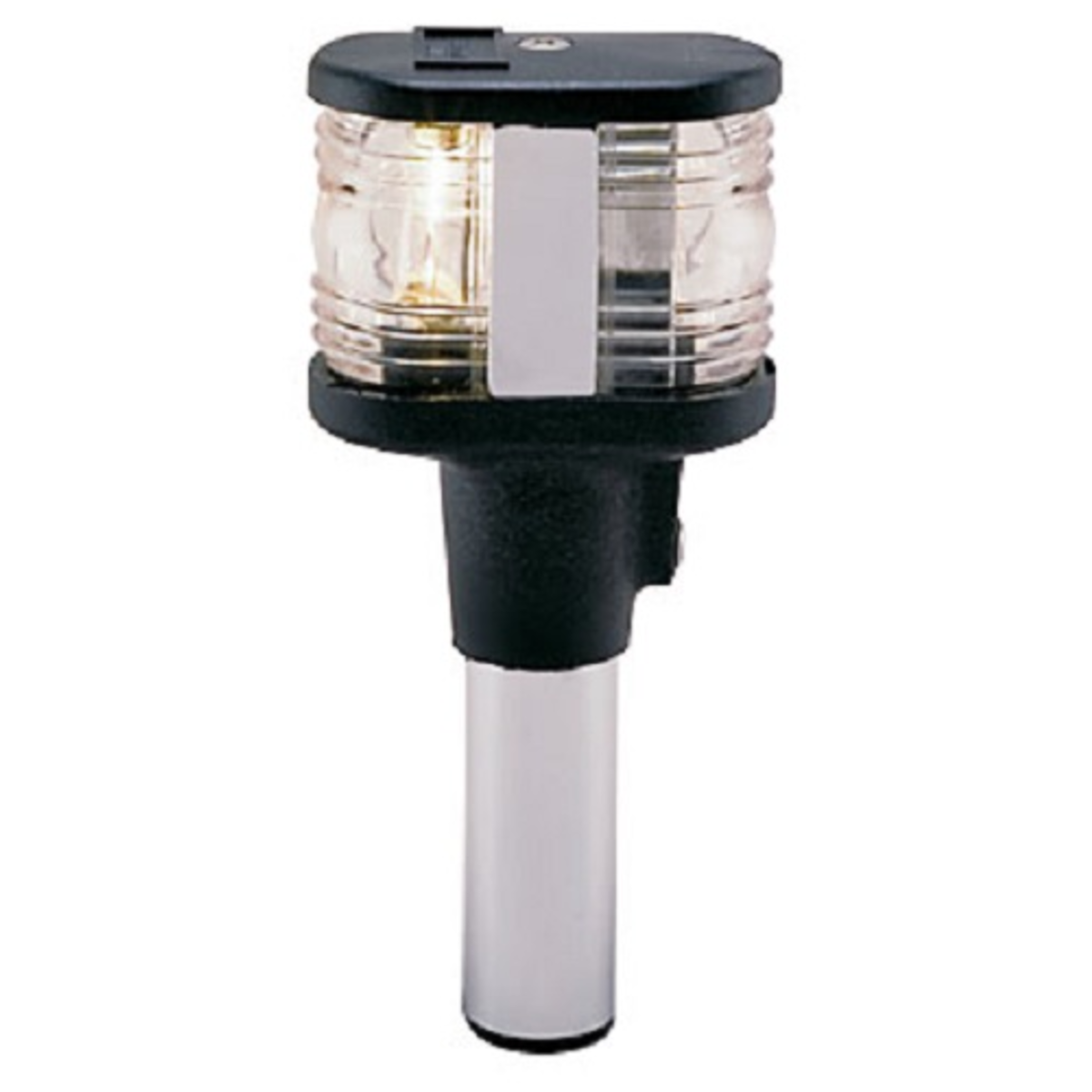

• Fig. 1197 has 2 inches of tubing with wire leads out the bottom, it is hard-wired, and can be mounted in a 3/4" socket; the rest incorporate a pedestal mount for a horizontal surface
• Black polymer and chrome plated zinc alloy top
• 12 volt bulbs are included; 24 volt bulbs are available
• USCG certified
Specifications

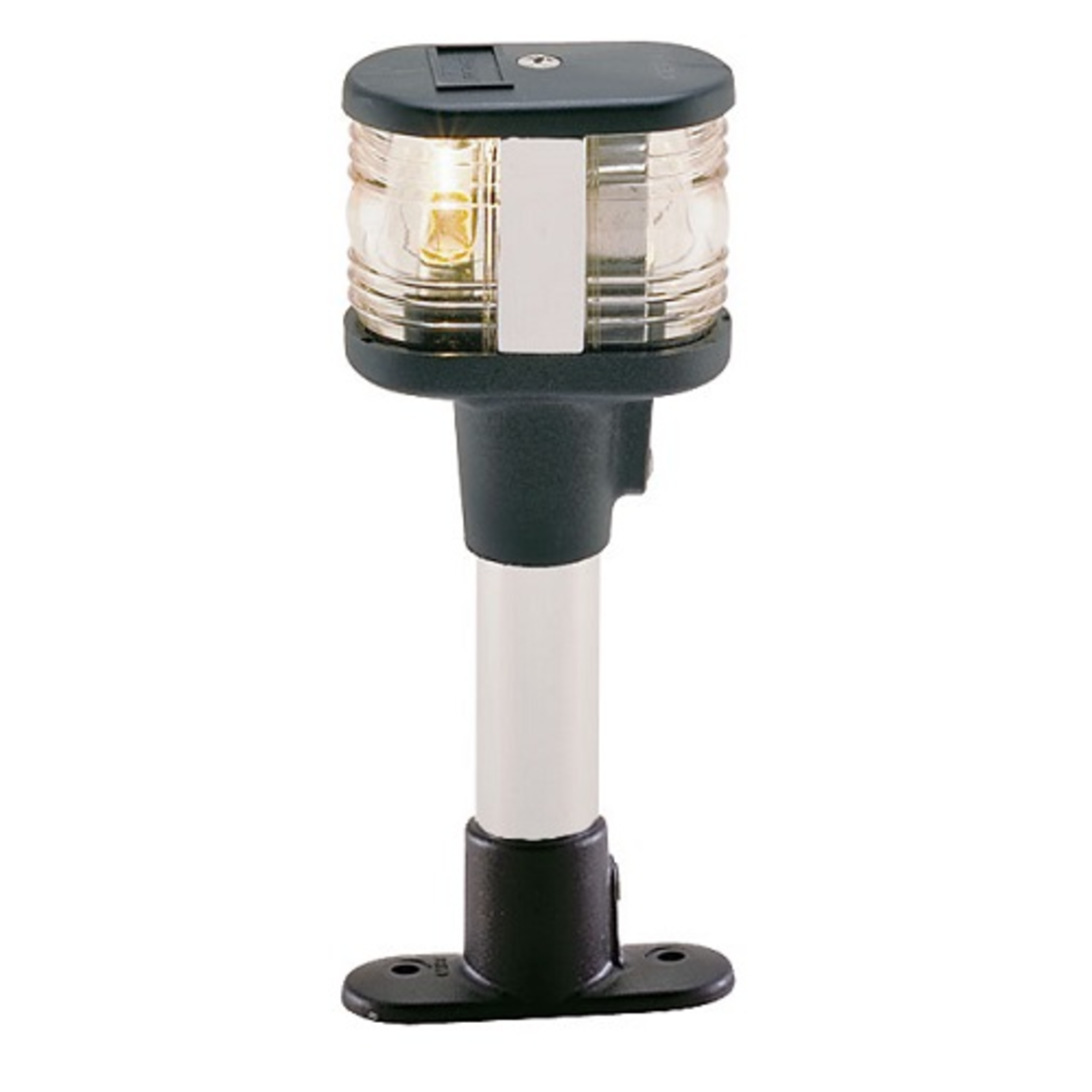

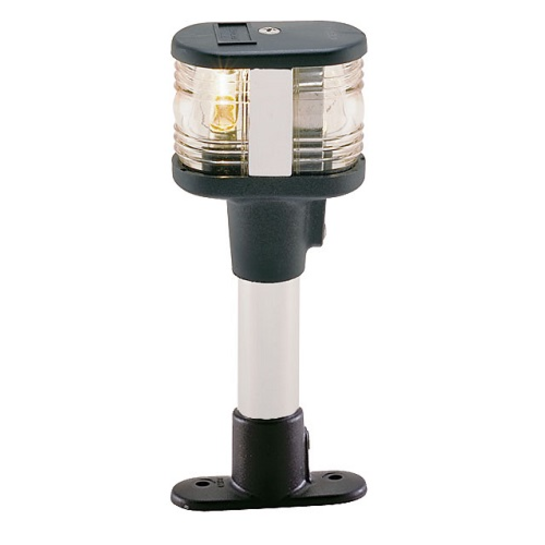

MFG #:1196DP1CHR
| Height5-1/16"
Voltage
12V
Height
5-1/16"
Mount
Horizontal
Type
Masthd/All-Rnd Combo
Housing
Black
Vis. Miles
3 nm
Vis. Arc
360°
Vessel Size
< 65 ft (20 m)
Base
1" x 2-5/8" (25.4 x 66.7 mm)
Pole Diameter
3/4" (19 mm)
Screw Size
#8
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
085226018831
085226012846
085226012846
Product Options
| Selected | SKU # | MFG # | Availability | Height | Price | Quantity | |
|---|---|---|---|---|---|---|---|

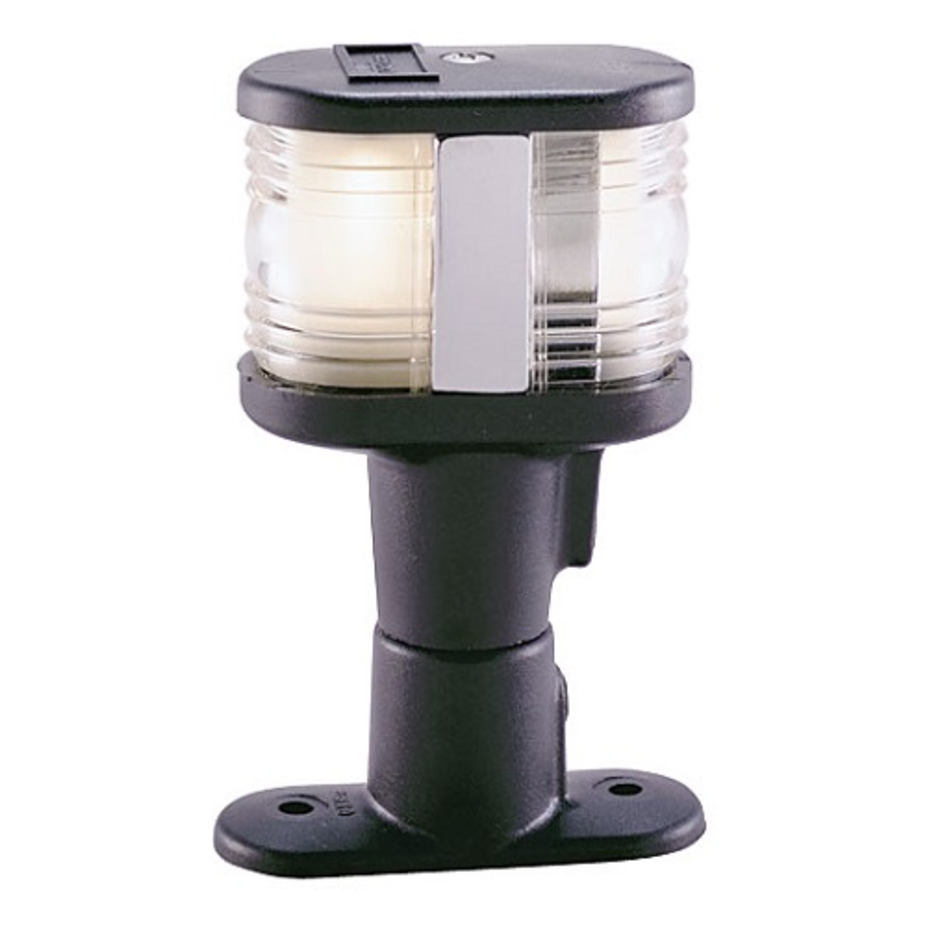

| SKU #: 25456 | MFG #: 1183DP0CHR | Out of Stock | 3-3/16" | $62.48 Each | |||
| SKU #: 25492 | MFG #: 1196DP1CHR | 2 In Stock Ships immediately | 5-1/16" | $63.73 Each | |||
| SKU #: 25493 | MFG #: 1196DP2CHR | 3 In Stock Ships immediately | 11-1/4" | $76.16 Each | |||
| SKU #: 47911 | MFG #: 1197DP0CHR | 3 In Stock Ships immediately | 4" | $51.86 Each |
