ENG MNT 650-1500 LB 3/4 STUD #1500
R & D Engine Mounts
Share THIS PAGE:

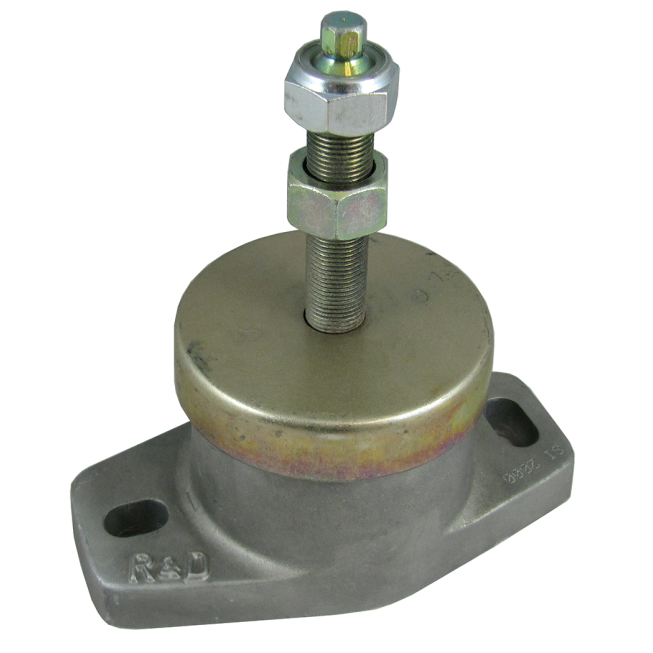

3/4" Stud Heavy Duty Circular Shear Loaded Engine Mount

Heavy Duty

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Designed specifically for marine applications, these Heavy Duty Circular Shear Mountings provide excellent vibration isolation.
The rubber component is covered by an oil shield to protect it from petroleum based products.

These mounts are pre-loaded 0.12", based on the anticipated combined engine and transmission weight, to limit engine movement.
To facilitate in the ease of installation the mounts are height adjusting.
These particular mounts are unusual in having one mounting hole adjustable longitudinally, while the other is adjustable transversly, to assist in alignment of the drivetrain.

• Typical applications include 4 & 6 cylinder engines
• Offers a fail safe design
• Corrosion protected for long service life
• Deflection: 0.12" - 0.25"

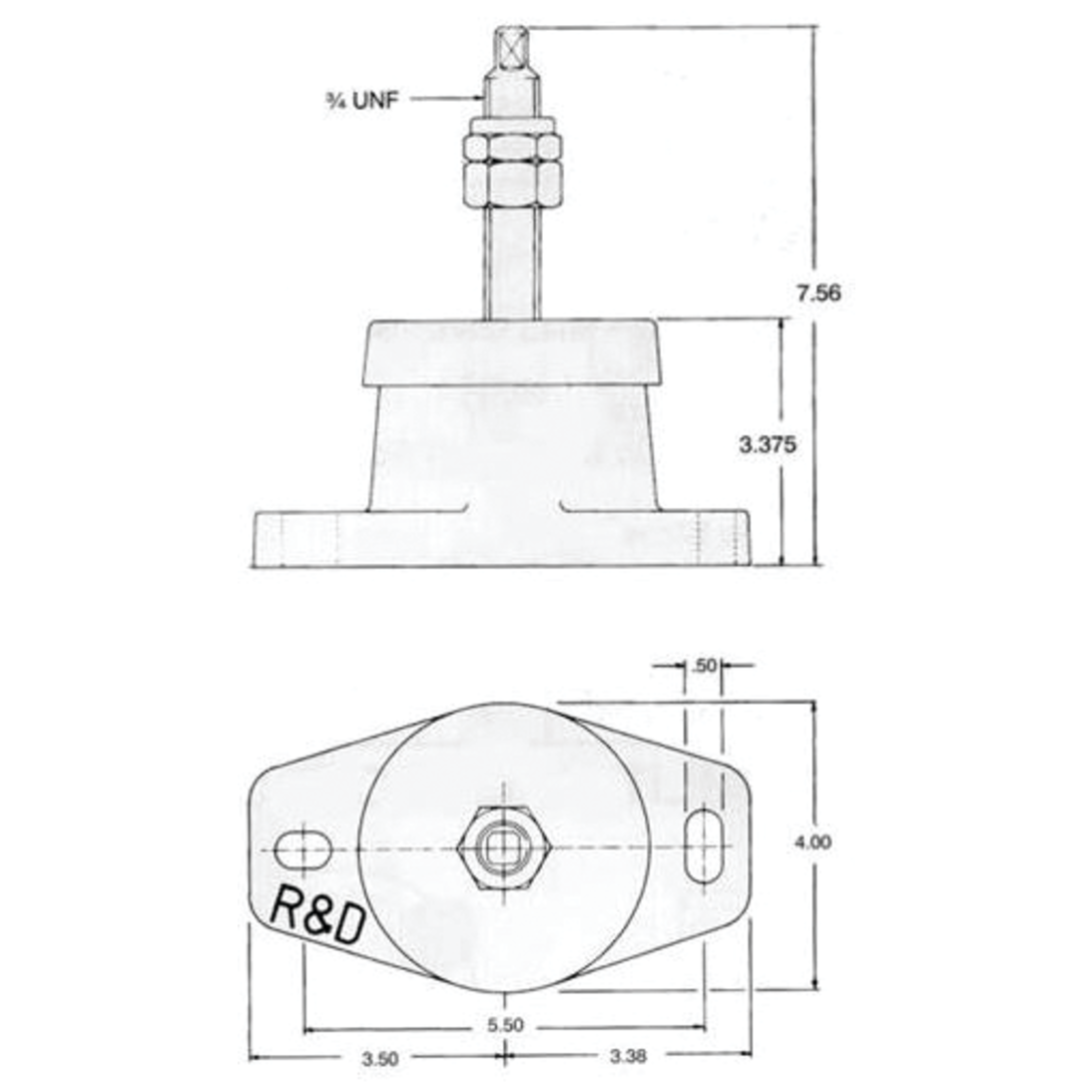

• Base height to top of oil shield at the base of the stud: 3.41"
• Height adjusting nut: 0.63" thick
• Overall mount dimensions: 6.88"L x 4.00"W x 7.22"H

• Note: You need to keep the engine foot low on the stud: the Maximum clearance between the bottom of the lower height adjusting nut and the oil shield on top of the base is 3/8" (10mm); if more height is required, a spacer is recommended under the mounting casting
• When calculating mount requirements, remember to include weight of engine, transmission, and all fluids

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDR and D Drivetrain#AvailabilityDescriptionUOMYour PriceQTY
158255RDD 800-016 800-016Loading...3/4" Stud Circular Shear Loaded Engine Mount, 650 - 1500 lb per MountLoading...
158256RDD 800-017 800-017Loading...3/4" Stud Circular Shear Loaded Engine Mount, 880 - 2000 lb per MountLoading...
Add To Cart
