382 Short Style Dinghy Halyard Shackles - for Rope Halyards

Two Sizes • With Halyard Keeper Bar • Stamped Stainless Steel

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
382 is the shorter series of Race-Lite's small boat halyard shackles. (The 326 series is somewhat longer.)

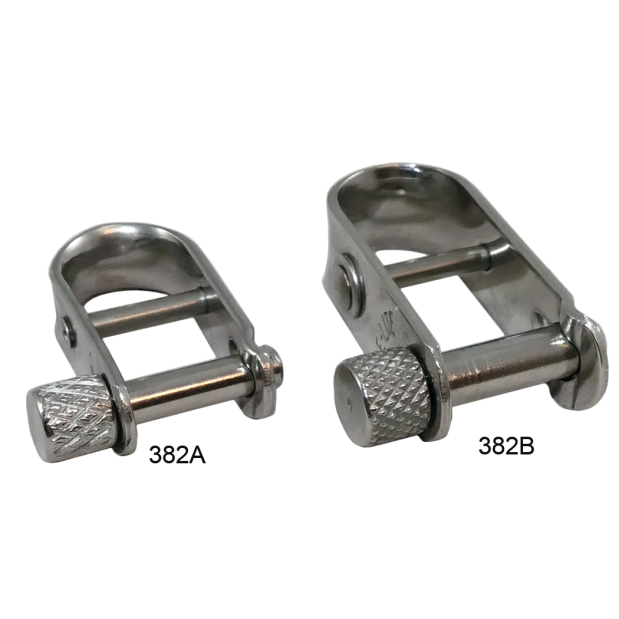

The 382 halyard shackles, in turn, come in two sizes - with 3/16" pins or 1/4" pins. The 1/4" pin versions are slightly larger than the 3/16" pin versions:

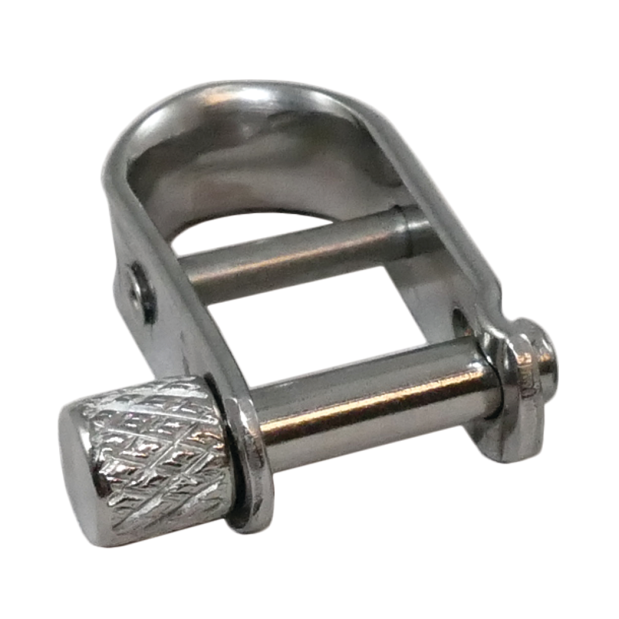

The "A" size has a 3/16" pin and has internal dimensions of 9/16" x 1-5/32".

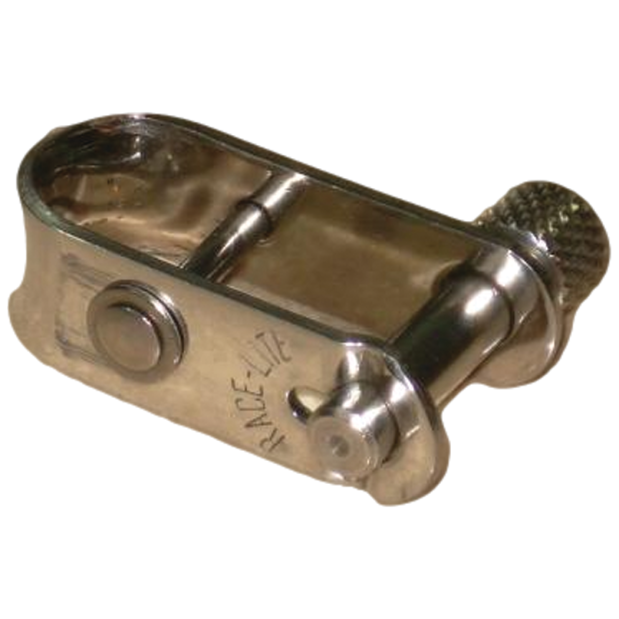

The "B" size has a 1/4" pin and has internal dimensions of 5/8" x 1-7/16".

The 382 shackles also come in two styles:
- With a hole in the top for a wire shackle to pass through (then secured with a crimp-on stopper). This is designated by a "W" in the part number.
- With a keeper bar to hold rope halyards captive. Designated by the lack of a "W" in the part number.
These are the rope halyard versions of the 382 shackles.

• Stamped stainless steel construction
• Models with keeper pin for rope halyards have a saddle-shaped top to eliminate halyard chafe
• Standard turn-style key pin closure
• Available pin keeper spring for a more secure pin closure (designated by an "L" in the part number)

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRace-Lite#AvailabilityDescriptionUOMYour PriceQTY
27110R/L 382A 382ALoading...Short Style Rope Halyard Shackle - 3⁄16" Pin, 5/16" Max. Rope DiameterLoading...
27111R/L 382B 382BLoading...Short Style Rope Halyard Shackle - 1⁄4" Pin, 3/8" Max. Rope DiameterLoading...
