2010 Replacement Cartridge Filter Element

These are genuine Aquabloc® replacement filter elements that meet all OEM fuel injection system specifications.
Be sure to select the correct micron rating when ordering. Replacement elements come with RK11350 T-handle O-ring and lid gasket.

Element color coding * —

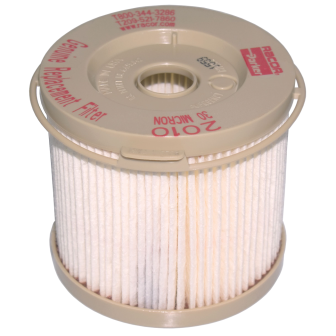

• Red = 30 micron - typically used for primary filtration to lengthen the service life of filters further downstream

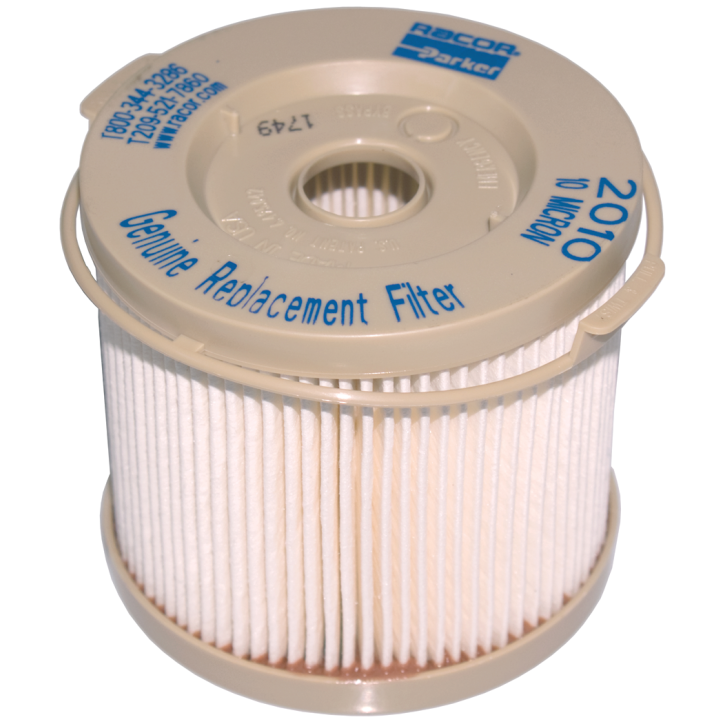

• Blue = 10 micron - typically for secondary filtration

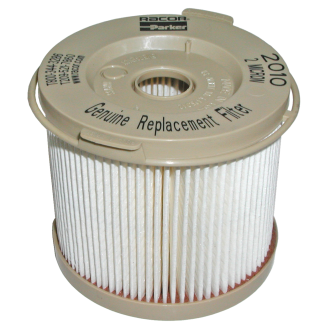

• Brown = 2 micron - for final filtration

* Temporarily, some Racor 2010 Series 30 micron and 10 micron filter elements may come with the brown color code instead of their normal red or blue.
The printed micron number on the element will always be the accurate specification.  3/6/19

Element features –
• Removes asphaltenes, water, gums, and varnishes from fuel
• Also filters out tiny particles of dirt, tank wall debris, algae, and dead bacteria sludge from biocide-treated fuel
• Element top cap is color coded and includes handles for easy servicing
• A pop-out filter bypass button in the top cap allows for bypassing a clogged filter element in a dire emergency
• Polymer end-caps will not corrode, ever
