NAVY STD COMPASS BUILT TO ORDER
Navy Standard Compasses - 7-1/2" Dial
Share THIS PAGE:

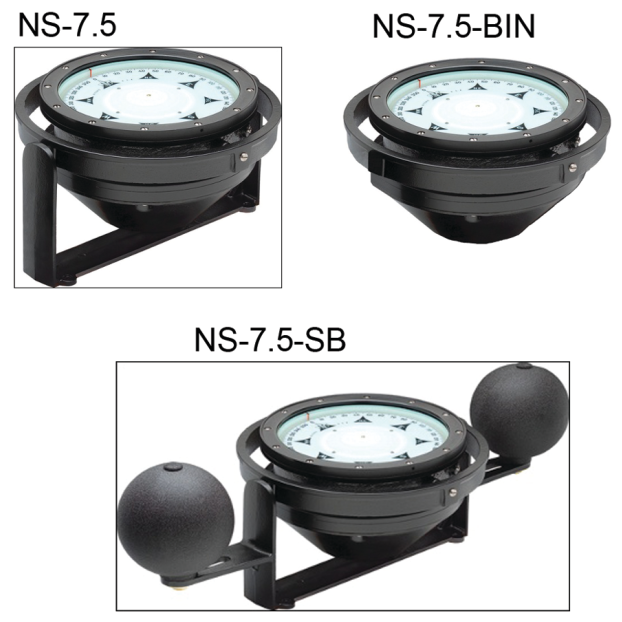

Navy Standard Compasses - 7-1/2" Dial

NS-7.5 • For Large Commercial Vessels

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Only the highest quality materials and workmanship go into these large vessel magnetic compasses.
Rugged castings are used for the bowl, gimbal ring and bezel to assure years of service.
Dial float chamber eliminates nearly all the weight from pivot and jewel bearings to extend operation by years.
Bezel machined to accommodate 7-1/2" Navy standard azimuth circle or bearing circle.
5" quadrantal spheres standard with steel boat model, smaller size spheres are available on request.

• 7-1/2" flat-card dial
• 1° increments with cardinal and inner cardinal markings
• Meets or exceeds Solas ISO Class A compass requirements
• Operating temperature range: -22°F to +175°F (-30°C to +80°°C)
• 12, 24, 32, and 110 volt lighting included, please specify
• Bracket mount models have a 12-1/2" base
• 5 year warranty
• Built to order

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRitchie Navigation#AvailabilityDescriptionUOMYour PriceQTY
209054RIT NS-7.5-SB NS-7.5-SBLoading...Navy Standard Compasses - 7-1/2" Dial, Bracket Mnt., Steel Boat - 7-1⁄2" Dial (9-3/8"H x 25"W x 11-3/4"D)Loading...
209055RIT NS-7.5 NS-7.5Loading...Navy Standard Compasses - 7-1/2" Dial, Bracket Mount - 7-1⁄2" Dial (9-3/8"H x 12-1/2"W x 11-3/4"D)Loading...
209056RIT NS-7.5-BIN NS-7.5-BINLoading...Navy Standard Compasses - 7-1/2" Dial, Binnacle Mount - 7-1⁄2" Dial (5-15/16"H x 12" x 11-3/4"D)Loading...
Add To Cart
