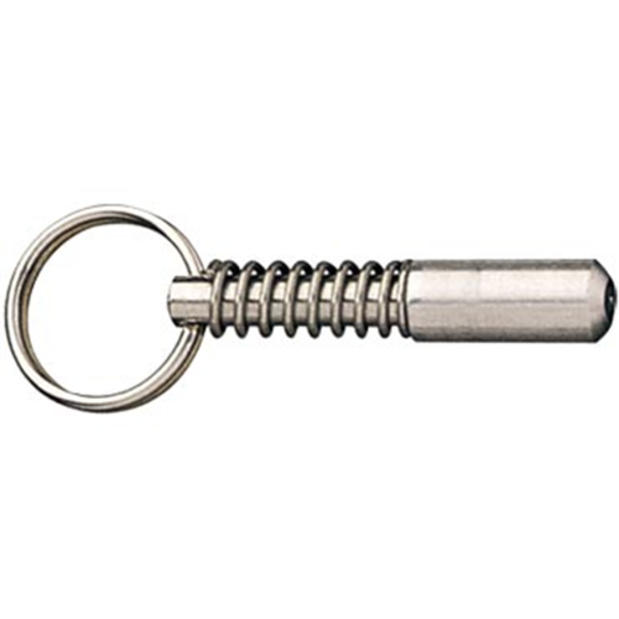

Replacement Plunger Pin Kits for Ronstan Snap Shackles

Investment Cast 15-5PH Stainless Steel Replacement Pins
By: Ronstan

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
• Heavy duty 316 stainless plunger springs and precision components ensure dependable service
• All stainless steel construction for excellent corrosion resistance
• Split ring on plunger pin is spot welded for extra security

Pin RF6160 fits the old Nicro Series 1200 snap shackles, now called Series 100 (RF61xx). This pin fits current RF6110 (small size swivel snap shackle with small bail), RF6120 (small size swivel snap shackle with large bail), RF6130 (small size swivel snap shackle with swivel shackle), RF6170 (small size swivel snap shackle with block head adapter)

Pin RF6161 fits the current RF6100 (small size fixed bail snap shackle), RF6111 (small size trunnion head swivel snap shackle with small bail), RF6171 (small size trunnion head swivel snap shackle with block head adapter)

Pin RF6260 fits the old Nicro Series 1100 snap shackles, now called Series 200 (RF62xx). This pin fits current RF6200 (medium size fixed bail snap shackle

Pin RF6262 also fits the old Nicro Series 1100 snap shackles, now called Series 200 (RF61xx). This pin fits current RF6210 (medium size swivel snap shackle with small bail), RF6220 (medium size swivel snap shackle with large bail), RF6230 (medium size swivel snap shackle with swivel shackle), RF6240 (medium size swivel snap shackle with wide swivel shackle)

Pin RF6360 fits the old Nicro Series 1400 snap shackles, now called Series 300 (RF63xx). This pin fits current RF6300 (large size fixed bail snap shackle [100mm LOA]), RF6310 (large size swivel snap shackle with small bail [110mm LOA]), RF6320 (large size swivel snap shackle with large bail [122mm LOA]), RF6321 (large size trunnion head swivel snap shackle with small bail [122mm LOA])

Pin RF6461 fits Series 400 (RF64xx) trunnion head swivel snap shackles. This pin fits current RF6411 (extra large size trunnion head swivel snap shackle with small bail [137mm LOA])

Pin RF6561 fits Series 500 (RF65xx) trunnion head swivel snap shackles. This pin fits current RF6511 (XX large size trunnion head swivel snap shackle with small bail [150mm LOA])

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDRonstan#AvailabilityDescriptionUOMYour PriceQTY
23455RON RF6160 RF6160Loading...Replacement Pin for Ronstan Snap Shackle - RF6110, RF6120, RF6130, RF6170Loading...
23447RON RF6260 RF6260Loading...Replacement Pin for Ronstan Snap Shackle - RF6200Loading...
23468RON RF6360 RF6360Loading...Replacement Pin for Ronstan Snap Shackle - RF6300, RF6310, RF6320, RF6321Loading...
