BRIDGE TRACK 1-1/2IN X 4FT
1-1/2" Bridge Track - for Unsupported Travelers
Share THIS PAGE:

1-1/2" Bridge Track - for Unsupported Travelers

For Boats to 45 ft with Mid-Boom Sheeting

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

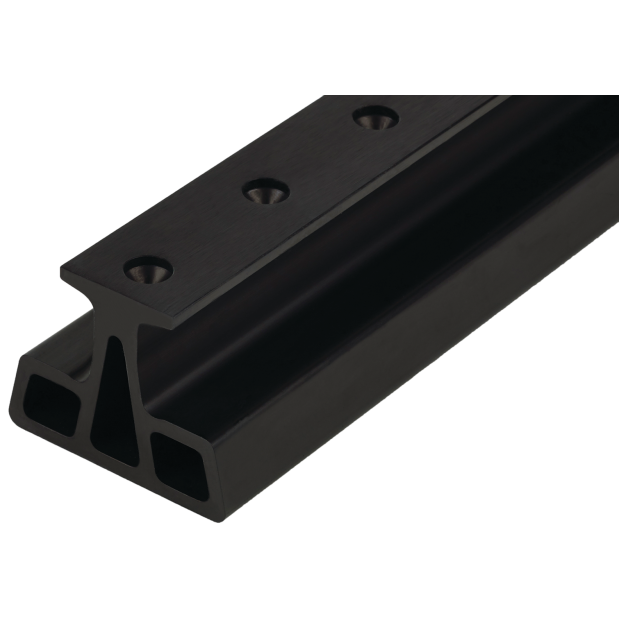

Schaefer extra high strength Bridge Traveler Track uses the same cars as their standard 1-1/2" traveler track, but the track base is reinforced by the utilization of box beam construction - allowing it to bridge greater unsupported open spans.

It is extruded from thick walled aluminum, allowing the track to maintain dimensional stability and structural integrity better than other designs.

• Suitable for boats up to 45 ft with mid-boom sheeting
• Bridge track is normally not necessary on boats with end boom sheeting
• Black hardcoat anodized for maximum corrosion resistance
• Teflon™ impregnated to reduce rolling friction, and extend the life of the anodizing
• Stop pin holes are drilled on 2" centers
• Last three holes on each end are drilled for 1/4" mounting fasteners
• Due to its construction, bridge track cannot be bent, or cut to length
• Dimensions: 1-1/2" Wide (upper surface); 2-29/32" Wide (base) x 2-5/16" High
• Maximum unsupported open span is typically 36" (call for details)

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDSchaefer Marine#AvailabilityDescriptionUOMYour PriceQTY
210491SCH 42-94 42-94Loading...1-1/2" Bridge Track - for Unsupported Travelers, 4 ftLoading...
211031SCH 42-95 42-95Loading...1-1/2" Bridge Track - for Unsupported Travelers, 5 ftLoading...
201559SCH 42-96 42-96Loading...1-1/2" Bridge Track - for Unsupported Travelers, 6 ftLoading...
