ZNC 3/8X1-3/4IN PENCIL 1/4IN PLUG
Complete Engine Pencil Anodes - Zinc
Share THIS PAGE:

Complete Engine Pencil Anodes - Zinc

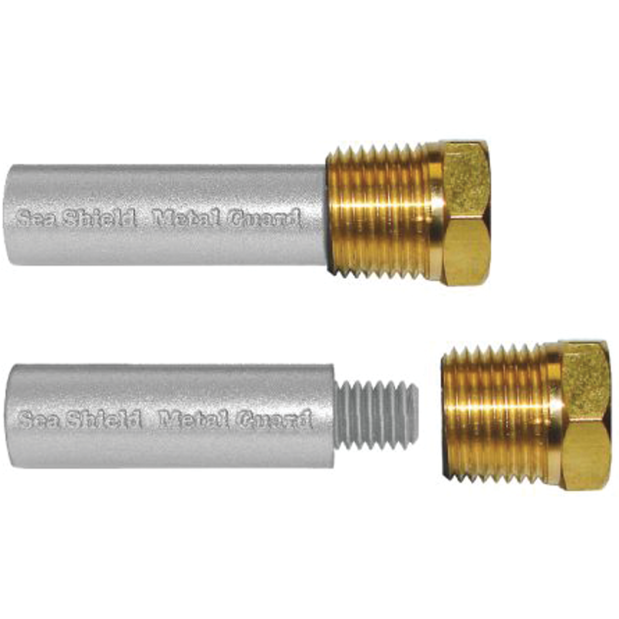

Anode and Brass Plug

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Engine anodes thread into the end of a modified brass pipe plug which, in turn, threads into a port in the engine block or heat exchanger, thus placing the anode within the cooling water channels in the block where it helps protect internal engine components from corrosion.

• Pipe plugs made from high quality brass
• Built to military specification MIL-A-18001
• Made in California, USA

Note: In spite of Fisheries' promotion of aluminum sacrificial anodes as a generally superior choice of material, pencil anodes is an application where zinc is the anode material of choice. This is because aluminum pencil anodes are known to break at the neck and end up blocking coolant channels. As a result, most engine manufacturers - Cummins, Yanmar, Caterpillar, etc. - still use zinc for pencil anodes, and you should too. In fact, Fisheries does not stock aluminum pencil andes for the above reason.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDSea Shield Marine#AvailabilityDescriptionUOMYour PriceQTY
76766SEA E-0-COMPLETE E-0-COMPLETELoading...E-0 Complete Engine Pencil Anode, Zinc - 3/8" Dia. x 1-3/4"L with 5/16 - 18 NPT Threaded PlugLoading...

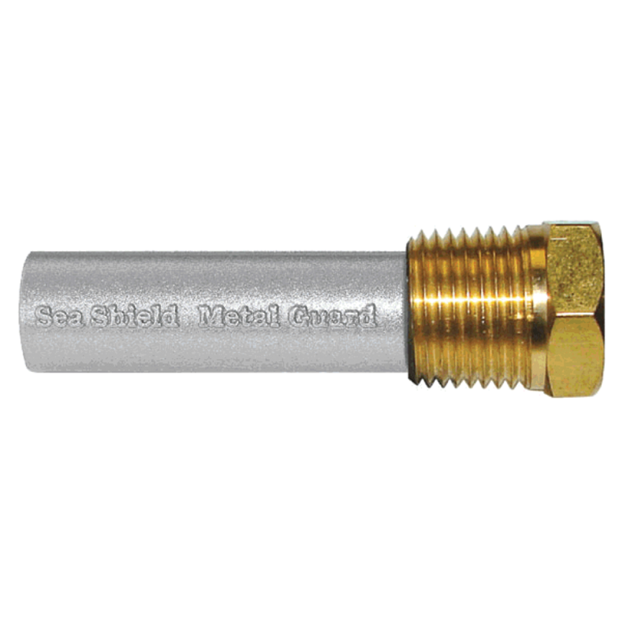

76767SEA E-1-COMPLETE E-1-COMPLETELoading...E-1 Complete Engine Pencil Anode, Zinc - 1/2" Dia. x 2"L with 3/8 - 16 NPT Threaded PlugLoading...
76768SEA E-2-COMPLETE E-2-COMPLETELoading...E-2 Complete Engine Pencil Anode, Zinc - 5/8" Dia. x 2"L with 7/16 - 14 NPT Threaded PlugLoading...
76769SEA E-3-COMPLETE E-3-COMPLETELoading...E-3 Complete Engine Pencil Anode, Zinc - 3/4" Dia. x 2"L with 1/2 - 13 NPT Threaded PlugLoading...
370960SEA E-3XL-COMPLETE E-3XL-COMPLETELoading...E-3XL Complete Engine Pencil Anode, Zinc - 7/8" Dia. x 6"L with 13/16-10 NPT Threaded PlugLoading...
76770SEA E-4-COMPLETE E-4-COMPLETELoading...E-4 Complete Engine Pencil Anode, Zinc - 3/4" Dia. x 3-3/8"L with 1/2 - 13 NPT Threaded PlugLoading...
Add To Cart
