Modular Top Plate for Radar Mount - "Universal"

ADA-R1 - Fits Most Radomes and Open Array Radars • Use with "M1" Modular Mounts
By: Seaview

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
loading image
Checking for Price and Availability
Overview

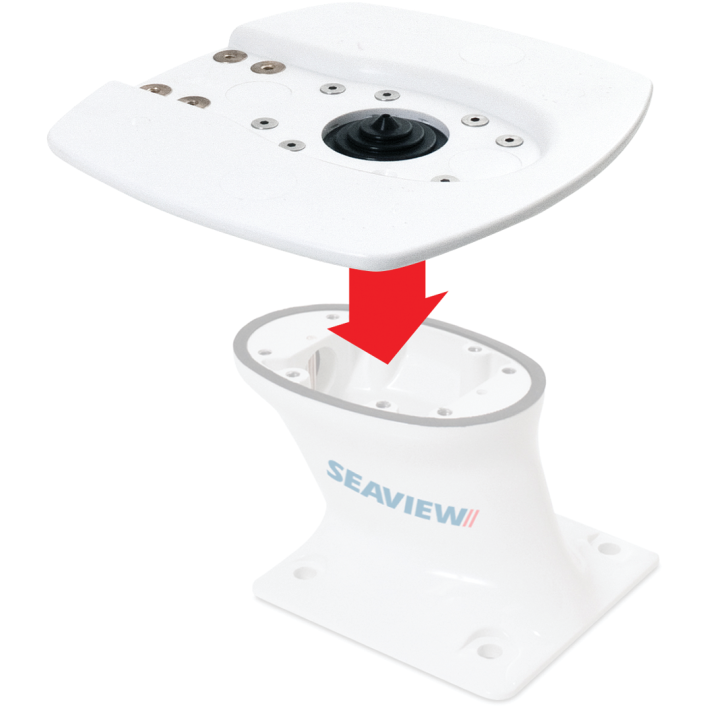

This top plate is pre-drilled for attachment to Seaview modular instrument mounts, and is for use with the radars listed below.

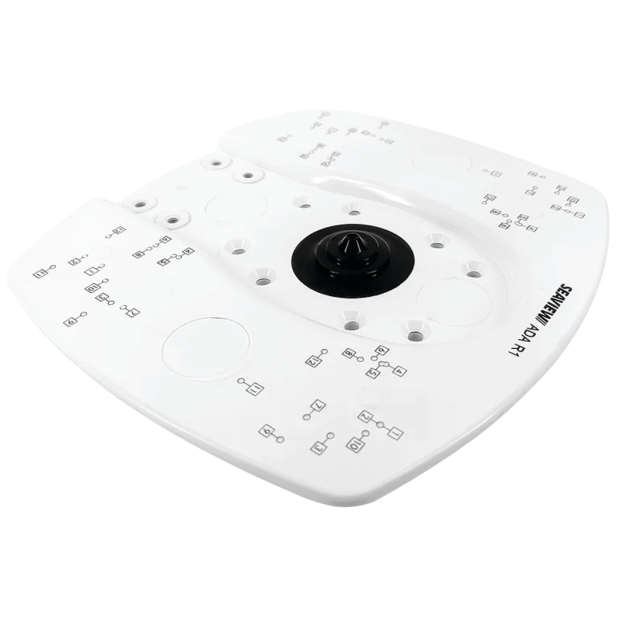

There are dimple holes on the upper surface of the top plate that match up with an included drill template, allowing you to precisely drill the appropriate holes for your specific radar.
The end result is a nice clean look with no unwanted visible holes.

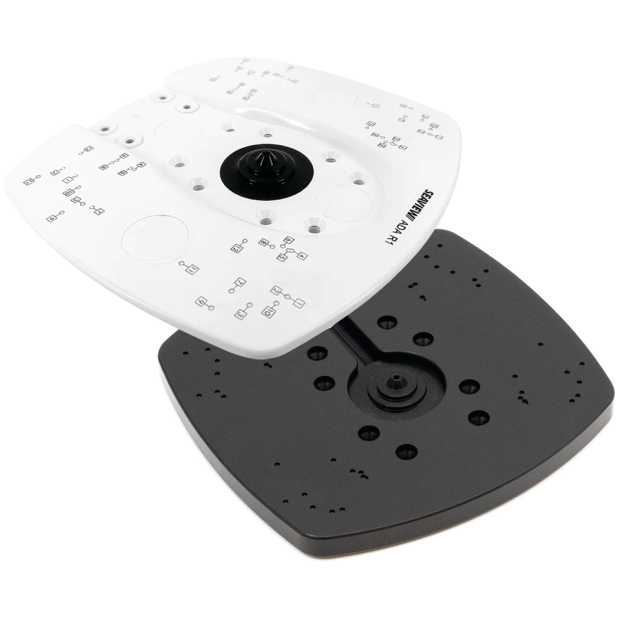

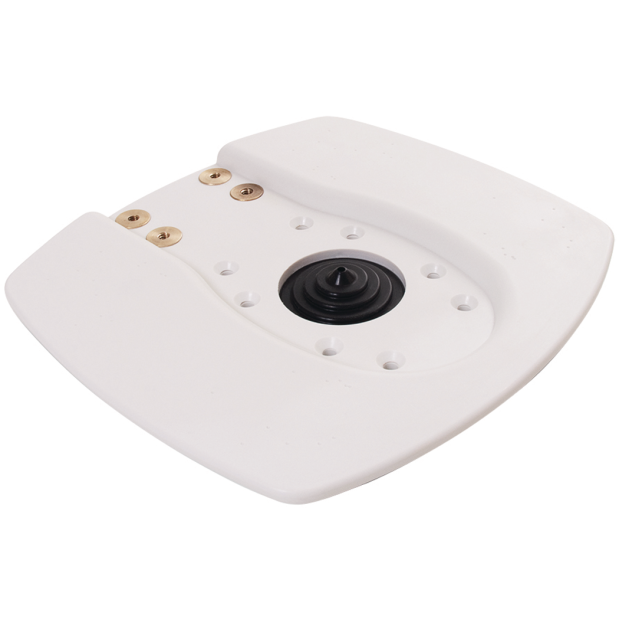

The ADA-R1 top plate is constructed of an anodized aluminum plate encased in thick, UV-stable, white ABS plastic.
The aft end has pre-drilled holes for an optional light bar for mounting accessories such as a light or GPS antenna.

Note that you should select a top plate only after you have chosen an appropriate modular mount for your installation.
Your choice of mount will, in part, determine which top plates you can use.
This top plate, should only be used with M1 style mounts (7" x 7" base)

If you choose to install a modular light bar to mount an accessory, choose the model LTB-R for all radome installations, and the models LTB-OA or LTB-OA-6, as appropriate, for open arrays.

Use the ADA-R1 top plate with these radars and any M1 style modular mount:
• Furuno 15" - 24" radar domes
• Furuno 4 ft - 6 ft open array radars
• Garmin 18" - 24" radar domes
• Garmin 4 ft - 6 ft open array radars
• Geonav 24" radar domes
• Geonav 4 ft - 6 ft open array radars
• Humminbird 12" - 24" radar domes
• JRC 15" radar domes
• Koden 18" - 24 " radar domes
• Koden 4 ft - 6 ft open array radars
• Lowrance 18" - 24" radar domes, BR24, 3G, 4G
• Lowrance 4 ft - 6 ft open array radars
• Lorenz 12" - 24" radar domes
• Lorenz 4 ft - 6 ft open array radars
• Nobeltec 17" - 24" radar domes
• Nobeltec 3.5 ft - 6 ft open array radars
• Northstar 18" - 24" radar domes, BR24, 3G, 4G
• Northstar 4 ft - 6 ft open array radars
• Raymarine 18" - 24" radar domes
• Raymarine 4 ft - 6 ft open array radars
• Simrad 18" - 24" radar domes
• Simrad 4 ft - 6 ft open array radars
• Sitex 12" - 24" radar domes
• Sitex 4 ft - 6 ft open array radars
• Seiwa - Techmarine 12" - 24" radar domes
• Seiwa - Techmarine 4 ft - 6 ft open array radars
