Installation Kits for EasyFit Premium Plus Toilets

Choose Among Fresh or Salt Flush - With or Without a Saltwater Pump • 12 or 24 Volts

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
These are the required installation kits for Thetford EasyFit Premium Plus toilets.

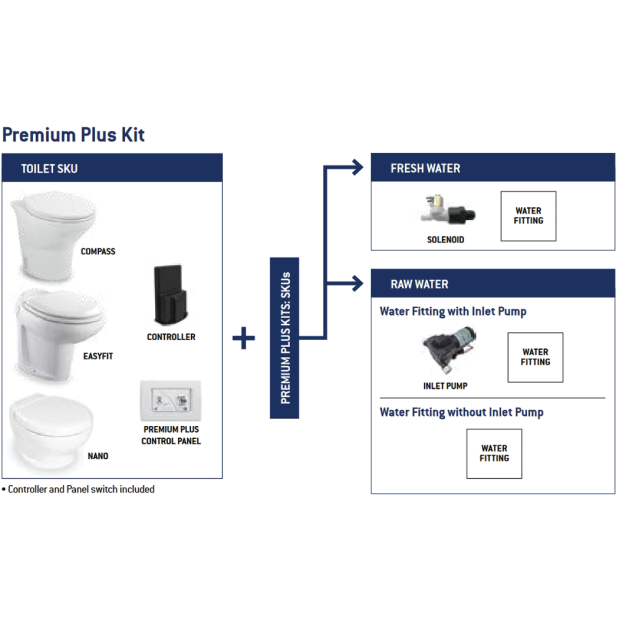

Your selection will depend upon your vessel's voltage, whether you choose to flush with fresh or raw (salt) water and - should you select raw water flush - whether you already have a pressurized raw water system onboard.
NOTE that, unlike the Eco toilets, the Premium Plus toilets already include the control panel switch and wiring harness.

Pressure (Fresh) Water Flushing -
By design, the Premium Plus toilet plumbs into the vessel's pressured drinking water system, utilizing fresh water for flushing. Fresh water flushing is generally preferred for its odor reducing properties.

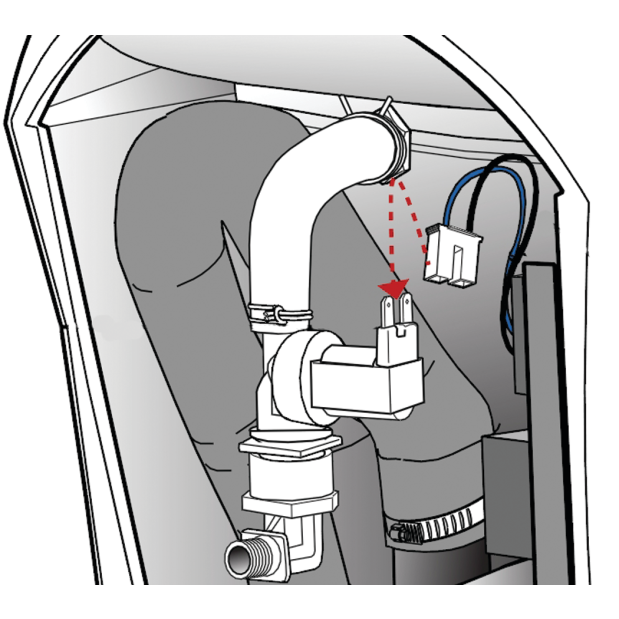

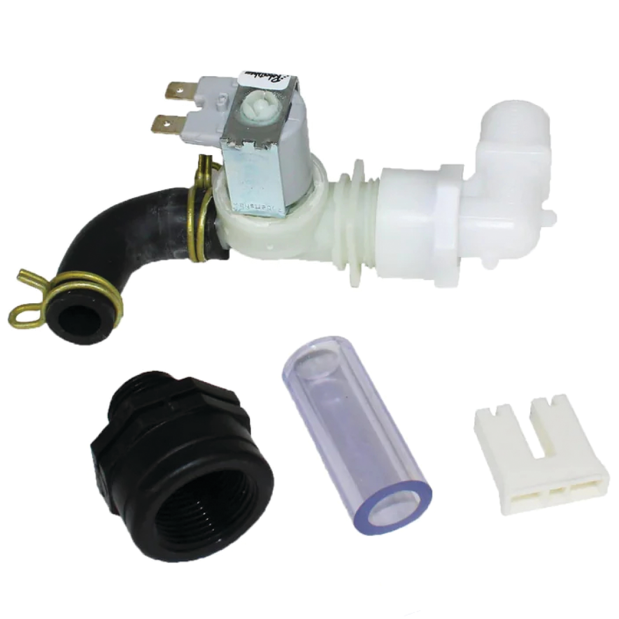

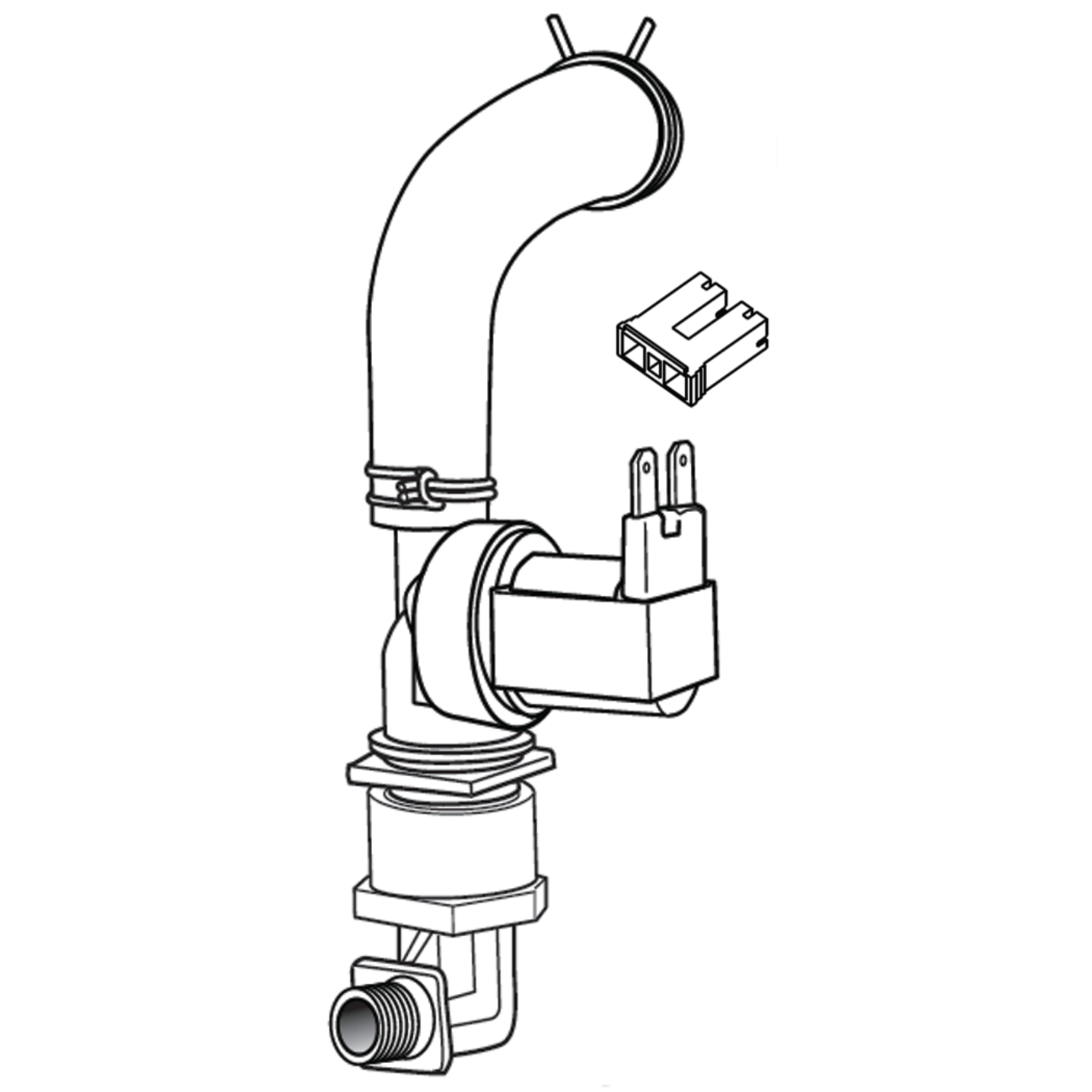

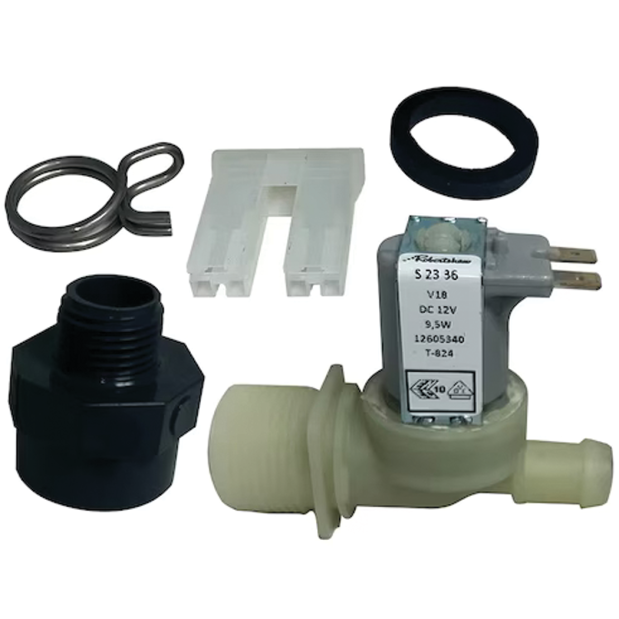

For this application you should purchase the Pressure Water Flush Installation Kit. Pressure Water Kits include a solenoid valve for tapping into your water pressure system, with a fitting for attaching the solenoid to the toilet. Select the appropriate voltage.

Raw Water Flushing -
In applications where conserving fresh water is important, you can flush with raw (salt) water.
In this case, you should purchase one of the Raw Water Flush Installation Kits.

Most purchasers will require the kit which includes a 12 or 24 volt pump to pressurize the raw water, as these toilets don't have any suction capability for the flush water supply.
Raw Water Flush Pump Kits include a pump to pressurize the raw/salt flush water, and a hose fitting to connect flush water to the toilet. Select the appropriate voltage.

If you already happen to have pressurized raw water onboard, select the Raw Water Flush Kit without a pump. This kit includes only a hose fitting to connect flush water to the toilet. Just a plumbing fitting, there is no voltage associated with this kit. At this time, this kit (#38861) is only available by special order.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDThetford#AvailabilityDescriptionUOMYour PriceQTY
389120THE 38859 38859Loading...Pressure Water Flush Kit - 12V Solenoid for EasyFit Premium Plus ToiletLoading...
390990THE 38860 38860Loading...Pressure Water Flush Kit - 24V Solenoid for EasyFit Premium Plus ToiletLoading...
390988THE 38862 38862Loading...Raw Water Flush Pump Kit - 12V Pump, Hose Fitting for EasyFit Premium Plus ToiletLoading...
390991THE 38863 38863Loading...Raw Water Flush Pump Kit - 24V Pump, Hose Fitting for EasyFit Premium Plus ToiletLoading...
