Single Station Oil Pressure Senders - for VDO Gauges
360-009
Share THIS PAGE:

Single Station Oil Pressure Senders - for VDO Gauges

30 psi, 80 psi, 100 psi, 150 psi, 400 psi

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
All these pressure senders are designed to work with VDO gauges ONLY.

• These senders are for single station installations (1 sender : 1 gauge)
• Senders are matched to gauges according to the maximum reading on dial face.
• Note - NPTF = NPT Fine
• The "B" in the part number has to do with packaging quantities and can be ignored.
• "ID Stamp" (Component Reference #) is a short-hand sender identification code stamped onto the hex nut on the sender
• Standard Ground - Sender case to common ground; and Dual Station Ground, if applicable
• Floating Ground - isolated terminal on gauge to common ground; and Dual Station Floating Ground, if applicable
• As noted in the Spec Table, some gauges have a separate contact for a warning indicator activation at a specified pressure

Please note: VDO senders have tapered threads (except as noted) and DO NOT require the use of Teflon tape or pipe sealant. This will interfere with grounding causing incorrect instrument readings.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDVDO Gauges#AvailabilityDescriptionUOMYour PriceQTY

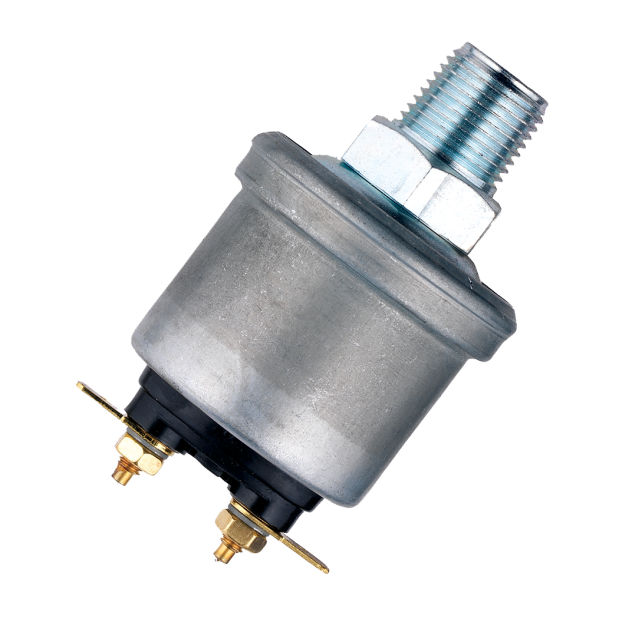

431472VDO 360-043B 360-043BLoading...30 psi (2 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 32/25 ID Stamp, 10 - 180 Ohm, Floating GroundLoading...

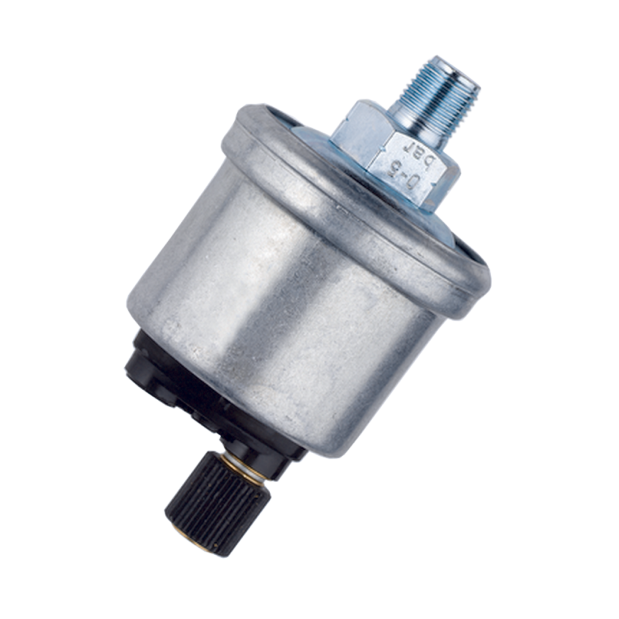

431465VDO 360-003B 360-003BLoading...80 psi (5 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 29/4 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...

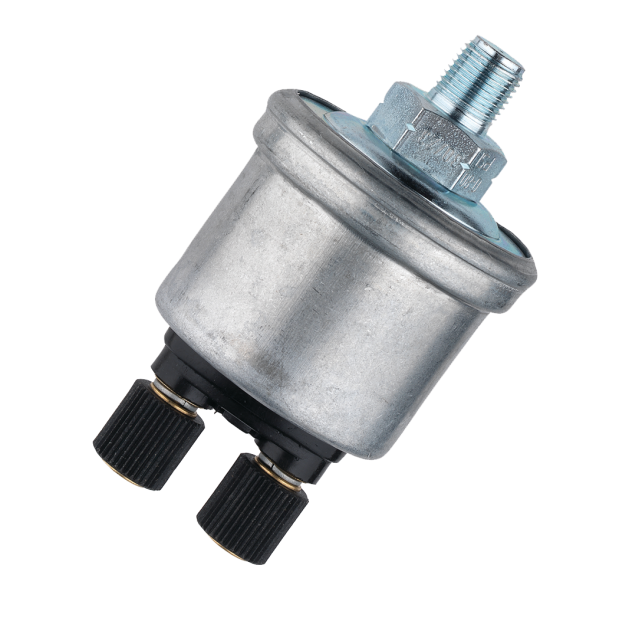

431468VDO 360-009B 360-009BLoading...80 psi (5 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 30/23 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...
431476VDO 360-410B 360-410BLoading...80 psi (5 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 32/1 ID Stamp, 10 - 180 Ohm, Floating GroundLoading...

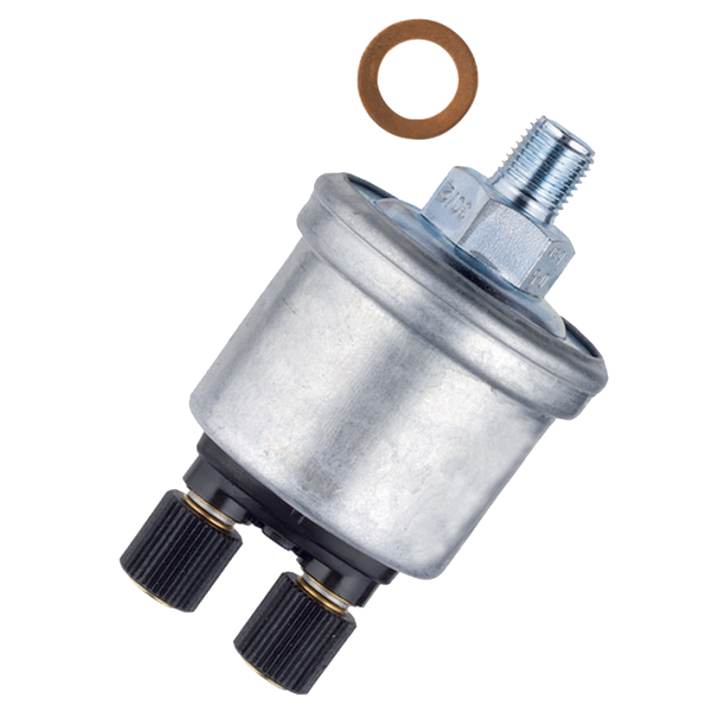

431467VDO 360-006B 360-006BLoading...80 psi (5 bar) VDO Oil Press. Sender - M10 x 1.0 Thread, 30/2 ID Stamp, 10 - 180 Ohm, Standard Ground, (with 7 psi Warning)Loading...
431474VDO 360-086B 360-086BLoading...100 psi (7 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 655 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...
431478VDO 360-811B 360-811BLoading...100 psi (7 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 734 ID Stamp, 240 - 33 Ohm, Standard GroundLoading...
431466VDO 360-004B 360-004BLoading...150 psi (10 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 29/12 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...
431477VDO 360-430B 360-430BLoading...150 psi (10 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 32/14 ID Stamp, 10 - 180 Ohm, 2 Terminal Floating GroundLoading...
431471VDO 360-025B 360-025BLoading...150 psi (10 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 30/15 ID Stamp, 10 - 180 Ohm, Standard Ground (with 11.4 psi Warning)Loading...
431469VDO 360-015B 360-015BLoading...150 psi (10 bar) VDO Oil Press. Sender - M10 x 1.0 Thread, 29/10 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...
431470VDO 360-023B 360-023BLoading...150 psi (10 bar) VDO Oil Press. Sender - M10 x 1.0 Thread, 30/9 ID Stamp, 10 - 180 Ohm, Standard Ground, (with 7 psi Warning)Loading...

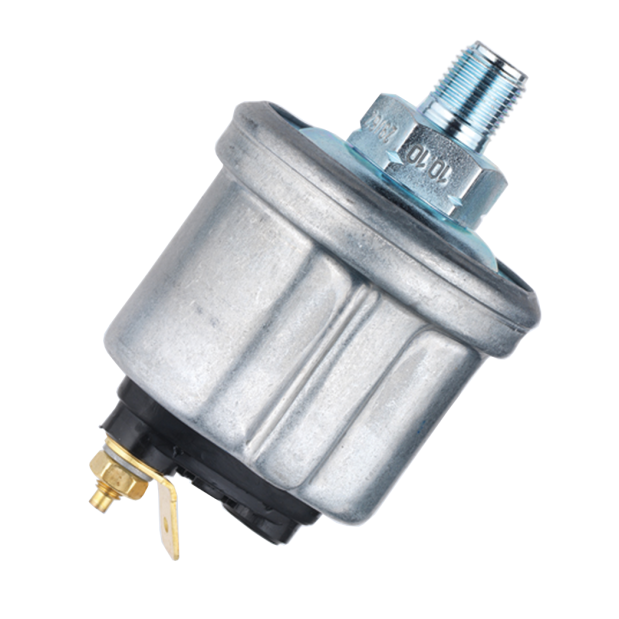

431473VDO 360-081 360-081Loading...150 psi (10 bar) VDO Oil Press. Sender - 1/8-28 BSP Thread, 29/62 ID Stamp, 10 - 180 Ohm, Standard GroundLoading...
431475VDO 360-406B 360-406BLoading...400 psi (28 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 38/8 ID Stamp, 10 - 180 Ohm, Floating GroundLoading...
