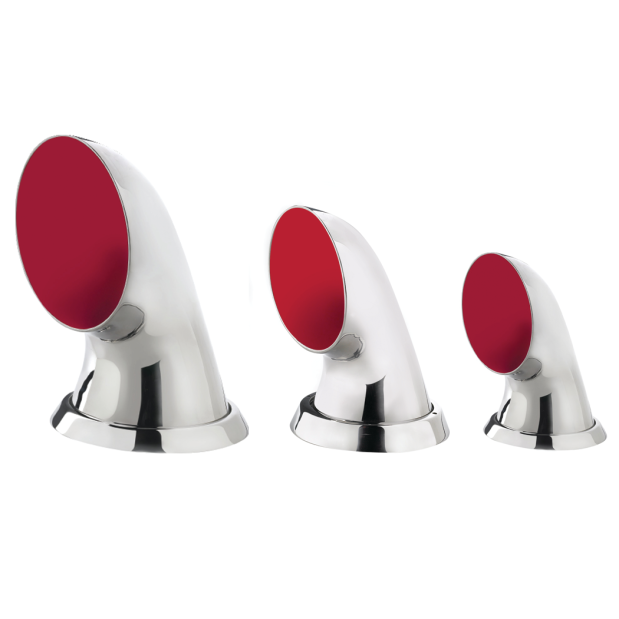

Levanter Stainless Steel Cowl Vents

Heavy Cast Stainless Steel • 3", 4" and 5" Models • Includes Collar and Deck Rings • Sophisticated Styling

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

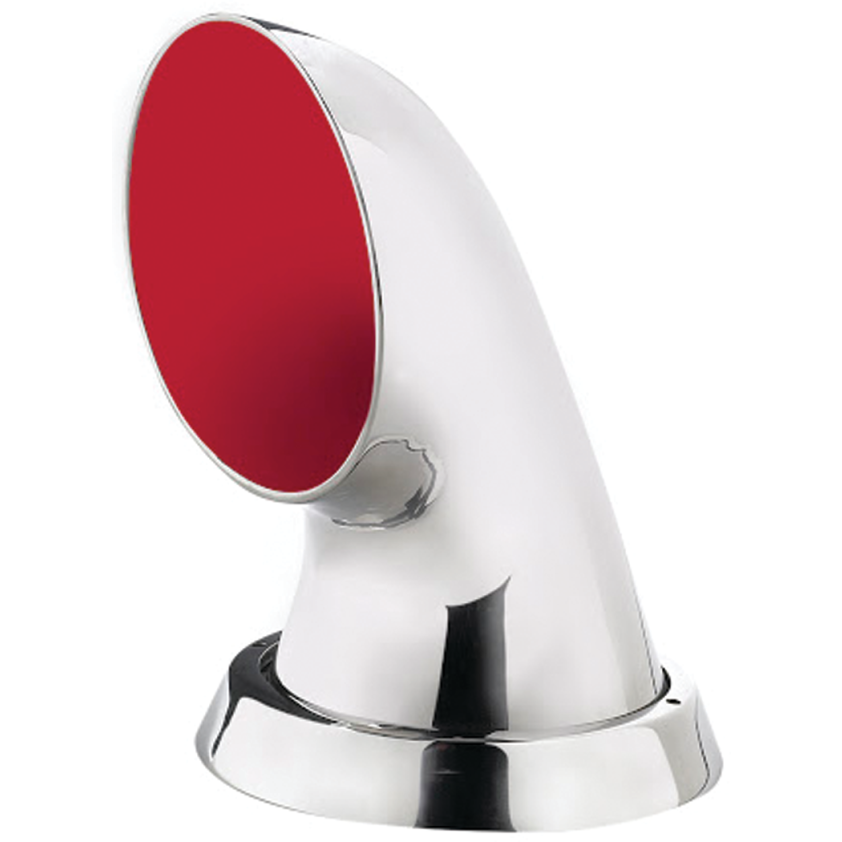

These cowl ventilators are made of cast stainless steel with the inside coated red. The matching fastening ring can be tightened by hand, or with a special tool, supplied standard, with the cowl vent. If tightened with the tool, there is little chance your cowl vent will ever be stolen.

• Fastening ring and blind cover plate are supplied standard with each ventilator
• Dorade boxes sold separately (BOX75 - 3", BOX100 - 4" or BOX125 - 5"); see Accessory Products, below


How these vents are mounted...

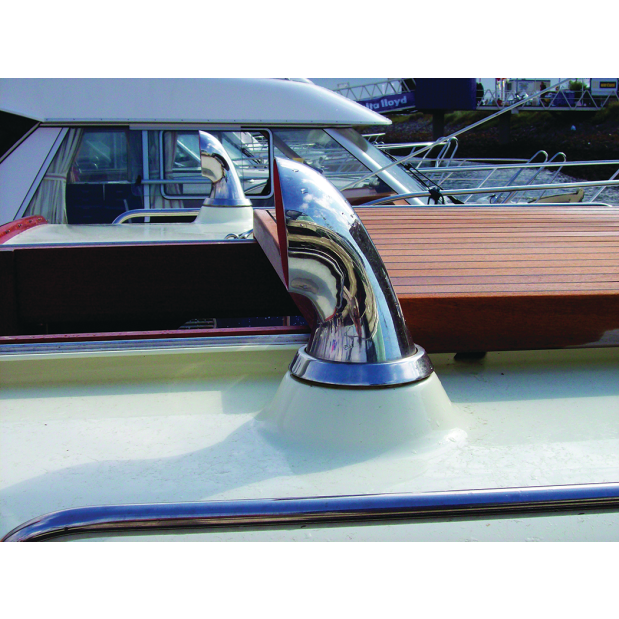

These cowl vents are consist of a "deck" ring, and a cowl with a loose collar ring (aka "nut"). The "deck" ring is permanently mounted to the top of a dorade box, and the cowl is then placed on the deck ring and secured by tightening the collar ring.

The deck mounting ring is secured with (4) flat head fasteners, and has coarse external threads.
The female-threaded collar ring is loose on the cowl, but captured by a flat flange ring which is screwed to the bottom of the cowl with 3 screws (see image). The cowl is placed on the deck ring, and the collar ring is then turned down by hand or with the supplied deck key until tight. The collar ring can be loosened at any time to allow the cowl to be rotated as necessary.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDVetus Denouden#AvailabilityDescriptionUOMYour PriceQTY
186448DEN LEVA75 LEVA75Loading...Levanter Cowl Vent - Stainless/Red Interior, 7-3/16" HeightLoading...
186449DEN LEVA100 LEVA100Loading...Levanter Cowl Vent - Stainless/Red Interior, 8-3/4" HeightLoading...
186450DEN LEVA125 LEVA125Loading...Levanter Cowl Vent - Stainless/Red Interior, 10-5/8" HeightLoading...
