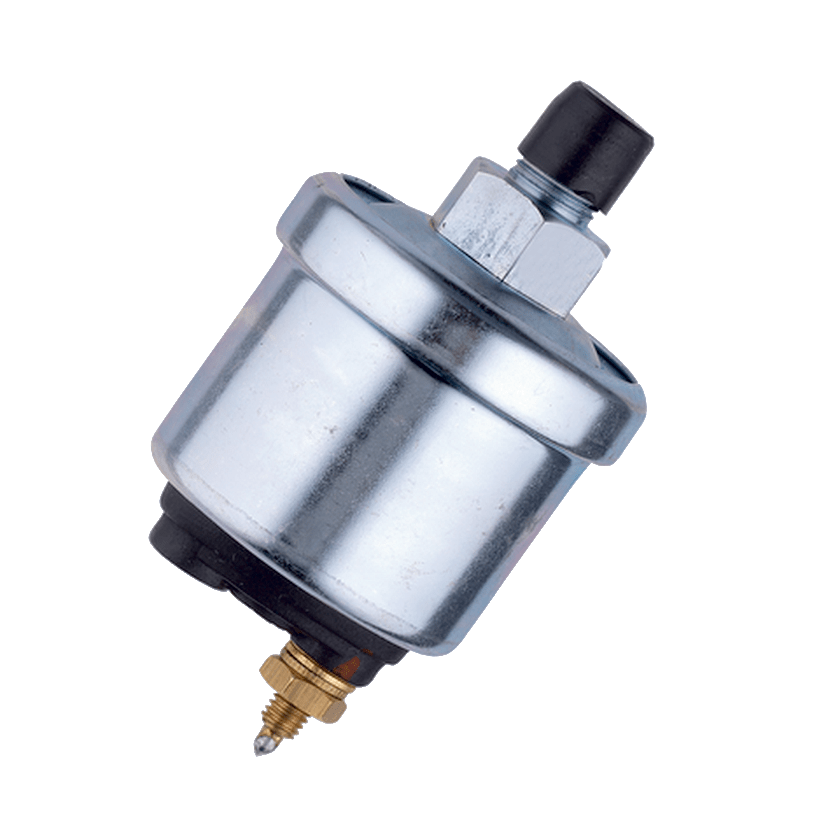

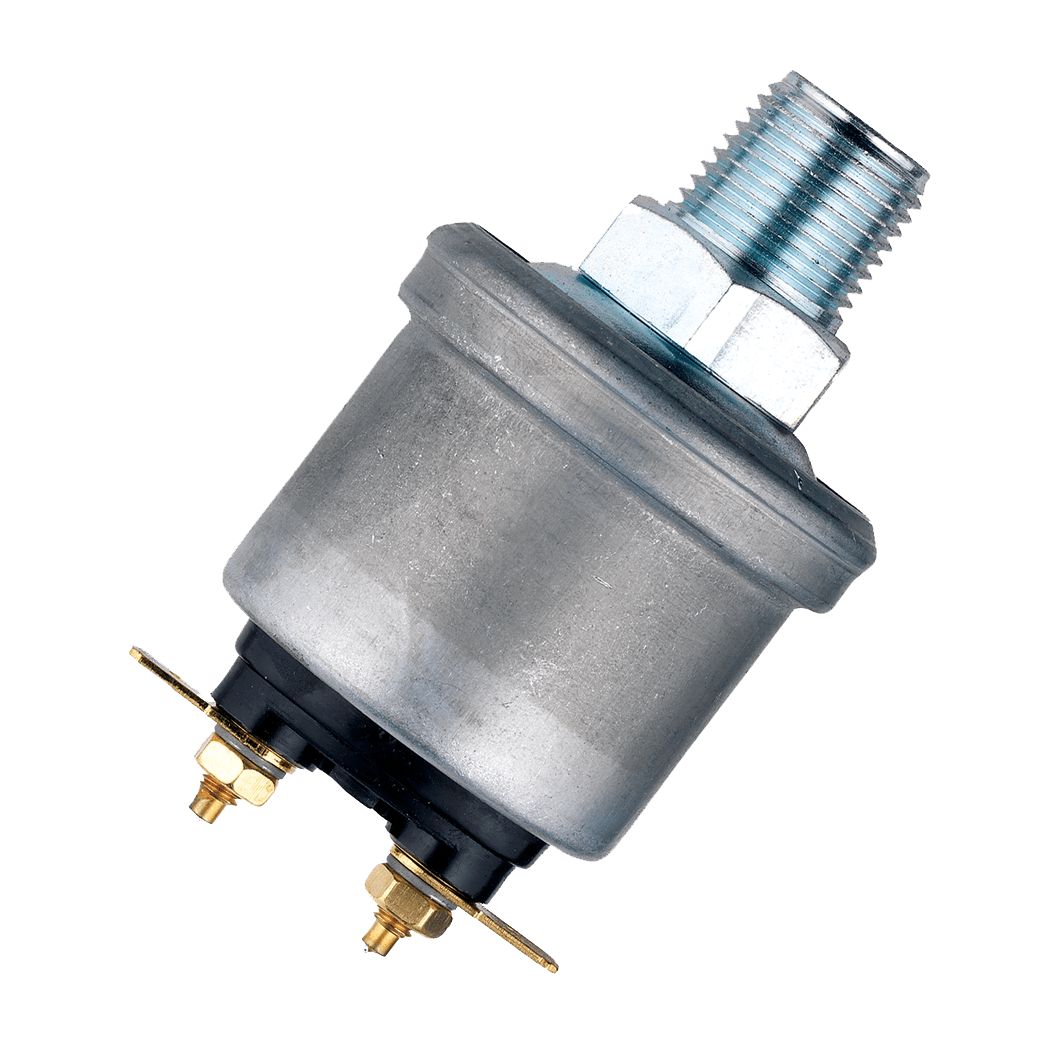

80 psi (5 bar) VDO Oil Press. Sender - 1/8-27 NPTF Thread, 29/4 ID Stamp, 10 - 180 Ohm, Standard Ground

These pressure sensors/senders are designed to work with VDO gauges ONLY. The sensor transmits a signal to a gauge to make it read a value.

• These senders are for single station installations only (1 sender for 1 gauge)
• Senders are matched to gauges according to the maximum reading on dial face.
• Note - NPTF = NPT Fine
• A "B" in the part number refers to packaging and can be ignored
• "ID Stamp" (Component Reference #) is a short-hand sender identification code stamped onto the hex nut on the sender
• Standard Ground = sender is grounded by being screwed into the engine block
• Floating Ground = sender has an isolated terminal for a ground wire to be led to a common ground
• As noted in the Spec Table, some gauges have a separate contact for a warning indicator activation at a specified pressure

Please note: VDO senders have tapered threads (except as noted) and DO NOT require the use of Teflon® tape or pipe sealant. This will interfere with grounding causing incorrect instrument readings.

Click here for additional information and technical data about this product.
