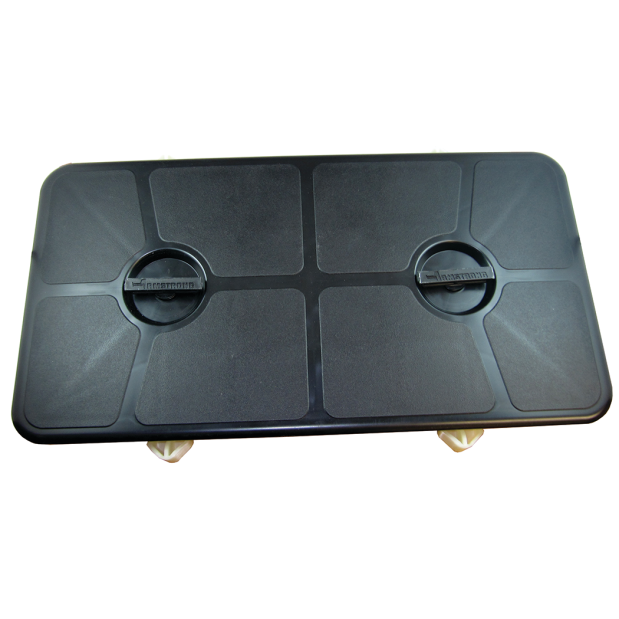

11-1/4INX21-1/4IN OD DECK PLATE BLACK
Armstrong Rectangular Watertight Deck Plates
Share THIS PAGE:

Rectangular Watertight Access Hatch - 11" x 21"

Perfect for Fiberglass and Aluminum Boats

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Completely seals against water intrusion.
The Armstrong Watertight Compression Deck Plate offers the boat manufacturer an alternative to the industry's standard access hatch cover.
The Compression Deck Plate reduces boat manufacturing costs by replacing plastic screw or snap-in deckplates with a stronger, better looking access cover.
Compression design means there is no trim ring to install — no drilling, screwing or sealing.

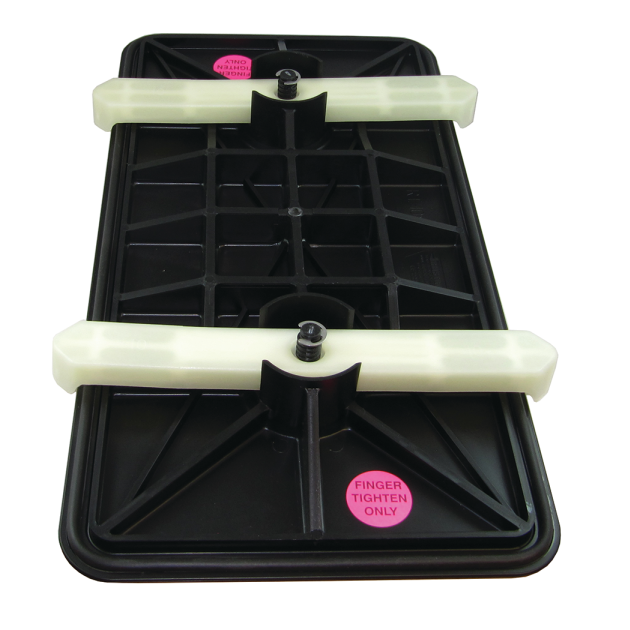

The deckplate consists of the top plate, with its integrated gasket, a compression bar that tilts in behind the mounting surface, and a compression screw that makes the seal — all integrated into one unit.
Completely watertight; patented design loads the deck plate at the center for a tight, uniform seal — reduces warranty claims and replacements seen with other designs.
Easy to install; simple to use — cut the hole, slip the Deck Plate in place, and tighten the "T" handle by hand (a flange centers the deckplate in the hole).

• 10" x 20" cut-out hole; overall dimensions: 11-1/4" x 21-1/4"
• Easy, tool-free installation
• Easy to use — a turn of the T-handle releases or secures the deck plate
• Won't pop out when hull flexes
• Deck plate and compression fittings are constructed of two different, function-specific, UV stabilized polypropylene alloys
• Available in round and rectangular models
• Rectangular deck plates and cutouts have radiused corners

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDArmstrong#AvailabilityDescriptionUOMYour PriceQTY
202473ARM DP-10X20/BLACK DP-10X20/BLACKLoading...11.25" x 21.25" Rectangular Watertight Compression Access Hatch - BlackLoading...
202475ARM DP-10X20/CREAM DP-10X20/CREAMLoading...11.25" x 21.25" Rectangular Watertight Compression Access Hatch - CreamLoading...
202474ARM DP-10X20/WHITE DP-10X20/WHITELoading...11.25" x 21.25" Rectangular Watertight Compression Access Hatch - WhiteLoading...
Add To Cart
