- Stainless Steel
- Oil impreganted bushing
Description
• Materials: SUS304, Sheave: SCS13 (equivalent to SUS304)
• Oil impregnated bush : bronze
• Safety working load is set variously for each country.
• Blocks safe working load is calculated from 1/8 to 1/10 of their breaking load.

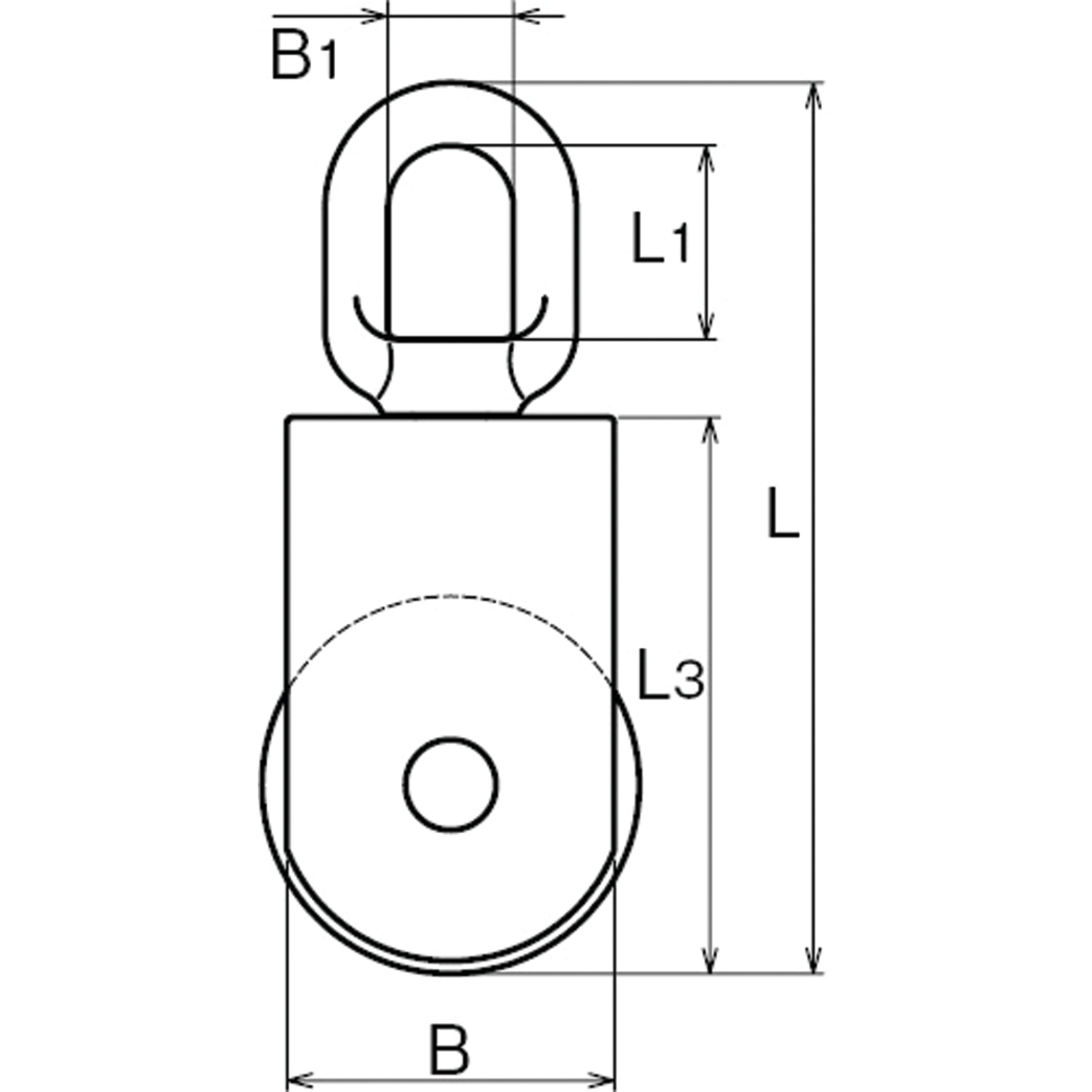

Specifications
MFG #:AK10031
Sheave Dia.
75 mm
Max Rope Dia.
16 mm
d
14.5 mm
L
189 mm
L1
38 mm
L2
104 mm
L3
110 mm
D1
59 mm
B
65 mm
B1
19 mm
t
24 mm
t1
33 mm
WL
550 kg
Weight
1.07 kg
